Parker Quick Couplings and Accessories
Parker Quick Couplings

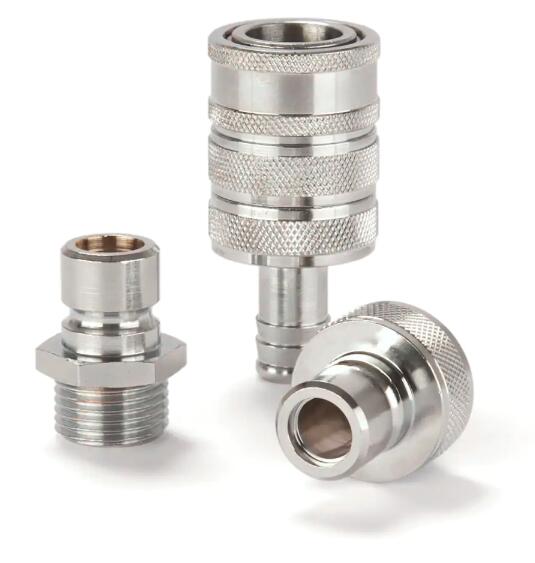

Quick Coupling with Parker own Profile, Series 42
Quick coupling system with nominal diameter 11 for pneumatic and fluid handling applications up to 35 bar. Straight-Through Coupling System with Parker own profile. Available made of brass.
Parker's Quick Coupling Series 42 is a corrosion resistant brass coupling without valve for applications with liquids in the pressure range up to 35 bar. Series 42 stands out for a high flow with minimal pressure drop.
Quick Coupling with Parker own Profile, Series 42
Markets:
- Machinery Construction
Features/Benefits:
- Corrosion resistant
- High flow with minimal pressure drop
Applications:
- High flow water applications
Technical Specifications
| Minimum Operating Temperature: |
-20 °C |
| Diameter: |
Nominal: 11 mm |
| Application: |
Pneumatic |
| Brand: |
Rectus |
| Fitting Connection Type: |
Female Thread, Male Thread, Hose Barb |
| Interchange Type: |
Rectus Profile |
| Maximum Operating Pressure: |
500 psi, 35 bar |
| Maximum Operating Temperature: |
212 °F, 100 °C |
| Media: |
Pneumatic Media |
| Valve Type: |
Poppet |
| Valve Included: |
No |
| Version: |
Straight-Through |
| Length: |
31,5 to 49 mm |
| Hex Size: |
24 to 32 mm |
| Outside Diameter: |
15 to 32 mm |
| Materials of Construction: |
Brass |
| Seal Material: |
NBR |
| Flow Rate: |
141 L/min |
