Parker Quick Couplings

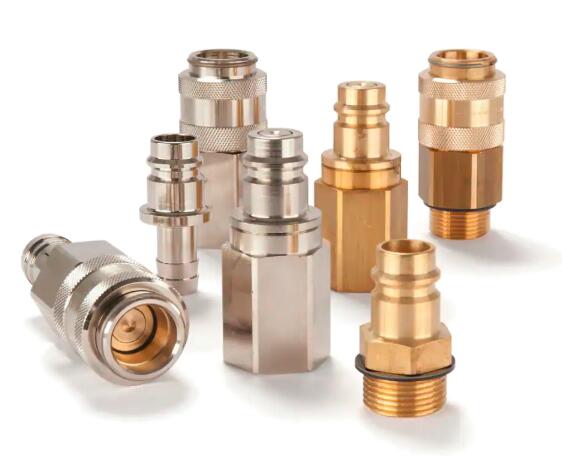

Quick Coupling with Parker own Profile, Series 39
Quick coupling system with nominal diameter 19 for pneumatic and fluid handling applications up to 35 bar. Coupling system with Parker own profile. Available made of brass.
Parker's Series 39 is a compact industrial coupling system made of brass for use with numerous gaseous and liquid media. The UltraFlo valve guarantees optimum flow and low pressure drop.
Quick Coupling with Parker own Profile, Series 39
Markets:
- Machinery Construction
- Mobile Hydraulics
- Industrial
- Material Handling
Features/Benefits:
- UltraFlo valve for optimum flow and low pressure drop
- Single-hand operation for easy and fast connection
Applications:
- Pneumatic Power Tools
- Assembly Lines
- Air compressors
- Fluid Transfer
- Laboratory Gas Supply
- Cooling of Electronic Components
- Food and chemical processing
- Water and coolant lines
Technical Specifications
| Minimum Operating Temperature: |
-20 °C |
| Diameter: |
Nominal: 19 mm |
| Application: |
Pneumatic & Fluid Handling |
| Brand: |
Rectus |
| Fitting Connection Type: |
Female Thread, Male Thread, Hose Barb |
| Interchange Type: |
Rectus Profile |
| Materials of Construction: |
Brass |
| Maximum Operating Pressure: |
500 psi, 35 bar |
| Maximum Operating Temperature: |
212 °F, 100 °C |
| Media: |
Gases, Pneumatic Media, Steam, Water |
| Valve Type: |
High Flow Air, Poppet |
| Seal Material: |
NBR |
| Valve Included: |
Yes or No acc. to the version |
| Length: |
58 up to 125 mm |
| Hex Size: |
30 up to 50 mm |
| Outside Diameter: |
35 to 46 mm |
| Flow Rate: |
3000 to 9000 L/min |
Quick Coupling with Parker own Profile, Series 39 型號
| Part |
Type |
Version |
Connection Type |
Connection Thread Size (inch) |
Hose I.D. |
Material |
| 39KBAW26MPN |
Coupling |
Double Shut-Off |
Male Thread - parallel |
3/4 |
na |
Brass nickel plated |
| 39KBAW26MPX |
Coupling |
Double Shut-Off |
Male Thread - parallel |
3/4 |
na |
Brass |
| 39KBAW33MPN |
Coupling |
Double Shut-Off |
Male Thread - parallel |
1 |
na |
Brass nickel plated |
| 39KBAW33MPX |
Coupling |
Double Shut-Off |
Male Thread - parallel |
1 |
na |
Brass |
| 39KBAW42MPN |
Coupling |
Double Shut-Off |
Male Thread - parallel |
1 1/4 |
na |
Brass nickel plated |
| 39KBAW42MPX |
Coupling |
Double Shut-Off |
Male Thread - parallel |
1 1/4 |
na |
Brass |
| 39KBIW26MPN |
Coupling |
Double Shut-Off |
Female Thread - parallel |
3/4 |
na |
Brass nickel plated |
| 39KBIW26MPX |
Coupling |
Double Shut-Off |
Female Thread - parallel |
3/4 |
na |
Brass |
| 39KBIW33MPN |
Coupling |
Double Shut-Off |
Female Thread - parallel |
1 |
na |
Brass nickel plated |
| 39KBIW33MPX |
Coupling |
Double Shut-Off |
Female Thread - parallel |
1 |
na |
Brass |
| 39KBIW42MPN |
Coupling |
Double Shut-Off |
Female Thread - parallel |
1 1/4 |
na |
Brass nickel plated |
| 39KBIW42MPX |
Coupling |
Double Shut-Off |
Female Thread - parallel |
1 1/4 |
na |
Brass |
| 39KBTF19MPN |
Coupling |
Double Shut-Off |
Hose Barb |
na |
19 |
Brass nickel plated |
| 39KBTF19MPX |
Coupling |
Double Shut-Off |
Hose Barb |
na |
19 |
Brass |
| 39KBTF25MPN |
Coupling |
Double Shut-Off |
Hose Barb |
na |
25 |
Brass nickel plated |
| 39KBTF25MPX |
Coupling |
Double Shut-Off |
Hose Barb |
na |
25 |
Brass |
| 39KLAW26MPN |
Coupling |
Flat-sealing |
Male Thread - parallel |
3/4 |
na |
Brass nickel plated |
| 39KLAW26MPX |
Coupling |
Flat-sealing |
Male Thread - parallel |
3/4 |
na |
Brass |
| 39KLAW33MPN |
Coupling |
Flat-sealing |
Male Thread - parallel |
1 |
na |
Brass nickel plated |
| 39KLAW33MPX |
Coupling |
Flat-sealing |
Male Thread - parallel |
1 |
na |
Brass |
| 39KLAW42MPN |
Coupling |
Flat-sealing |
Male Thread - parallel |
1 1/4 |
na |
Brass nickel plated |
| 39KLAW42MPX |
Coupling |
Flat-sealing |
Male Thread - parallel |
1 1/4 |
na |
Brass |
| 39KLIW26MPN |
Coupling |
Flat-sealing |
Female Thread - parallel |
3/4 |
na |
Brass nickel plated |
| 39KLIW26MPX |
Coupling |
Flat-sealing |
Female Thread - parallel |
3/4 |
na |
Brass |
| 39KLIW33MPN |
Coupling |
Flat-sealing |
Female Thread - parallel |
1 |
na |
Brass nickel plated |
| 39KLIW33MPX |
Coupling |
Flat-sealing |
Female Thread - parallel |
1 |
na |
Brass |
| 39KLIW42MPN |
Coupling |
Flat-sealing |
Female Thread - parallel |
1 1/4 |
na |
Brass nickel plated |
| 39KLIW42MPX |
Coupling |
Flat-sealing |
Female Thread - parallel |
1 1/4 |
na |
Brass |
| 39KLTF19MPN |
Coupling |
Flat-sealing |
Hose Barb |
na |
19 |
Brass nickel plated |
| 39KLTF19MPX |
Coupling |
Flat-sealing |
Hose Barb |
na |
19 |
Brass |
| 39KLTF25MPN |
Coupling |
Flat-sealing |
Hose Barb |
na |
25 |
Brass nickel plated |
| 39KLTF25MPX |
Coupling |
Flat-sealing |
Hose Barb |
na |
25 |
Brass |
| 39SBAW26MPN |
Plug |
Double Shut-Off |
Male Thread - parallel |
3/4 |
na |
Brass nickel plated |
| 39SBAW26MPX |
Plug |
Double Shut-Off |
Male Thread - parallel |
3/4 |
na |
Brass |
| 39SBAW33MPN |
Plug |
Double Shut-Off |
Male Thread - parallel |
1 |
na |
Brass nickel plated |
| 39SBAW33MPX |
Plug |
Double Shut-Off |
Male Thread - parallel |
1 |
na |
Brass |
| 39SBAW42MPN |
Plug |
Double Shut-Off |
Male Thread - parallel |
1 1/4 |
na |
Brass nickel plated |
| 39SBAW42MPX |
Plug |
Double Shut-Off |
Male Thread - parallel |
1 1/4 |
na |
Brass |
| 39SBIW26MPN |
Plug |
Double Shut-Off |
Female Thread - parallel |
3/4 |
na |
Brass nickel plated |
| 39SBIW26MPX |
Plug |
Double Shut-Off |
Female Thread - parallel |
3/4 |
na |
Brass |
| 39SBIW33MPN |
Plug |
Double Shut-Off |
Female Thread - parallel |
1 |
na |
Brass nickel plated |
| 39SBIW33MPX |
Plug |
Double Shut-Off |
Female Thread - parallel |
1 |
na |
Brass |
| 39SBIW42MPN |
Plug |
Double Shut-Off |
Female Thread - parallel |
1 1/4 |
na |
Brass nickel plated |
| 39SBIW42MPX |
Plug |
Double Shut-Off |
Female Thread - parallel |
1 1/4 |
na |
Brass |
| 39SBTF19MPN |
Plug |
Double Shut-Off |
Hose Barb |
na |
19 |
Brass nickel plated |
| 39SBTF19MPX |
Plug |
Double Shut-Off |
Hose Barb |
na |
19 |
Brass |
| 39SBTF25MPN |
Plug |
Double Shut-Off |
Hose Barb |
na |
25 |
Brass nickel plated |
| 39SBTF25MPX |
Plug |
Double Shut-Off |
Hose Barb |
na |
25 |
Brass |
| 39SFAW26MXN |
Plug |
Single Shut-Off |
Male Thread - parallel |
3/4 |
na |
Brass nickel plated |
| 39SFAW26MXX |
Plug |
Single Shut-Off |
Male Thread - parallel |
3/4 |
na |
Brass |
| 39SFAW33MXN |
Plug |
Single Shut-Off |
Male Thread - parallel |
1 |
na |
Brass nickel plated |
| 39SFAW33MXX |
Plug |
Single Shut-Off |
Male Thread - parallel |
1 |
na |
Brass |
| 39SFAW42MXN |
Plug |
Single Shut-Off |
Male Thread - parallel |
1 1/4 |
na |
Brass nickel plated |
| 39SFAW42MXX |
Plug |
Single Shut-Off |
Male Thread - parallel |
1 1/4 |
na |
Brass |
| 39SFIW26MXN |
Plug |
Single Shut-Off |
Female Thread - parallel |
3/4 |
na |
Brass nickel plated |
| 39SFIW26MXX |
Plug |
Single Shut-Off |
Female Thread - parallel |
3/4 |
na |
Brass |
| 39SFIW33MXN |
Plug |
Single Shut-Off |
Female Thread - parallel |
1 |
na |
Brass nickel plated |
| 39SFIW33MXX |
Plug |
Single Shut-Off |
Female Thread - parallel |
1 |
na |
Brass |
| 39SFIW42MXN |
Plug |
Single Shut-Off |
Female Thread - parallel |
1 1/4 |
na |
Brass nickel plated |
| 39SFIW42MXX |
Plug |
Single Shut-Off |
Female Thread - parallel |
1 1/4 |
na |
Brass |
| 39SFTF19MXN |
Plug |
Single Shut-Off |
Hose Barb |
na |
19 |
Brass nickel plated |
| 39SFTF19MXX |
Plug |
Single Shut-Off |
Hose Barb |
na |
19 |
Brass |
| 39SFTF25MXN |
Plug |
Single Shut-Off |
Hose Barb |
na |
25 |
Brass nickel plated |
| 39SFTF25MXX |
Plug |
Single Shut-Off |
Hose Barb |
na |
25 |
Brass |
|
