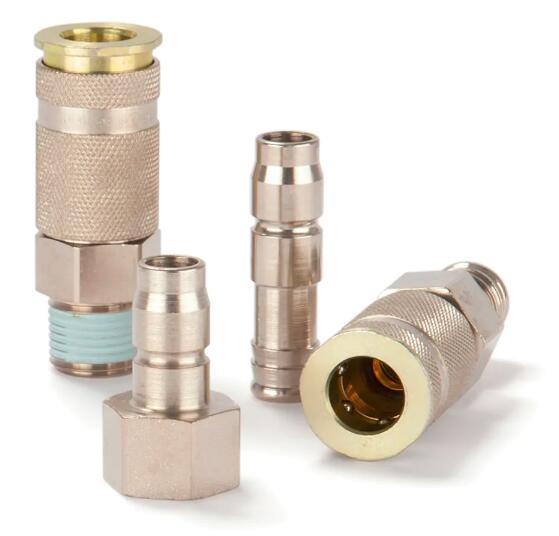

Quick Coupling with Atlas Copco Profile, Series 34
Quick coupling system with nominal diameter 10 for pneumatic and fluid handling applications up to 35 bar. Coupling system with Atlas Copco profile. Available made of brass/steel.
Parker's Series 34 is an industrial coupling with Atlas Copco-Profile.
This coupling system is developed for single-hand operation. The UltraFlo valve guarantees optimum flow and low pressure drop. Series 34 is optimal for use with large pneumatic consumers due to the robust design and steel sleeve. The collar design minimizes damage to the valve body.
Quick Coupling with Atlas Copco Profile, Series 34
Markets:
- Machinery Construction
- Automotive
Features/Benefits:
- UltraFlo valve for optimum flow and low pressure drop
- Single-hand operation for easy and fast connection
Applications:
- Pneumatic Power Tools
- Assembly Lines
- Air compressors
Technical Specifications
| Minimum Operating Temperature: |
-20 °C |
| Diameter: |
Nominal: 10 mm |
| Application: |
Pneumatic & Fluid Handling |
| Brand: |
Rectus |
| Fitting Connection Type: |
Female Thread, Male Thread |
| Interchange Type: |
Atlas Copco |
| Maximum Operating Pressure: |
500 psi, 35 bar |
| Maximum Operating Temperature: |
212 °F, 100 °C |
| Media: |
Pneumatic Media |
| Valve Type: |
High Flow Air, Poppet |
| Seal Material: |
NBR |
| Valve Included: |
Yes or No acc. to the version |
| Version: |
Single Shut-Off |
| Length: |
40 to 84 mm |
| Hex Size: |
17 to 27 mm |
| Outside Diameter: |
15 to 28 mm |
| Materials of Construction: |
Brass, Steel |
| Flow Rate: |
2550 L/min |
Quick Coupling with Atlas Copco Profile, Series 34 型號
|
