Parker Quick Couplings

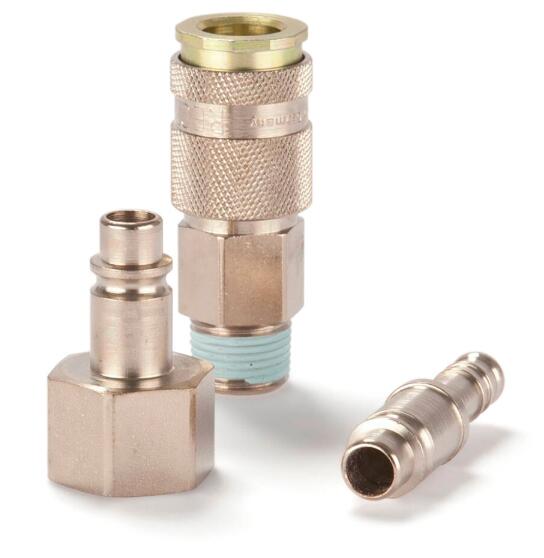

Quick Coupling with Atlas Copco Profile, Series 33
Quick coupling system with nominal diameter 8 for pneumatic and fluid handling applications up to 35 bar. Coupling system with Atlas Copco profile. Available made of brass/steel.
Parker's Series 33 is a steel industrial coupling with Atlas Copco-Profile. It is especially suited to use with gaseous media in industry.
This coupling system is developed for single-hand operation. The UltraFlo valve guarantees optimum flow and low pressure drop.
Quick Coupling with Atlas Copco Profile, Series 33
Markets:
- Machinery Construction
- Automotive
Features/Benefits:
- UltraFlo valve for optimum flow and low pressure drop
- Single-hand operation for easy and fast connection
Applications:
- Pneumatic Power Tools
- Assembly Lines
- Air compressors
Technical Specifications
| Minimum Operating Temperature: |
-20 °C |
| Diameter: |
Nominal: 8.0 mm |
| Application: |
Pneumatic & Fluid Handling |
| Brand: |
Rectus |
| Fitting Connection Type: |
Female Thread, Male Thread, Hose Barb |
| Interchange Type: |
Atlas Copco |
| Maximum Operating Pressure: |
500 psi, 35 bar |
| Maximum Operating Temperature: |
212 °F, 100 °C |
| Media: |
Pneumatic Media |
| Valve Type: |
High Flow Air, Poppet |
| Seal Material: |
NBR |
| Valve Included: |
Yes or No acc. to the version |
| Version: |
Single Shut-Off |
| Length: |
34 up to 73 mm |
| Hex Size: |
14 up to 24 mm |
| Outside Diameter: |
14 to 23 mm |
| Materials of Construction: |
Steel |
| Flow Rate: |
1400 L/min |
Quick Coupling with Atlas Copco Profile, Series 33 型號(hào)
|
