Parker Quick Couplings

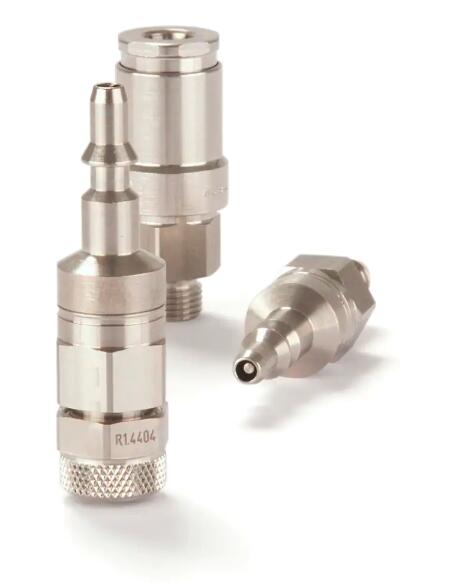

Quick Coupling with ISO 6150 C Profile, Series 303
Quick coupling system with nominal diameter 3 for pneumatic and fluid handling applications up to 35 bar. Coupling system with ISO 6150 C profile. Available made of stainless steel.
Parker's Series 303 is a mini industrial coupling with a plug profile according to ISO 6150 C. It is a popular profile in analytical and medical technology. Series 303 stands out for its above average flow rate performance for liquid and gaseous media.
Quick Coupling with ISO 6150 C Profile, Series 303
Markets:
- Machinery Construction
- Life Science
- Process
- Food & Beverage
Features/Benefits:
- Coupling system according to ISO 6150 C
- Above average flow rate
Applications:
- Food and chemical processing
- Labatory equipment
- Cleaning equipment
- Steam and some gases
- Pneumatic break systems
Technical Specifications
| Minimum Operating Temperature: |
-15 °C |
| Diameter: |
Nominal: 3 mm |
| Application: |
Pneumatic & Fluid Handling |
| Brand: |
Rectus |
| Fitting Connection Type: |
Female Thread, Male Thread, Hose Barb |
| Interchange Type: |
ISO 6150 C |
| Maximum Operating Pressure: |
500 psi, 35 bar |
| Maximum Operating Temperature: |
392 °F, 200 °C |
| Media: |
Pneumatic Media, Water |
| Valve Type: |
Poppet |
| Valve Included: |
Yes |
| Version: |
Double Shut-Off |
| Length: |
43 to 58,5 mm |
| Hex Size: |
14 to 17 mm |
| Outside Diameter: |
18 mm |
| Materials of Construction: |
Stainless Steel |
| Seal Material: |
FKM |
| Flow Rate: |
160 L/min |
Quick Coupling with ISO 6150 C Profile, Series 303 型號
|
