Parker Quick Couplings

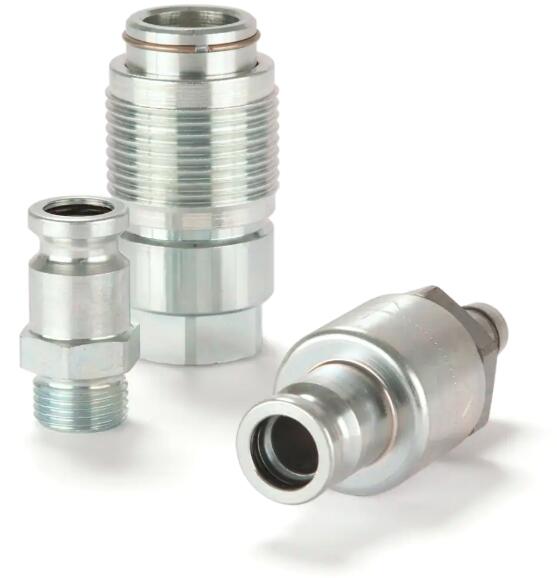

Quick Coupling with Parker own Profile, Series 29
Quick coupling system with nominal diameter 13 for pneumatic and fluid handling applications up to 35 bar. Coupling system with Parker own profile. Available made of Steel zinc plated.
Parker's Series 29 is a robust coupling system made of steel, which is particularly suited to use in the construction industry and mining.
This coupling system is developed for single-hand operation. The UltraFlo valve guarantees optimum flow and low pressure drop.
Quick Coupling with Parker own Profile, Series 29
Markets:
- Machinery Construction
- Rescue Equipment
- Aerospace
- Mobile Hydraulics
Features/Benefits:
- UltraFlo valve for optimum flow and low pressure drop
- Single-hand operation for easy and fast connection
Applications:
- Construction
- Mining
Technical Specifications
| Minimum Operating Temperature: |
-20 °C |
| Diameter: |
Nominal: 13 mm |
| Application: |
Pneumatic & Fluid Handling |
| Brand: |
Rectus |
| Fitting Connection Type: |
Female Thread, Male Thread, Hose Barb |
| Interchange Type: |
Rectus Profile |
| Maximum Operating Pressure: |
500 psi, 35 bar |
| Maximum Operating Temperature: |
212 °F, 100 °C |
| Media: |
Pneumatic Media |
| Valve Type: |
Poppet |
| Valve Included: |
Yes or No acc. to the version |
| Version: |
Single Shut-Off |
| Length: |
44 to 101 mm |
| Hex Size: |
24 to 32 mm |
| Outside Diameter: |
22 to 40 mm |
| Materials of Construction: |
Steel |
| Seal Material: |
NBR |
| Flow Rate: |
2550 L/min |
Quick Coupling with Parker own Profile, Series 29 型號
|
