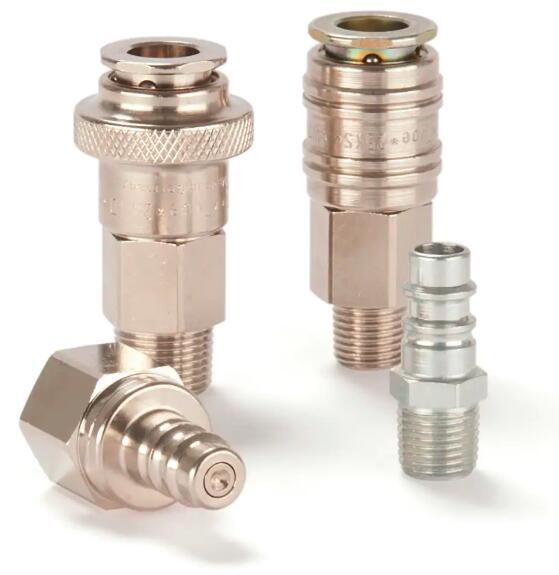

Premium Safety Quick Coupling with Parker Profile and Additional Safety Locking, Series 25
Premium safety quick coupling system with nominal diameter 7.8 for pneumatic and fluid handling applications in the rescue market up to 35 bar. Coupling system with Parker profile. Available made of brass/steel.
Parker's Premium Safety Quick Coupling Series 25 with UltaFlo valve for optimum flow and low pressure drop. The series stands out for its robust design (steel sleeve) and long service life even with the harshest use. The coupling series is equipped with an additional safety locking system which prevents unintentional disconnection. To disconnect, the plug must first be pushed further into the coupling before it can be unlocked. The brass version has been developed specifically for use with water in the pressure range up to 35 bar.
Premium Safety Quick Coupling with Parker Profile and Additional Safety Locking, Series 25
Markets:
- Machinery Construction
- Life Science
- Process
- Rescue Equipment
- Aerospace
Features/Benefits:
- UltaFlo valve for optimum flow and low pressure drop
- Additional safety locking system to prevent unintentional disconnection
- Double-Shut off version with handy sleeve for optimum operation even with gloves
Applications:
- Rescue Applications
- Breathing Air
Technical Specifications
| Minimum Operating Temperature: |
-20 °C |
| Diameter: |
Nominal: 7.8 mm |
| Application: |
Rescue |
| Brand: |
Rectus |
| Fitting Connection Type: |
Female Thread, Male Thread, Hose Barb |
| Interchange Type: |
Rectus Profile |
| Materials of Construction: |
Brass, Brass / Steel |
| Maximum Operating Pressure: |
500 psi, 35 bar |
| Maximum Operating Temperature: |
212 °F, 100 °C |
| Media: |
Gases, Pneumatic Media, Water |
| Valve Type: |
Poppet |
| Seal Material: |
NBR |
| Valve Included: |
Yes or No acc. to the version |
| Length: |
33 up to 74 mm |
| Hex Size: |
13 up to 22 mm |
| Outside Diameter: |
12 up to 30 mm |
| Flow Rate: |
710 to 1800 L/min |
Premium Safety Quick Coupling with Parker Profile and Additional Safety Locking, Series 25 型號(hào)
| Part |
Type |
Version |
Connection Type |
Connection Thread Size (inch) |
Hose I.D. |
Material |
| 25KDAK13BPN |
Coupling - Safety |
Double Shut-Off |
Male Thread - tapered |
1/4 |
na |
Brass nickel plated |
| 25KDAK17BPN |
Coupling - Safety |
Double Shut-Off |
Male Thread - tapered |
3/8 |
na |
Brass nickel plated |
| 25KDAK21BPN |
Coupling - Safety |
Double Shut-Off |
Male Thread - tapered |
1/2 |
na |
Brass nickel plated |
| 25KDIW13BPN |
Coupling - Safety |
Double Shut-Off |
Female Thread - parallel |
1/4 |
na |
Brass nickel plated |
| 25KDIW17BPN |
Coupling - Safety |
Double Shut-Off |
Female Thread - parallel |
3/8 |
na |
Brass nickel plated |
| 25KDIW21BPN |
Coupling - Safety |
Double Shut-Off |
Female Thread - parallel |
1/2 |
na |
Brass nickel plated |
| 25KDTF06BPN |
Coupling - Safety |
Double Shut-Off |
Hose Barb |
na |
6 |
Brass nickel plated |
| 25KDTF08BPN |
Coupling - Safety |
Double Shut-Off |
Hose Barb |
na |
8 |
Brass nickel plated |
| 25KDTF09BPN |
Coupling - Safety |
Double Shut-Off |
Hose Barb |
na |
9 |
Brass nickel plated |
| 25KDTF10BPN |
Coupling - Safety |
Double Shut-Off |
Hose Barb |
na |
10 |
Brass nickel plated |
| 25KDTF13BPN |
Coupling - Safety |
Double Shut-Off |
Hose Barb |
na |
13 |
Brass nickel plated |
| 25KSAK13BPN |
Coupling - Safety |
Single Shut-Off |
Male Thread - tapered |
1/4 |
na |
Brass nickel plated |
| 25KSAK13BPX |
Coupling - Safety |
Single Shut-Off |
Male Thread - tapered |
1/4 |
na |
Brass |
| 25KSAK13SPN |
Coupling - Safety |
Single Shut-Off |
Male Thread - tapered |
1/4 |
na |
Steel nickel plated |
| 25KSAK17BPN |
Coupling - Safety |
Single Shut-Off |
Male Thread - tapered |
3/8 |
na |
Brass nickel plated |
| 25KSAK17BPX |
Coupling - Safety |
Single Shut-Off |
Male Thread - tapered |
3/8 |
na |
Brass |
| 25KSAK17SPN |
Coupling - Safety |
Single Shut-Off |
Male Thread - tapered |
3/8 |
na |
Steel nickel plated |
| 25KSAK21BPN |
Coupling - Safety |
Single Shut-Off |
Male Thread - tapered |
1/2 |
na |
Brass nickel plated |
| 25KSAK21BPX |
Coupling - Safety |
Single Shut-Off |
Male Thread - tapered |
1/2 |
na |
Brass |
| 25KSAK21SPN |
Coupling - Safety |
Single Shut-Off |
Male Thread - tapered |
1/2 |
na |
Steel nickel plated |
| 25KSIW13BPN |
Coupling - Safety |
Single Shut-Off |
Female Thread - parallel |
1/4 |
na |
Brass nickel plated |
| 25KSIW13BPX |
Coupling - Safety |
Single Shut-Off |
Female Thread - parallel |
1/4 |
na |
Brass |
| 25KSIW13SPN |
Coupling - Safety |
Single Shut-Off |
Female Thread - parallel |
1/4 |
na |
Steel nickel plated |
| 25KSIW17BPN |
Coupling - Safety |
Single Shut-Off |
Female Thread - parallel |
3/8 |
na |
Brass nickel plated |
| 25KSIW17BPX |
Coupling - Safety |
Single Shut-Off |
Female Thread - parallel |
3/8 |
na |
Brass |
| 25KSIW17SPN |
Coupling - Safety |
Single Shut-Off |
Female Thread - parallel |
3/8 |
na |
Steel nickel plated |
| 25KSIW21SPN |
Coupling - Safety |
Single Shut-Off |
Female Thread - parallel |
1/2 |
na |
Steel nickel plated |
| 25KSTF06SPN |
Coupling - Safety |
Single Shut-Off |
Hose Barb |
na |
6 |
Steel nickel plated |
| 25KSTF08BPN |
Coupling - Safety |
Single Shut-Off |
Hose Barb |
na |
8 |
Brass nickel plated |
| 25KSTF08BPX |
Coupling - Safety |
Single Shut-Off |
Hose Barb |
na |
8 |
Brass |
| 25KSTF08SPN |
Coupling - Safety |
Single Shut-Off |
Hose Barb |
na |
8 |
Steel nickel plated |
| 25KSTF09BPN |
Coupling - Safety |
Single Shut-Off |
Hose Barb |
na |
9 |
Brass nickel plated |
| 25KSTF09BPX |
Coupling - Safety |
Single Shut-Off |
Hose Barb |
na |
9 |
Brass |
| 25KSTF09SPN |
Coupling - Safety |
Single Shut-Off |
Hose Barb |
na |
9 |
Steel nickel plated |
| 25KSTF10BPN |
Coupling - Safety |
Single Shut-Off |
Hose Barb |
na |
10 |
Brass nickel plated |
| 25KSTF10BPX |
Coupling - Safety |
Single Shut-Off |
Hose Barb |
na |
10 |
Brass |
| 25KSTF10SPN |
Coupling - Safety |
Single Shut-Off |
Hose Barb |
na |
10 |
Steel nickel plated |
| 25KSTF13BPN |
Coupling - Safety |
Single Shut-Off |
Hose Barb |
na |
13 |
Brass nickel plated |
| 25KSTF13BPX |
Coupling - Safety |
Single Shut-Off |
Hose Barb |
na |
13 |
Brass |
| 25KSTF13SPN |
Coupling - Safety |
Single Shut-Off |
Hose Barb |
na |
13 |
Steel nickel plated |
| 25SDAW13MPN |
Plug - Safety |
Double Shut-Off |
Male Thread - parallel |
1/4 |
na |
Brass nickel plated |
| 25SDAW17MPN |
Plug - Safety |
Double Shut-Off |
Male Thread - parallel |
3/8 |
na |
Brass nickel plated |
| 25SDAW21MPN |
Plug - Safety |
Double Shut-Off |
Male Thread - parallel |
1/2 |
na |
Brass nickel plated |
| 25SDIW13MPN |
Plug - Safety |
Double Shut-Off |
Female Thread - parallel |
1/4 |
na |
Brass nickel plated |
| 25SDIW17MPN |
Plug - Safety |
Double Shut-Off |
Female Thread - parallel |
3/8 |
na |
Brass nickel plated |
| 25SDIW21MPN |
Plug - Safety |
Double Shut-Off |
Female Thread - parallel |
1/2 |
na |
Brass nickel plated |
| 25SDTF06MPN |
Plug - Safety |
Double Shut-Off |
Hose Barb |
na |
6 |
Brass nickel plated |
| 25SDTF08MPN |
Plug - Safety |
Double Shut-Off |
Hose Barb |
na |
8 |
Brass nickel plated |
| 25SDTF09MPN |
Plug - Safety |
Double Shut-Off |
Hose Barb |
na |
9 |
Brass nickel plated |
| 25SDTF10MPN |
Plug - Safety |
Double Shut-Off |
Hose Barb |
na |
10 |
Brass nickel plated |
| 25SDTF13MPN |
Plug - Safety |
Double Shut-Off |
Hose Barb |
na |
13 |
Brass nickel plated |
| 25SSAK10SXZ |
Plug - Safety |
Single Shut-Off |
Male Thread - tapered |
1/8 |
na |
Steel zinc plated |
| 25SSAK13SXZ |
Plug - Safety |
Single Shut-Off |
Male Thread - tapered |
1/4 |
na |
Steel zinc plated |
| 25SSAK17SXZ |
Plug - Safety |
Single Shut-Off |
Male Thread - tapered |
3/8 |
na |
Steel zinc plated |
| 25SSAK21SXZ |
Plug - Safety |
Single Shut-Off |
Male Thread - tapered |
1/2 |
na |
Steel zinc plated |
| 25SSIW13SXZ |
Plug - Safety |
Single Shut-Off |
Female Thread - parallel |
1/4 |
na |
Steel zinc plated |
| 25SSIW17SXZ |
Plug - Safety |
Single Shut-Off |
Female Thread - parallel |
3/8 |
na |
Steel zinc plated |
| 25SSIW21SXZ |
Plug - Safety |
Single Shut-Off |
Female Thread - parallel |
1/2 |
na |
Steel zinc plated |
| 25SSTF06SXZ |
Plug - Safety |
Single Shut-Off |
Hose Barb |
na |
6 |
Steel zinc plated |
| 25SSTF08SXZ |
Plug - Safety |
Single Shut-Off |
Hose Barb |
na |
8 |
Steel zinc plated |
| 25SSTF09SXZ |
Plug - Safety |
Single Shut-Off |
Hose Barb |
na |
9 |
Steel zinc plated |
| 25SSTF10SXZ |
Plug - Safety |
Single Shut-Off |
Hose Barb |
na |
10 |
Steel zinc plated |
| 25SSTF13SXZ |
Plug - Safety |
Single Shut-Off |
Hose Barb |
na |
13 |
Steel zinc plated |
| 26SSAW13MXN |
Plug - Safety |
Single Shut-Off |
Male Thread - parallel |
1/4 |
na |
Brass nickel plated |
|
