Parker Quick Couplings and Accessories
Parker Quick Couplings

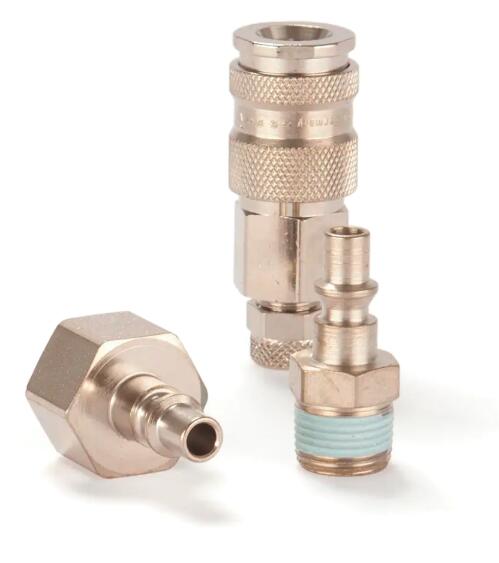

Premium Quick Coupling with ARO Profile, Series 22
Premium quick coupling system with nominal diameter 5.5 for pneumatic and fluid handling applications up to 35 bar. Coupling system with ARO profile. Available made of brass/steel.
Parker's Premium Quick Coupling Series 22 is a coupling system with ARO profile which is most common in Benelux countries, Switzerland as well as in South Africa. The series 22 is developed for single-hand operation. The UltraFlo valve guarantees optimum flow and low pressure drop. It's especially suited to use with gaseous media in industry. The steel sleeve counters oscillating forces and the high insertion depth is guaranteed by an optimized plug guide.
Premium Quick Coupling with ARO Profile, Series 22
Markets:
- Machinery Construction
Features/Benefits:
- UltraFlo valve for optimum flow and low pressure drop
- Steel sleeve counters oscillating forces
- Single-hand operation for easy and fast connection
Applications:
- Pneumatic Power Tools
- Assembly Lines
- Air compressors
Technical Specifications
| Minimum Operating Temperature: |
-20 °C |
| Diameter: |
Nominal: 5.5 mm |
| Application: |
Pneumatic & Fluid Handling |
| Brand: |
Rectus |
| Fitting Connection Type: |
Female Thread, Male Thread, Hose Barb |
| Interchange Type: |
ARO |
| Materials of Construction: |
Brass / Steel |
| Maximum Operating Pressure: |
500 psi, 35 bar |
| Maximum Operating Temperature: |
212 °F, 100 °C |
| Media: |
Pneumatic Media |
| Valve Type: |
High Flow Air, Poppet |
| Seal Material: |
NBR |
| Valve Included: |
Yes or No acc. to the version |
| Version: |
Single Shut-Off |
| Length: |
35 up to 126 mm |
| Hex Size: |
12 up to 24 mm |
| Outside Diameter: |
12 up to 23 mm |
| Flow Rate: |
800 L/min |
Premium Quick Coupling with ARO Profile, Series 22 型號
| Part |
Type |
Connection Type |
Connection Thread Size (inch) |
Hose I.D. |
Material |
| 22KAAK13MPN |
Coupling |
Male Thread - tapered |
1/4 |
na |
Brass nickel plated |
| 22KAAK17MPN |
Coupling |
Male Thread - tapered |
3/8 |
na |
Brass nickel plated |
| 22KAAK21MPN |
Coupling |
Male Thread - tapered |
1/2 |
na |
Brass nickel plated |
| 22KAIW13MPN |
Coupling |
Female Thread - parallel |
1/4 |
na |
Brass nickel plated |
| 22KAIW17MPN |
Coupling |
Female Thread - parallel |
3/8 |
na |
Brass nickel plated |
| 22KAIW21MPN |
Coupling |
Female Thread - parallel |
1/2 |
na |
Brass nickel plated |
| 22KAKK08MPN |
Coupling |
Plastic Hose Connection with Spring Guard |
na |
6x8 |
Brass nickel plated |
| 22KAKO08MPN |
Coupling |
with Plastic Hose Connection |
na |
6x8 |
Brass nickel plated |
| 22KAKO10MPN |
Coupling |
with Plastic Hose Connection |
na |
8x10 |
Brass nickel plated |
| 22KATF06MPN |
Coupling |
Hose Barb |
na |
6 |
Brass nickel plated |
| 22KATF08MPN |
Coupling |
Hose Barb |
na |
8 |
Brass nickel plated |
| 22KATF09MPN |
Coupling |
Hose Barb |
na |
9 |
Brass nickel plated |
| 22KATF10MPN |
Coupling |
Hose Barb |
na |
10 |
Brass nickel plated |
| 22KATF13MPN |
Coupling |
Hose Barb |
na |
13 |
Brass nickel plated |
| 22SFAK10SXN |
Plug |
Male Thread - tapered |
1/8 |
na |
Steel nickel plated |
| 22SFAK13MXN |
Plug |
Male Thread - tapered |
1/4 |
na |
Brass nickel plated |
| 22SFAK13MXX |
Plug |
Male Thread - tapered |
1/4 |
na |
Brass |
| 22SFAK13SXN |
Plug |
Male Thread - tapered |
1/4 |
na |
Steel nickel plated |
| 22SFAK17SXN |
Plug |
Male Thread - tapered |
3/8 |
na |
Steel nickel plated |
| 22SFAK21SXN |
Plug |
Male Thread - tapered |
1/2 |
na |
Steel nickel plated |
| 22SFAW13MXX |
Plug |
Male Thread - parallel |
1/4 |
na |
Brass |
| 22SFAW17MXX |
Plug |
Male Thread - parallel |
3/8 |
na |
Brass |
| 22SFAW21MXX |
Plug |
Male Thread - parallel |
1/2 |
na |
Brass |
| 22SFIW13MXN |
Plug |
Female Thread - parallel |
1/4 |
na |
Brass nickel plated |
| 22SFIW13MXX |
Plug |
Female Thread - parallel |
1/4 |
na |
Brass |
| 22SFIW13SXN |
Plug |
Female Thread - parallel |
1/4 |
na |
Steel nickel plated |
| 22SFIW17MXN |
Plug |
Female Thread - parallel |
3/8 |
na |
Brass nickel plated |
| 22SFIW17MXX |
Plug |
Female Thread - parallel |
3/8 |
na |
Brass |
| 22SFIW17SXN |
Plug |
Female Thread - parallel |
3/8 |
na |
Steel nickel plated |
| 22SFIW21SXN |
Plug |
Female Thread - parallel |
1/2 |
na |
Steel nickel plated |
| 22SFTF06MXN |
Plug |
Hose Barb |
na |
6 |
Brass nickel plated |
| 22SFTF06MXX |
Plug |
Hose Barb |
na |
6 |
Brass |
| 22SFTF06SXN |
Plug |
Hose Barb |
na |
6 |
Steel nickel plated |
| 22SFTF08MXN |
Plug |
Hose Barb |
na |
8 |
Brass nickel plated |
| 22SFTF08MXX |
Plug |
Hose Barb |
na |
8 |
Brass |
| 22SFTF08SXN |
Plug |
Hose Barb |
na |
8 |
Steel nickel plated |
| 22SFTF09SXN |
Plug |
Hose Barb |
na |
9 |
Steel nickel plated |
| 22SFTF10MXN |
Plug |
Hose Barb |
na |
10 |
Brass nickel plated |
| 22SFTF10MXX |
Plug |
Hose Barb |
na |
10 |
Brass |
| 22SFTF10SXN |
Plug |
Hose Barb |
na |
10 |
Steel nickel plated |
| 22SFTF13MXN |
Plug |
Hose Barb |
na |
13 |
Brass nickel plated |
| 22SFTF13MXX |
Plug |
Hose Barb |
na |
13 |
Brass |
| 22SFTF13SXN |
Plug |
Hose Barb |
na |
13 |
Steel nickel plated |
|
