Parker Quick Couplings

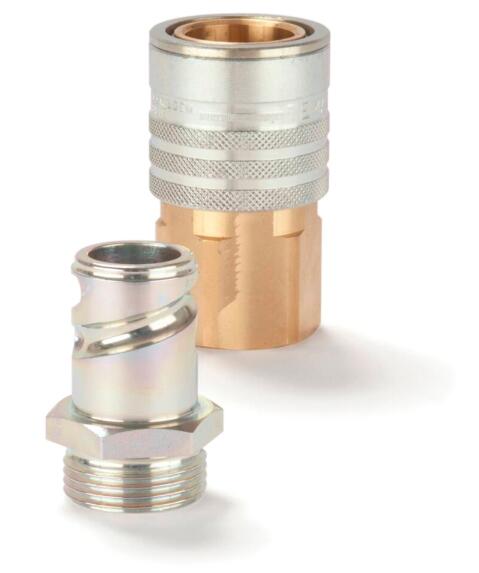

Premium Plus Quick Coupling with Scandinavian Profile, Series 2100
Premium plus quick coupling system with nominal diameter 22 for pneumatic and fluid handling applications up to 20 bar. Coupling system with Scandinavian profile. Available made of brass/steel.
Parker's series 2100 is used mainly in the area of compressed air. The system is particularly suited to large pneumatic plants and compressed air tools with a very high flow. This series has a special safety function, which requires a turn and push/pull movement during connection and disconnection. It also has an automatic pressure release function, which facilitates easy handling. A coupling system with very high flow rates, robust design, high corrosion resistance and a safety function.
Premium Plus Quick Coupling with Scandinavian Profile, Series 2100
Markets:
- Machinery Construction
- Automotive
- Aerospace
- Mobile Hydraulics
Features/Benefits:
- Corrosion resistant
- High flow rates
- Robust design
- Available with safety function
Applications:
- Pneumatic Power Tools
- Assembly Lines
- Air compressors
Technical Specifications
| Minimum Operating Temperature: |
-20 °C |
| Diameter: |
Nominal: 22 mm |
| Application: |
Pneumatic & Fluid Handling |
| Brand: |
Tema |
| Fitting Connection Type: |
Female Thread, Male Thread, Hose Barb |
| Flow Rate: |
3170.074497 Gal/min, 12000 L/min |
| Interchange Type: |
Scandinavia |
| Maximum Operating Pressure: |
290.08 psi, 20 bar |
| Maximum Operating Temperature: |
212 °F, 100 °C |
| Media: |
Pneumatic Media |
| Valve Type: |
Poppet |
| Seal Material: |
NBR |
| Valve Included: |
Yes, No |
| Version: |
Single Shut-Off |
| Length: |
40 up to 82 mm |
| Hex Size: |
na, 36, 41 mm |
| Outside Diameter: |
na, 48 mm |
| Materials of Construction: |
Brass/Steel, Steel |
Premium Plus Quick Coupling with Scandinavian Profile, Series 2100 型號
|
