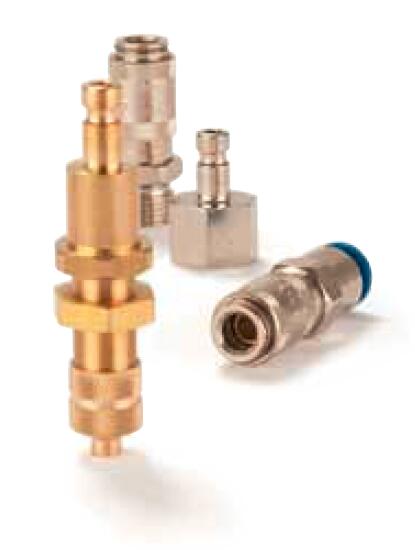

Quick coupling system with nominal diameter 2.5 for pneumatic and fluid handling applications up to 35 bar. Coupling system with an internationally used profile. Available made of brass or stainless steel.
Parker's Series 20 is a mini industrial coupling with internationally used profile. It's especially suitable for use in medical technology and chemistry/pharmacy.
The coupling system is developed for single-hand operation. This series has a high flow rate despite its small dimensions, it can be used in various applications and a variety of different media.
| Part |
Type |
Version |
Connection Type |
Connection Thread Size (inch) |
Connection Thread Size (mm) |
Hose I.D. (mm) |
External Hex (mm) |
Material |
| 20KAAM05EVX |
Coupling |
Single Shut-Off |
Male Thread - metric |
na |
5 |
na |
9 |
AISI 316 L |
| 20KAAM05MPN |
Coupling |
Single Shut-Off |
Male Thread - metric |
na |
5 |
na |
9 |
Brass nickel plated |
| 20KAAM05MPX |
Coupling |
Single Shut-Off |
Male Thread - metric |
na |
5 |
na |
9 |
Brass |
| 20KAAM05RVX |
Coupling |
Single Shut-Off |
Male Thread - metric |
na |
5 |
na |
9 |
AISI 303 |
| 20KAAW10EVX |
Coupling |
Single Shut-Off |
Male Thread - parallel |
1/8 |
na |
na |
11 |
AISI 316 L |
| 20KAAW10MPN |
Coupling |
Single Shut-Off |
Male Thread - parallel |
1/8 |
na |
na |
11 |
Brass nickel plated |
| 20KAAW10MPX |
Coupling |
Single Shut-Off |
Male Thread - parallel |
1/8 |
na |
na |
11 |
Brass |
| 20KAAW10RVX |
Coupling |
Single Shut-Off |
Male Thread - parallel |
1/8 |
na |
na |
11 |
AISI 303 |
| 20KAIM05EVX |
Coupling |
Single Shut-Off |
Female Thread - metric |
na |
5 |
na |
9 |
AISI 316 L |
| 20KAIM05MPN |
Coupling |
Single Shut-Off |
Female Thread - metric |
na |
5 |
na |
9 |
Brass nickel plated |
| 20KAIM05MPX |
Coupling |
Single Shut-Off |
Female Thread - metric |
na |
5 |
na |
9 |
Brass |
| 20KAIM05RVX |
Coupling |
Single Shut-Off |
Female Thread - metric |
na |
5 |
na |
9 |
AISI 303 |
| 20KAIW10EVX |
Coupling |
Single Shut-Off |
Female Thread - parallel |
1/8 |
na |
na |
12 |
AISI 316 L |
| 20KAIW10MPN |
Coupling |
Single Shut-Off |
Female Thread - parallel |
1/8 |
na |
na |
12 |
Brass nickel plated |
| 20KAIW10MPX |
Coupling |
Single Shut-Off |
Female Thread - parallel |
1/8 |
na |
na |
12 |
Brass |
| 20KAIW10RVX |
Coupling |
Single Shut-Off |
Female Thread - parallel |
1/8 |
na |
na |
12 |
AISI 303 |
| 20KAKO04EVX |
Coupling |
Single Shut-Off |
with Plastic Hose Connection |
na |
na |
3x4 |
9 |
AISI 316 L |
| 20KAKO04MPN |
Coupling |
Single Shut-Off |
with Plastic Hose Connection |
na |
na |
3x4 |
9 |
Brass nickel plated |
| 20KAKO04MPX |
Coupling |
Single Shut-Off |
with Plastic Hose Connection |
na |
na |
3x4 |
9 |
Brass |
| 20KAKO04RVX |
Coupling |
Single Shut-Off |
with Plastic Hose Connection |
na |
na |
3x4 |
9 |
AISI 303 |
| 20KAKO05EVX |
Coupling |
Single Shut-Off |
with Plastic Hose Connection |
na |
na |
3x5 |
9 |
AISI 316 L |
| 20KAKO05MPN |
Coupling |
Single Shut-Off |
with Plastic Hose Connection |
na |
na |
3x5 |
9 |
Brass nickel plated |
| 20KAKO05MPX |
Coupling |
Single Shut-Off |
with Plastic Hose Connection |
na |
na |
3x5 |
9 |
Brass |
| 20KAKO05RVX |
Coupling |
Single Shut-Off |
with Plastic Hose Connection |
na |
na |
3x5 |
9 |
AISI 303 |
| 20KAKO06EVX |
Coupling |
Single Shut-Off |
with Plastic Hose Connection |
na |
na |
4x6 |
9 |
AISI 316 L |
| 20KAKO06MPN |
Coupling |
Single Shut-Off |
with Plastic Hose Connection |
na |
na |
4x6 |
9 |
Brass nickel plated |
| 20KAKO06MPX |
Coupling |
Single Shut-Off |
with Plastic Hose Connection |
na |
na |
4x6 |
9 |
Brass |
| 20KAKO06RVX |
Coupling |
Single Shut-Off |
with Plastic Hose Connection |
na |
na |
4x6 |
9 |
AISI 303 |
| 20KAKS04MPN |
Coupling |
Single Shut-Off |
Panel Mount with Plastic Hose Connection |
na |
na |
3x4 |
12 |
Brass nickel plated |
| 20KAKS04MPX |
Coupling |
Single Shut-Off |
Panel Mount with Plastic Hose Connection |
na |
na |
3x4 |
12 |
Brass |
| 20KAKS04RVX |
Coupling |
Single Shut-Off |
Panel Mount with Plastic Hose Connection |
na |
na |
3x4 |
12 |
AISI 303 |
| 20KAKS05MPN |
Coupling |
Single Shut-Off |
Panel Mount with Plastic Hose Connection |
na |
na |
3x5 |
12 |
Brass nickel plated |
| 20KAKS05MPX |
Coupling |
Single Shut-Off |
Panel Mount with Plastic Hose Connection |
na |
na |
3x5 |
12 |
Brass |
| 20KAKS05RVX |
Coupling |
Single Shut-Off |
Panel Mount with Plastic Hose Connection |
na |
na |
3x5 |
12 |
AISI 303 |
| 20KAKS06MPN |
Coupling |
Single Shut-Off |
Panel Mount with Plastic Hose Connection |
na |
na |
4x6 |
12 |
Brass nickel plated |
| 20KAKS06MPX |
Coupling |
Single Shut-Off |
Panel Mount with Plastic Hose Connection |
na |
na |
4x6 |
12 |
Brass |
| 20KAKS06RVX |
Coupling |
Single Shut-Off |
Panel Mount with Plastic Hose Connection |
na |
na |
4x6 |
12 |
AISI 303 |
| 20KARP04MPN |
Coupling |
Single Shut-Off |
Push-In |
na |
na |
4 |
10 |
Brass nickel plated |
| 20KATF03MPN |
Coupling |
Single Shut-Off |
Hose Barb |
na |
na |
3 |
na |
Brass nickel plated |
| 20KATF03MPX |
Coupling |
Single Shut-Off |
Hose Barb |
na |
na |
3 |
na |
Brass |
| 20KATF03RVX |
Coupling |
Single Shut-Off |
Hose Barb |
na |
na |
3 |
na |
AISI 303 |
| 20KATF04EVX |
Coupling |
Single Shut-Off |
Hose Barb |
na |
na |
4 |
na |
AISI 316 L |
| 20KATF04MPN |
Coupling |
Single Shut-Off |
Hose Barb |
na |
na |
4 |
na |
Brass nickel plated |
| 20KATF04MPX |
Coupling |
Single Shut-Off |
Hose Barb |
na |
na |
4 |
na |
Brass |
| 20KATF04RVX |
Coupling |
Single Shut-Off |
Hose Barb |
na |
na |
4 |
na |
AISI 303 |
| 20KATF05MPN |
Coupling |
Single Shut-Off |
Hose Barb |
na |
na |
5 |
na |
Brass nickel plated |
| 20KATF05MPX |
Coupling |
Single Shut-Off |
Hose Barb |
na |
na |
5 |
na |
Brass |
| 20KATF05RVX |
Coupling |
Single Shut-Off |
Hose Barb |
na |
na |
5 |
na |
AISI 303 |
| 20KATS03MPN |
Coupling |
Single Shut-Off |
Panel Mount with Hose Barb |
na |
na |
3 |
12 |
Brass nickel plated |
| 20KATS03MPX |
Coupling |
Single Shut-Off |
Panel Mount with Hose Barb |
na |
na |
3 |
12 |
Brass |
| 20KATS04MPN |
Coupling |
Single Shut-Off |
Panel Mount with Hose Barb |
na |
na |
4 |
12 |
Brass nickel plated |
| 20KATS04MPX |
Coupling |
Single Shut-Off |
Panel Mount with Hose Barb |
na |
na |
4 |
12 |
Brass |
| 20KATS06MPN |
Coupling |
Single Shut-Off |
Panel Mount with Hose Barb |
na |
na |
6 |
12 |
Brass nickel plated |
| 20KATS06MPX |
Coupling |
Single Shut-Off |
Panel Mount with Hose Barb |
na |
na |
6 |
12 |
Brass |
| 20KBAM05EVX |
Coupling |
Double Shut-Off |
Male Thread - metric |
na |
5 |
na |
9 |
AISI 316 L |
| 20KBAM05MPN |
Coupling |
Double Shut-Off |
Male Thread - metric |
na |
5 |
na |
9 |
Brass nickel plated |
| 20KBAM05MPX |
Coupling |
Double Shut-Off |
Male Thread - metric |
na |
5 |
na |
9 |
Brass |
| 20KBAM05RVX |
Coupling |
Double Shut-Off |
Male Thread - metric |
na |
5 |
na |
9 |
AISI 303 |
| 20KBAW10EVX |
Coupling |
Double Shut-Off |
Male Thread - parallel |
1/8 |
na |
na |
11 |
AISI 316 L |
| 20KBAW10MPN |
Coupling |
Double Shut-Off |
Male Thread - parallel |
1/8 |
na |
na |
11 |
Brass nickel plated |
| 20KBAW10MPX |
Coupling |
Double Shut-Off |
Male Thread - parallel |
1/8 |
na |
na |
11 |
Brass |
| 20KBAW10RVX |
Coupling |
Double Shut-Off |
Male Thread - parallel |
1/8 |
na |
na |
11 |
AISI 303 |
| 20KBIM05EVX |
Coupling |
Double Shut-Off |
Female Thread - metric |
na |
5 |
na |
9 |
AISI 316 L |
| 20KBIM05MPN |
Coupling |
Double Shut-Off |
Female Thread - metric |
na |
5 |
na |
9 |
Brass nickel plated |
| 20KBIM05MPX |
Coupling |
Double Shut-Off |
Female Thread - metric |
na |
5 |
na |
9 |
Brass |
| 20KBIM05RVX |
Coupling |
Double Shut-Off |
Female Thread - metric |
na |
5 |
na |
9 |
AISI 303 |
| 20KBIW10EVX |
Coupling |
Double Shut-Off |
Female Thread - parallel |
1/8 |
na |
na |
12 |
AISI 316 L |
| 20KBIW10MPN |
Coupling |
Double Shut-Off |
Female Thread - parallel |
1/8 |
na |
na |
12 |
Brass nickel plated |
| 20KBIW10MPX |
Coupling |
Double Shut-Off |
Female Thread - parallel |
1/8 |
na |
na |
12 |
Brass |
| 20KBIW10RVX |
Coupling |
Double Shut-Off |
Female Thread - parallel |
1/8 |
na |
na |
12 |
AISI 303 |
| 20KBKO04EVX |
Coupling |
Double Shut-Off |
with Plastic Hose Connection |
na |
na |
3x4 |
9 |
AISI 316 L |
| 20KBKO04MPN |
Coupling |
Double Shut-Off |
with Plastic Hose Connection |
na |
na |
3x4 |
9 |
Brass nickel plated |
| 20KBKO04MPX |
Coupling |
Double Shut-Off |
with Plastic Hose Connection |
na |
na |
3x4 |
9 |
Brass |
| 20KBKO04RVX |
Coupling |
Double Shut-Off |
with Plastic Hose Connection |
na |
na |
3x4 |
9 |
AISI 303 |
| 20KBKO05EVX |
Coupling |
Double Shut-Off |
with Plastic Hose Connection |
na |
na |
3x5 |
9 |
AISI 316 L |
| 20KBKO05MPN |
Coupling |
Double Shut-Off |
with Plastic Hose Connection |
na |
na |
3x5 |
9 |
Brass nickel plated |
| 20KBKO05MPX |
Coupling |
Double Shut-Off |
with Plastic Hose Connection |
na |
na |
3x5 |
9 |
Brass |
| 20KBKO05RVX |
Coupling |
Double Shut-Off |
with Plastic Hose Connection |
na |
na |
3x5 |
9 |
AISI 303 |
| 20KBKO06EVX |
Coupling |
Double Shut-Off |
with Plastic Hose Connection |
na |
na |
4x6 |
9 |
AISI 316 L |
| 20KBKO06MPN |
Coupling |
Double Shut-Off |
with Plastic Hose Connection |
na |
na |
4x6 |
9 |
Brass nickel plated |
| 20KBKO06MPX |
Coupling |
Double Shut-Off |
with Plastic Hose Connection |
na |
na |
4x6 |
9 |
Brass |
| 20KBKO06RVX |
Coupling |
Double Shut-Off |
with Plastic Hose Connection |
na |
na |
4x6 |
9 |
AISI 303 |
| 20KBKS04MPN |
Coupling |
Double Shut-Off |
Panel Mount with Plastic Hose Connection |
na |
na |
3x4 |
12 |
Brass nickel plated |
| 20KBKS04MPX |
Coupling |
Double Shut-Off |
Panel Mount with Plastic Hose Connection |
na |
na |
3x4 |
12 |
Brass |
| 20KBKS04RVX |
Coupling |
Double Shut-Off |
Panel Mount with Plastic Hose Connection |
na |
na |
3x4 |
12 |
AISI 303 |
| 20KBKS05MPN |
Coupling |
Double Shut-Off |
Panel Mount with Plastic Hose Connection |
na |
na |
3x5 |
12 |
Brass nickel plated |
| 20KBKS05MPX |
Coupling |
Double Shut-Off |
Panel Mount with Plastic Hose Connection |
na |
na |
3x5 |
12 |
Brass |
| 20KBKS05RVX |
Coupling |
Double Shut-Off |
Panel Mount with Plastic Hose Connection |
na |
na |
3x5 |
12 |
AISI 303 |
| 20KBKS06MPN |
Coupling |
Double Shut-Off |
Panel Mount with Plastic Hose Connection |
na |
na |
4x6 |
12 |
Brass nickel plated |
| 20KBKS06MPX |
Coupling |
Double Shut-Off |
Panel Mount with Plastic Hose Connection |
na |
na |
4x6 |
12 |
Brass |
| 20KBKS06RVX |
Coupling |
Double Shut-Off |
Panel Mount with Plastic Hose Connection |
na |
na |
4x6 |
12 |
AISI 303 |
| 20KBTF03MPN |
Coupling |
Double Shut-Off |
Hose Barb |
na |
na |
3 |
na |
Brass nickel plated |
| 20KBTF03MPX |
Coupling |
Double Shut-Off |
Hose Barb |
na |
na |
3 |
na |
Brass |
| 20KBTF03RVX |
Coupling |
Double Shut-Off |
Hose Barb |
na |
na |
3 |
na |
AISI 303 |
| 20KBTF04EVX |
Coupling |
Double Shut-Off |
Hose Barb |
na |
na |
4 |
na |
AISI 316 L |
| 20KBTF04MPN |
Coupling |
Double Shut-Off |
Hose Barb |
na |
na |
4 |
na |
Brass nickel plated |
| 20KBTF04MPX |
Coupling |
Double Shut-Off |
Hose Barb |
na |
na |
4 |
na |
Brass |
| 20KBTF04RVX |
Coupling |
Double Shut-Off |
Hose Barb |
na |
na |
4 |
na |
AISI 303 |
| 20KBTF05MPN |
Coupling |
Double Shut-Off |
Hose Barb |
na |
na |
5 |
na |
Brass nickel plated |
| 20KBTF05MPX |
Coupling |
Double Shut-Off |
Hose Barb |
na |
na |
5 |
na |
Brass |
| 20KBTF05RVX |
Coupling |
Double Shut-Off |
Hose Barb |
na |
na |
5 |
na |
AISI 303 |
| 20KBTS03MPN |
Coupling |
Double Shut-Off |
Panel Mount with Hose Barb |
na |
na |
3 |
12 |
Brass nickel plated |
| 20KBTS03MPX |
Coupling |
Double Shut-Off |
Panel Mount with Hose Barb |
na |
na |
3 |
12 |
Brass |
| 20KBTS04MPN |
Coupling |
Double Shut-Off |
Panel Mount with Hose Barb |
na |
na |
4 |
12 |
Brass nickel plated |
| 20KBTS04MPX |
Coupling |
Double Shut-Off |
Panel Mount with Hose Barb |
na |
na |
4 |
12 |
Brass |
| 20SBAM05EVX |
Plug |
Double Shut-Off |
Male Thread - metric |
na |
5 |
na |
9 |
AISI 316 L |
| 20SBAM05MPN |
Plug |
Double Shut-Off |
Male Thread - metric |
na |
5 |
na |
9 |
Brass nickel plated |
| 20SBAM05MPX |
Plug |
Double Shut-Off |
Male Thread - metric |
na |
5 |
na |
9 |
Brass |
| 20SBAM05RVX |
Plug |
Double Shut-Off |
Male Thread - metric |
na |
5 |
na |
9 |
AISI 303 |
| 20SBAW10EVX |
Plug |
Double Shut-Off |
Male Thread - parallel |
1/8 |
na |
na |
11 |
AISI 316 L |
| 20SBAW10MPN |
Plug |
Double Shut-Off |
Male Thread - parallel |
1/8 |
na |
na |
11 |
Brass nickel plated |
| 20SBAW10MPX |
Plug |
Double Shut-Off |
Male Thread - parallel |
1/8 |
na |
na |
11 |
Brass |
| 20SBAW10RVX |
Plug |
Double Shut-Off |
Male Thread - parallel |
1/8 |
na |
na |
11 |
AISI 303 |
| 20SBIM05EVX |
Plug |
Double Shut-Off |
Female Thread - metric |
na |
5 |
na |
9 |
AISI 316 L |
| 20SBIM05MPN |
Plug |
Double Shut-Off |
Female Thread - metric |
na |
5 |
na |
9 |
Brass nickel plated |
| 20SBIM05MPX |
Plug |
Double Shut-Off |
Female Thread - metric |
na |
5 |
na |
9 |
Brass |
| 20SBIM05RVX |
Plug |
Double Shut-Off |
Female Thread - metric |
na |
5 |
na |
9 |
AISI 303 |
| 20SBIW10EVX |
Plug |
Double Shut-Off |
Female Thread - parallel |
1/8 |
na |
na |
12 |
AISI 316 L |
| 20SBIW10MPN |
Plug |
Double Shut-Off |
Female Thread - parallel |
1/8 |
na |
na |
12 |
Brass nickel plated |
| 20SBIW10MPX |
Plug |
Double Shut-Off |
Female Thread - parallel |
1/8 |
na |
na |
12 |
Brass |
| 20SBIW10RVX |
Plug |
Double Shut-Off |
Female Thread - parallel |
1/8 |
na |
na |
12 |
AISI 303 |
| 20SBKO04EVX |
Plug |
Double Shut-Off |
with Plastic Hose Connection |
na |
na |
3x4 |
9 |
AISI 316 L |
| 20SBKO04MPN |
Plug |
Double Shut-Off |
with Plastic Hose Connection |
na |
na |
3x4 |
9 |
Brass nickel plated |
| 20SBKO04MPX |
Plug |
Double Shut-Off |
with Plastic Hose Connection |
na |
na |
3x4 |
9 |
Brass |
| 20SBKO04RVX |
Plug |
Double Shut-Off |
with Plastic Hose Connection |
na |
na |
3x4 |
9 |
AISI 303 |
| 20SBKO05EVX |
Plug |
Double Shut-Off |
with Plastic Hose Connection |
na |
na |
3x5 |
9 |
AISI 316 L |
| 20SBKO05MPN |
Plug |
Double Shut-Off |
with Plastic Hose Connection |
na |
na |
3x5 |
9 |
Brass nickel plated |
| 20SBKO05MPX |
Plug |
Double Shut-Off |
with Plastic Hose Connection |
na |
na |
3x5 |
9 |
Brass |
| 20SBKO05RVX |
Plug |
Double Shut-Off |
with Plastic Hose Connection |
na |
na |
3x5 |
9 |
AISI 303 |
| 20SBKO06EVX |
Plug |
Double Shut-Off |
with Plastic Hose Connection |
na |
na |
4x6 |
9 |
AISI 316 L |
| 20SBKO06MPN |
Plug |
Double Shut-Off |
with Plastic Hose Connection |
na |
na |
4x6 |
9 |
Brass nickel plated |
| 20SBKO06MPX |
Plug |
Double Shut-Off |
with Plastic Hose Connection |
na |
na |
4x6 |
9 |
Brass |
| 20SBKO06RVX |
Plug |
Double Shut-Off |
with Plastic Hose Connection |
na |
na |
4x6 |
9 |
AISI 303 |
| 20SBKS04MPN |
Plug |
Double Shut-Off |
Panel Mount with Plastic Hose Connection |
na |
na |
3x4 |
12 |
Brass nickel plated |
| 20SBKS04MPX |
Plug |
Double Shut-Off |
Panel Mount with Plastic Hose Connection |
na |
na |
3x4 |
12 |
Brass |
| 20SBKS04RVX |
Plug |
Double Shut-Off |
Panel Mount with Plastic Hose Connection |
na |
na |
3x4 |
12 |
AISI 303 |
| 20SBKS05MPN |
Plug |
Double Shut-Off |
Panel Mount with Plastic Hose Connection |
na |
na |
3x5 |
12 |
Brass nickel plated |
| 20SBKS05MPX |
Plug |
Double Shut-Off |
Panel Mount with Plastic Hose Connection |
na |
na |
3x5 |
12 |
Brass |
| 20SBKS05RVX |
Plug |
Double Shut-Off |
Panel Mount with Plastic Hose Connection |
na |
na |
3x5 |
12 |
AISI 303 |
| 20SBKS06MPN |
Plug |
Double Shut-Off |
Panel Mount with Plastic Hose Connection |
na |
na |
4x6 |
12 |
Brass nickel plated |
| 20SBKS06MPX |
Plug |
Double Shut-Off |
Panel Mount with Plastic Hose Connection |
na |
na |
4x6 |
12 |
Brass |
| 20SBKS06RVX |
Plug |
Double Shut-Off |
Panel Mount with Plastic Hose Connection |
na |
na |
4x6 |
12 |
AISI 303 |
| 20SBTF03MPN |
Plug |
Double Shut-Off |
Hose Barb |
na |
na |
3 |
8 |
Brass nickel plated |
| 20SBTF03MPX |
Plug |
Double Shut-Off |
Hose Barb |
na |
na |
3 |
8 |
Brass |
| 20SBTF03RVX |
Plug |
Double Shut-Off |
Hose Barb |
na |
na |
3 |
8 |
AISI 303 |
| 20SBTF04EVX |
Plug |
Double Shut-Off |
Hose Barb |
na |
na |
4 |
8 |
AISI 316 L |
| 20SBTF04MPN |
Plug |
Double Shut-Off |
Hose Barb |
na |
na |
4 |
8 |
Brass nickel plated |
| 20SBTF04MPX |
Plug |
Double Shut-Off |
Hose Barb |
na |
na |
4 |
8 |
Brass |
| 20SBTF04RVX |
Plug |
Double Shut-Off |
Hose Barb |
na |
na |
4 |
8 |
AISI 303 |
| 20SBTF05MPN |
Plug |
Double Shut-Off |
Hose Barb |
na |
na |
5 |
8 |
Brass nickel plated |
| 20SBTF05MPX |
Plug |
Double Shut-Off |
Hose Barb |
na |
na |
5 |
8 |
Brass |
| 20SBTF05RVX |
Plug |
Double Shut-Off |
Hose Barb |
na |
na |
5 |
8 |
AISI 303 |
| 20SBTS03MPN |
Plug |
Double Shut-Off |
Panel Mount with Hose Barb |
na |
na |
3 |
12 |
Brass nickel plated |
| 20SBTS03MPX |
Plug |
Double Shut-Off |
Panel Mount with Hose Barb |
na |
na |
3 |
12 |
Brass |
| 20SBTS04MPN |
Plug |
Double Shut-Off |
Panel Mount with Hose Barb |
na |
na |
4 |
12 |
Brass nickel plated |
| 20SBTS04MPX |
Plug |
Double Shut-Off |
Panel Mount with Hose Barb |
na |
na |
4 |
12 |
Brass |
| 20SBTS06MPN |
Plug |
Double Shut-Off |
Panel Mount with Hose Barb |
na |
na |
6 |
12 |
Brass nickel plated |
| 20SBTS06MPX |
Plug |
Double Shut-Off |
Panel Mount with Hose Barb |
na |
na |
6 |
12 |
Brass |
| 20SFAM05EXX |
Plug |
Single Shut-Off |
Male Thread - metric |
na |
5 |
na |
7 |
AISI 316 L |
| 20SFAM05MXN |
Plug |
Single Shut-Off |
Male Thread - metric |
na |
5 |
na |
7 |
Brass nickel plated |
| 20SFAM05MXX |
Plug |
Single Shut-Off |
Male Thread - metric |
na |
5 |
na |
7 |
Brass |
| 20SFAM05RXX |
Plug |
Single Shut-Off |
Male Thread - metric |
na |
5 |
na |
7 |
AISI 303 |
| 20SFAW10EXX |
Plug |
Single Shut-Off |
Male Thread - parallel |
1/8 |
na |
na |
11 |
AISI 316 L |
| 20SFAW10MXN |
Plug |
Single Shut-Off |
Male Thread - parallel |
1/8 |
na |
na |
11 |
Brass nickel plated |
| 20SFAW10MXX |
Plug |
Single Shut-Off |
Male Thread - parallel |
1/8 |
na |
na |
11 |
Brass |
| 20SFAW10RXX |
Plug |
Single Shut-Off |
Male Thread - parallel |
1/8 |
na |
na |
11 |
AISI 303 |
| 20SFIM05EXX |
Plug |
Single Shut-Off |
Female Thread - metric |
na |
5 |
na |
7 |
AISI 316 L |
| 20SFIM05MXN |
Plug |
Single Shut-Off |
Female Thread - metric |
na |
5 |
na |
7 |
Brass nickel plated |
| 20SFIM05MXX |
Plug |
Single Shut-Off |
Female Thread - metric |
na |
5 |
na |
7 |
Brass |
| 20SFIM05RXX |
Plug |
Single Shut-Off |
Female Thread - metric |
na |
5 |
na |
7 |
AISI 303 |
| 20SFIW10EXX |
Plug |
Single Shut-Off |
Female Thread - parallel |
1/8 |
na |
na |
12 |
AISI 316 L |
| 20SFIW10MXN |
Plug |
Single Shut-Off |
Female Thread - parallel |
1/8 |
na |
na |
12 |
Brass nickel plated |
| 20SFIW10MXX |
Plug |
Single Shut-Off |
Female Thread - parallel |
1/8 |
na |
na |
12 |
Brass |
| 20SFIW10RXX |
Plug |
Single Shut-Off |
Female Thread - parallel |
1/8 |
na |
na |
12 |
AISI 303 |
| 20SFKO04EXX |
Plug |
Single Shut-Off |
with Plastic Hose Connection |
na |
na |
3x4 |
8 |
AISI 316 L |
| 20SFKO04MXN |
Plug |
Single Shut-Off |
with Plastic Hose Connection |
na |
na |
3x4 |
7 |
Brass nickel plated |
| 20SFKO04MXX |
Plug |
Single Shut-Off |
with Plastic Hose Connection |
na |
na |
3x4 |
7 |
Brass |
| 20SFKO04RXX |
Plug |
Single Shut-Off |
with Plastic Hose Connection |
na |
na |
3x4 |
8 |
AISI 303 |
| 20SFKO05EXX |
Plug |
Single Shut-Off |
with Plastic Hose Connection |
na |
na |
3x5 |
8 |
AISI 316 L |
| 20SFKO05MXN |
Plug |
Single Shut-Off |
with Plastic Hose Connection |
na |
na |
3x5 |
7 |
Brass nickel plated |
| 20SFKO05MXX |
Plug |
Single Shut-Off |
with Plastic Hose Connection |
na |
na |
3x5 |
7 |
Brass |
| 20SFKO05RXX |
Plug |
Single Shut-Off |
with Plastic Hose Connection |
na |
na |
3x5 |
8 |
AISI 303 |
| 20SFKO06EXX |
Plug |
Single Shut-Off |
with Plastic Hose Connection |
na |
na |
4x6 |
8 |
AISI 316 L |
| 20SFKO06MXN |
Plug |
Single Shut-Off |
with Plastic Hose Connection |
na |
na |
4x6 |
8 |
Brass nickel plated |
| 20SFKO06MXX |
Plug |
Single Shut-Off |
with Plastic Hose Connection |
na |
na |
4x6 |
8 |
Brass |
| 20SFKO06RXX |
Plug |
Single Shut-Off |
with Plastic Hose Connection |
na |
na |
4x6 |
8 |
AISI 303 |
| 20SFKS04MXN |
Plug |
Single Shut-Off |
Panel Mount with Plastic Hose Connection |
na |
na |
3x4 |
11 |
Brass nickel plated |
| 20SFKS04MXX |
Plug |
Single Shut-Off |
Panel Mount with Plastic Hose Connection |
na |
na |
3x4 |
11 |
Brass |
| 20SFKS05MXN |
Plug |
Single Shut-Off |
Panel Mount with Plastic Hose Connection |
na |
na |
3x5 |
11 |
Brass nickel plated |
| 20SFKS05MXX |
Plug |
Single Shut-Off |
Panel Mount with Plastic Hose Connection |
na |
na |
3x5 |
11 |
Brass |
| 20SFKS06MXN |
Plug |
Single Shut-Off |
Panel Mount with Plastic Hose Connection |
na |
na |
4x6 |
12 |
Brass nickel plated |
| 20SFKS06MXX |
Plug |
Single Shut-Off |
Panel Mount with Plastic Hose Connection |
na |
na |
4x6 |
12 |
Brass |
| 20SFKS06RXX |
Plug |
Single Shut-Off |
Panel Mount with Plastic Hose Connection |
na |
na |
4x6 |
12 |
AISI 303 |
| 20SFRP04MPN |
Plug |
Single Shut-Off |
Push-In |
na |
na |
4 |
10 |
Brass nickel plated |
| 20SFTF03EXX |
Plug |
Single Shut-Off |
Hose Barb |
na |
na |
3 |
na |
AISI 316 L |
| 20SFTF03MXN |
Plug |
Single Shut-Off |
Hose Barb |
na |
na |
3 |
na |
Brass nickel plated |
| 20SFTF03MXX |
Plug |
Single Shut-Off |
Hose Barb |
na |
na |
3 |
na |
Brass |
| 20SFTF03RXX |
Plug |
Single Shut-Off |
Hose Barb |
na |
na |
3 |
na |
AISI 303 |
| 20SFTF04EXX |
Plug |
Single Shut-Off |
Hose Barb |
na |
na |
4 |
na |
AISI 316 L |
| 20SFTF04MXN |
Plug |
Single Shut-Off |
Hose Barb |
na |
na |
4 |
na |
Brass nickel plated |
| 20SFTF04MXX |
Plug |
Single Shut-Off |
Hose Barb |
na |
na |
4 |
na |
Brass |
| 20SFTF04RXX |
Plug |
Single Shut-Off |
Hose Barb |
na |
na |
4 |
na |
AISI 303 |
| 20SFTF05EXX |
Plug |
Single Shut-Off |
Hose Barb |
na |
na |
5 |
na |
AISI 316 L |
| 20SFTF05MXN |
Plug |
Single Shut-Off |
Hose Barb |
na |
na |
5 |
na |
Brass nickel plated |
| 20SFTF05MXX |
Plug |
Single Shut-Off |
Hose Barb |
na |
na |
5 |
na |
Brass |
| 20SFTF05RXX |
Plug |
Single Shut-Off |
Hose Barb |
na |
na |
5 |
na |
AISI 303 |
| 20SFTS03MXN |
Plug |
Single Shut-Off |
Panel Mount with Hose Barb |
na |
na |
3 |
12 |
Brass nickel plated |
| 20SFTS03MXX |
Plug |
Single Shut-Off |
Panel Mount with Hose Barb |
na |
na |
3 |
12 |
Brass |
| 20SFTS04MXN |
Plug |
Single Shut-Off |
Panel Mount with Hose Barb |
na |
na |
4 |
12 |
Brass nickel plated |
| 20SFTS04MXX |
Plug |
Single Shut-Off |
Panel Mount with Hose Barb |
na |
na |
4 |
12 |
Brass |
fcg.cnmec@parkerdistribution.com.cn
