Parker Quick Couplings

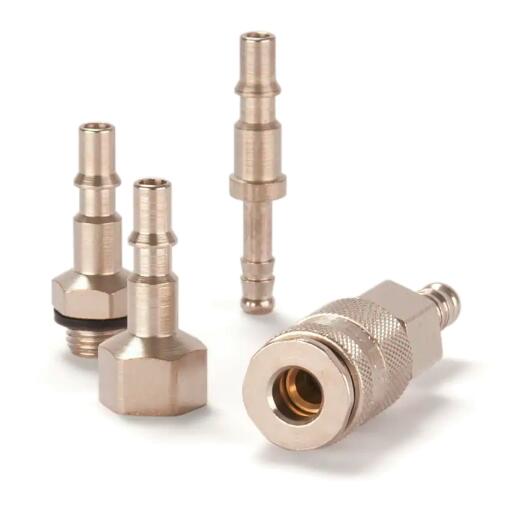

Quick Coupling with ISO 6150 C Profile, Series 18
Quick coupling system with nominal diameter 5.5 for pneumatic and fluid handling applications up to 35 bar. Coupling system with ISO 6150 C profile. Available made of brass/steel.
Parker's Series 18 is a robust industrial coupling according to ISO 6150 C. This coupling system is developed for single-hand operation. The UltraFlo valve guarantees optimum flow and low pressure drop and the steel sleeve counters oscillating forces. Series 18 has limited use for liquids (steel sleeve/zinc die cast valve). The high insertion depth is guaranteed by an optimized plug guide.
Quick Coupling with ISO 6150 C Profile, Series 18
Markets:
- Machinery Construction
- Automotive
- Life Science
- Process
Features/Benefits:
- UltraFlo valve for optimum flow and low pressure drop
- Single-hand operation for easy and fast connection
- Coupling system according to ISO 6150 C standard
- Steel sleeve counters oscillating forces.
Applications:
- Pneumatic Power Tools
- Assembly Lines
- Air compressors
Technical Specifications
| Minimum Operating Temperature: |
-20 °C |
| Diameter: |
Nominal: 5,5 mm |
| Application: |
Pneumatic & Fluid Handling |
| Brand: |
Rectus |
| Fitting Connection Type: |
Female Thread, Male Thread, Hose Barb |
| Specifications Met: |
ISO C |
| Interchange Type: |
ISO 6150 C |
| Maximum Operating Pressure: |
500 psi, 35 bar |
| Maximum Operating Temperature: |
212 °F, 100 °C |
| Media: |
Pneumatic Media |
| Valve Type: |
Poppet |
| Materials of Construction: |
Brass, Steel |
| Seal Material: |
NBR |
| Valve Included: |
Yes or No acc. to the version |
| Version: |
Single Shut-Off |
| Hex Size: |
17 to 24 mm |
| Outside Diameter: |
12 to 23 mm |
| Flow Rate: |
970 L/min |
Quick Coupling with ISO 6150 C Profile, Series 18 型號(hào)
|
