Parker Quick Couplings and Accessories
Parker Quick Couplings

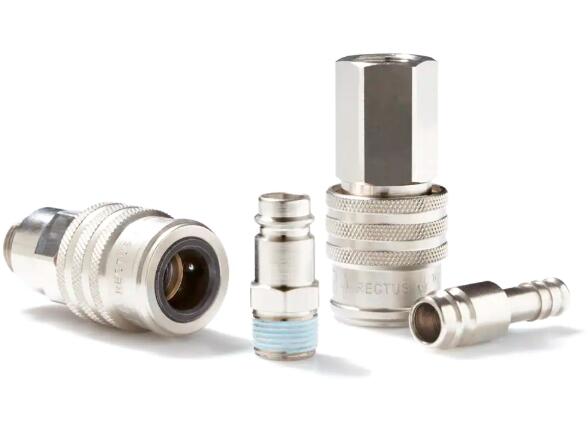

Premium Plus Safety Quick Coupling with a Self-Venting System, Series 1700

Premium plus self-venting quick coupling system with nominal diameter 10 for pneumatic applications up to 12 bar. Coupling system with European standard profile. Available made of brass/steel.

Parker's Premium Plus Safety Quick Coupling Series 1700 is a safety coupling with a self-venting system. The self-venting takes place during disconnection – no risk of pressurized hoses being tossed around. When the sleeve is pulled back, the plug is released yet remains locked in. The coupling valve closes and the air is vented from the air line at the same time. Only then, by operating the sleeve again, can uncoupling take place safely. The system fulfils the requirements of ISO 4414 – increased safety standards in the work place. The Ultra HighFlow valve guarantees optimum flow and low pressure drop.

The right plug for self-venting series 1700 can be found under series 27.

Premium Plus Safety Quick Coupling with a Self-Venting System, Series 1700

Markets:
- Machinery Construction
- Automotive

Features/Benefits:
- Safety Coupling with self-venting mechanism
- No whiplash effect due to the self-venting which takes place during disconnection
- Ultra HighFlow valve for optimum flow and low pressure drop - Energy Saver
- Compact & robust design due to the hardened valve body
- Low connection forces

Applications:
- Pneumatic Tools
- Pneumatic Airline Systems
- Assembly Lines

Technical Specifications

Premium Plus Safety Quick Coupling with a Self-Venting System, Series 1700 型號
