Parker Quick Couplings

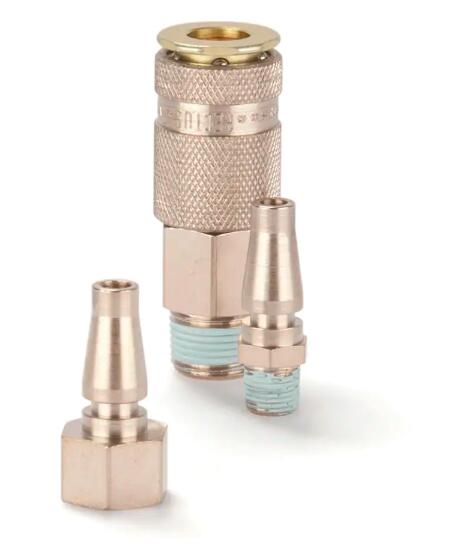

Quick Coupling with English Profile, Series 17
Quick coupling system with nominal diameter 5 for pneumatic and fluid handling applications up to 35 bar. Coupling system with English profile. Available made of brass/steel.
Parker's Series 17 is a brass/steel industrial coupling with English profile specifically suited to compressed air applications in industry.
This coupling system is developed for single-hand operation. The UltraFlo valve guarantees optimum flow and low pressure drop. Series 17 is very versatile applicable due to its slim design and light weight.
Quick Coupling with English Profile, Series 17
Markets:
- Machinery Construction
- Automotive
Features/Benefits:
- UltraFlo valve for optimum flow and low pressure drop
- Single-hand operation for easy and fast connection
Applications:
- Pneumatic Power Tools
- Assembly Lines
- Air compressors
Technical Specifications
| Minimum Operating Temperature: |
-20 °C |
| Diameter: |
Nominal: 5.0 mm |
| Application: |
Pneumatic & Fluid Handling |
| Brand: |
Rectus |
| Fitting Connection Type: |
Female Thread, Male Thread, Hose Barb |
| Interchange Type: |
GB |
| Maximum Operating Pressure: |
500 psi, 35 bar |
| Maximum Operating Temperature: |
212 °F, 100 °C |
| Media: |
Pneumatic Media |
| Valve Type: |
Poppet |
| Valve Included: |
Yes or No acc. to the version |
| Version: |
Single Shut-Off |
| Length: |
33 up to 76 mm |
| Hex Size: |
11 up to 24 mm |
| Outside Diameter: |
12 to 23 mm |
| Materials of Construction: |
Brass, Steel |
| Flow Rate: |
870 L/min |
Quick Coupling with English Profile, Series 17 型號
|
