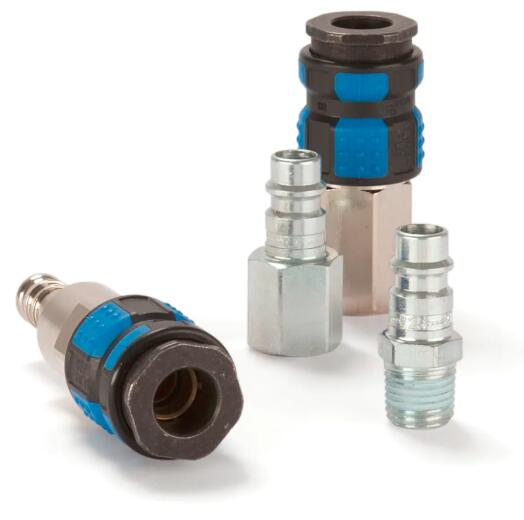

Premium Plus Quick Coupling with European Standard Profile, Series 1625
Premium plus quick coupling system with nominal diameter 7.8 for pneumatic and fluid handling applications up to 35 bar. Coupling system with European standard profile. Available made of brass/steel with 2-component plastic sleeve.
Parker's premium industrial coupling 3/8" with European standard profile. Suitable for compressed air applications with greater than average air consumption.
Coupling system with single-hand operation. Ultra HighFlow valve for optimum flow and low pressure drop. Extremely robust and ergonomically shaped, 2-component plastic sleeve.
The right plug for series 1625 can be found under series 25.
Premium Plus Quick Coupling with European Standard Profile, Series 1625
Markets:
- Machinery Construction
- Automotive
- Life Science
- Process
- Food & Beverage
- Rescue Equipment
- Aerospace
- Mobile Hydraulics
- Industrial
- Machine Tooling
- Material Handling
Features/Benefits:
- Premium Industrial Coupling with European Standard Profile
- Ultra HighFlow valve for optimum flow and low pressure drop - Energy Saver
- Robust valve body made of steel for heavy duty applications
- Available with ergonomic 2 component plastic sleeve
- Low connecting forces (ball locking)
Applications:
- Pneumatic Power Tools
- Assembly Lines
- Air compressors
Technical Specifications
| Minimum Operating Temperature: |
-20 °C |
| Diameter: |
Nominal: 7.8 mm |
| Application: |
Pneumatic & Fluid Handling |
| Brand: |
Rectus |
| Fitting Connection Type: |
Female Thread, Male Thread, Hose Barb |
| Interchange Type: |
Europe |
| Maximum Operating Pressure: |
500 psi, 35 bar |
| Maximum Operating Temperature: |
104 °F, 40 °C |
| Media: |
Pneumatic Media |
| Valve Type: |
High Flow Air, Poppet |
| Valve Included: |
Yes |
| Version: |
Single Shut-Off |
| Length: |
59 up to 80 mm |
| Hex Size: |
19 to 24 mm |
| Outside Diameter: |
26 mm |
| Materials of Construction: |
Steel |
| Seal Material: |
NBR |
| Flow Rate: |
2200 L/min |
Premium Plus Quick Coupling with European Standard Profile, Series 1625 型號
|
