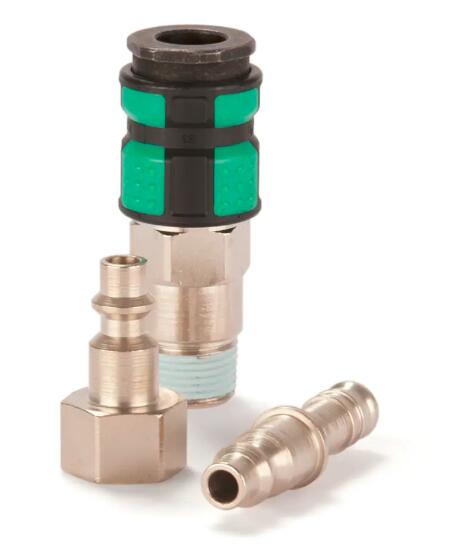

Premium Plus Quick Coupling with ISO 6150 B Profile, Series 1423
Premium plus quick coupling system with nominal diameter 5.5 for pneumatic and fluid handling applications up to 35 bar. Coupling system with ISO 6150 B profile. Available made of brass/steel with 2-component plastic sleeve.
Parker's Premium Plus Quick Coupling Series 1423 is an industrial coupling 1/4" according to ISO 6150 B. It's suitable for compressed air applications with greater than average air consumption.
The series 1423 is developed for single-hand operation. The Ultra HighFlow valve guarantees optimum flow and low pressure drop. This coupling system is equiped an extremely robust and ergonomically shaped, 2-component plastic sleeve.
The right plug for series 1423 can be found under series 23.
Premium Plus Quick Coupling with ISO 6150 B Profile, Series 1423
Markets:
- Machinery Construction
- Automotive
Features/Benefits:
- Ultra HighFlow valve for optimum flow and low pressure drop - Energy Saver
- Single-hand operation for easy and fast connection
- Extremely robust and ergonomically shaped, 2-component plastic sleeve.
Applications:
- Pneumatic Power Tools
- Assembly Lines
- Air compressors
Technical Specifications
| Minimum Operating Temperature: |
-20 °C |
| Diameter: |
Nominal: 5,5 mm |
| Application: |
Pneumatic & Fluid Handling |
| Brand: |
Rectus |
| Fitting Connection Type: |
Female Thread, Male Thread, Hose Barb |
| Specifications Met: |
ISO 6150 B, MIL |
| Interchange Type: |
ISO 6150 B |
| Maximum Operating Pressure: |
500 psi, 35 bar |
| Maximum Operating Temperature: |
176 °F, 80 °C |
| Media: |
Pneumatic Media |
| Valve Type: |
High Flow Air, Poppet |
| Valve Included: |
Yes |
| Version: |
Single Shut-Off |
| Length: |
59 to 80 mm |
| Hex Size: |
19 to 24 mm |
| Outside Diameter: |
26 mm |
| Materials of Construction: |
Brass |
| Seal Material: |
NBR |
| Flow Rate: |
940 L/min |
Premium Plus Quick Coupling with ISO 6150 B Profile, Series 1423 型號
|
