Parker Quick Couplings

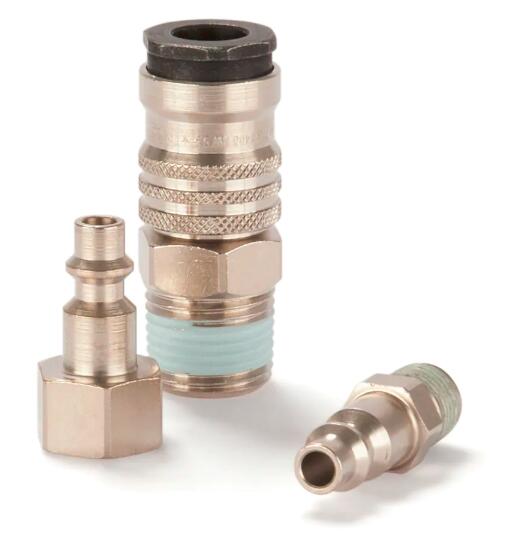

Premium Plus Quick Coupling with ISO 6150 B Profile, Series 1400
Premium plus quick coupling system with nominal diameter 5.5 for pneumatic and fluid handling applications up to 35 bar. Coupling system with ISO 6150 B profile. Available made of brass/steel.
Parker's Premium Plus Quick Coupling Series 1400 is an industrial coupling 1/4" with a plug profile according to ISO 6150 B. This coupling system is suitable for compressed air applications with greater than average air consumption.
The series 1400 is developed for single-hand operation. The Ultra HighFlow valve guarantees optimum flow and low pressure drop.
The right plug for series 1400 can be found under series 23.
Premium Plus Quick Coupling with ISO 6150 B Profile, Series 1400
Markets:
- Machinery Construction
- Automotive
Features/Benefits:
- Ultra HighFlow valve for optimum flow and low pressure drop - Energy Saver
- Single-hand operation for easy and fast connection
Applications:
- Pneumatic Power Tools
- Assembly Lines
- Air compressors
Technical Specifications
| Minimum Operating Temperature: |
-20 °C |
| Diameter: |
Nominal: 5,5 mm |
| Application: |
Pneumatic & Fluid Handling |
| Brand: |
Rectus |
| Fitting Connection Type: |
Female Thread, Male Thread, Hose Barb |
| Specifications Met: |
ISO 6150 B, MIL |
| Interchange Type: |
ISO 6150 B |
| Maximum Operating Pressure: |
500 psi, 35 bar |
| Maximum Operating Temperature: |
212 °F, 100 °C |
| Media: |
Pneumatic Media |
| Valve Type: |
High Flow Air, Poppet |
| Valve Included: |
Yes |
| Version: |
Single Shut-Off |
| Length: |
59 to 80 mm |
| Hex Size: |
19 to 24 mm |
| Outside Diameter: |
23 mm |
| Materials of Construction: |
Brass |
| Seal Material: |
NBR |
| Flow Rate: |
940 L/min |
Premium Plus Quick Coupling with ISO 6150 B Profile, Series 1400 型號
|
