Parker Quick Couplings

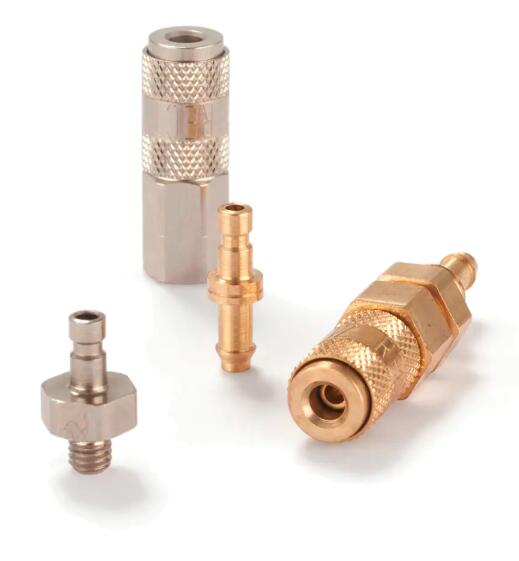

Parker's Smallest Quick Coupling, Series 02
Quick coupling system with nominal diameter 1.5 for pneumatic and fluid handling applications up to 35 bar. Parker's smallest mini industrial coupling system. Available made of brass.
Parker's smallest Quick Coupling Series 02 is a mini industrial coupling for air and gas applications. It's primarily used in medicine, didactics and model building. Due to its extremely small dimensions, the series 02 is especially suitable for use with liquids.
The series 02 is developed for single-hand operation.
Parker's Smallest Quick Coupling, Series 02
Markets:
- Machinery Construction
- Life Science
Features/Benefits:
- Single-hand operation for easy and fast connection
- Extremely small dimensions
Applications:
- Fluid Transfer
- Model Making
Technical Specifications
| Minimum Operating Temperature: |
-20 °C |
| Diameter: |
Nominal: 1.5 mm |
| Application: |
Pneumatic & Fluid Handling |
| Brand: |
Rectus |
| Fitting Connection Type: |
various |
| Interchange Type: |
Rectus Profile |
| Materials of Construction: |
Brass |
| Maximum Operating Pressure: |
500 psi, 35 bar |
| Maximum Operating Temperature: |
212 °F, 100 °C |
| Media: |
Gases, Pneumatic Media |
| Valve Type: |
Poppet |
| Seal Material: |
NBR |
| Valve Included: |
Yes or No acc. to the version |
| Version: |
Single Shut-Off |
| Length: |
10 up to 30 mm |
| Hex Size: |
6 to 7 mm |
| Outside Diameter: |
4 up to 6,5 mm |
| Flow Rate: |
105 L/min |
Parker's Smallest Quick Coupling, Series 02 型號(hào)
| Part |
Type |
Connection Type |
Connection Thread Size (mm) |
Hose I.D. (mm) |
Material |
| 02KAAM03MPN |
Coupling |
Male Thread - metric |
3 |
na |
Brass nickel plated |
| 02KAAM03MPX |
Coupling |
Male Thread - metric |
3 |
na |
Brass |
| 02KAIM03MPN |
Coupling |
Female Thread - metric |
3 |
na |
Brass nickel plated |
| 02KAIM03MPX |
Coupling |
Female Thread - metric |
3 |
na |
Brass |
| 02KATF02MPN |
Coupling |
Hose Barb |
na |
2 |
Brass nickel plated |
| 02KATF02MPX |
Coupling |
Hose Barb |
na |
2 |
Brass |
| 02KATF03MPN |
Coupling |
Hose Barb |
na |
3 |
Brass nickel plated |
| 02KATF03MPX |
Coupling |
Hose Barb |
na |
3 |
Brass |
| 02KATS02MPN |
Coupling |
Panel Mount with Hose Barb |
na |
2 |
Brass nickel plated |
| 02KATS02MPX |
Coupling |
Panel Mount with Hose Barb |
na |
2 |
Brass |
| 02KATS03MPN |
Coupling |
Panel Mount with Hose Barb |
na |
3 |
Brass nickel plated |
| 02KATS03MPX |
Coupling |
Panel Mount with Hose Barb |
na |
3 |
Brass |
| 02SFAM03MXN |
Plug |
Male Thread - metric |
3 |
na |
Brass nickel plated |
| 02SFAM03MXX |
Plug |
Male Thread - metric |
3 |
na |
Brass |
| 02SFIM03MXN |
Plug |
Female Thread - metric |
3 |
na |
Brass nickel plated |
| 02SFIM03MXX |
Plug |
Female Thread - metric |
3 |
na |
Brass |
| 02SFTF02MXN |
Plug |
Hose Barb |
na |
2 |
Brass nickel plated |
| 02SFTF02MXX |
Plug |
Hose Barb |
na |
2 |
Brass |
| 02SFTS02MXN |
Plug |
Panel Mount with Hose Barb |
na |
2 |
Brass nickel plated |
| 02SFTS02MXX |
Plug |
Panel Mount with Hose Barb |
na |
2 |
Brass |
| 02SFTS03MXN |
Plug |
Panel Mount with Hose Barb |
na |
3 |
Brass nickel plated |
| 02SFTS03MXX |
Plug |
Panel Mount with Hose Barb |
na |
3 |
Brass |
|
