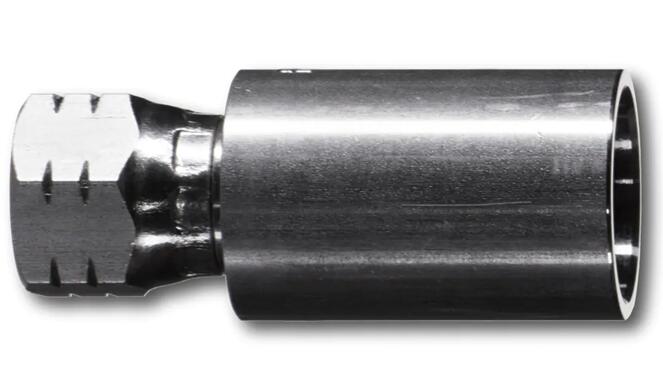

Crimped Thermoplastic Oil & Gas Hose Fittings, RX Series
Parker RX Fittings are always designed to match the respective Parker hoses, assuring an ideal combination and hose assemblies serving our customers needs reliably and efficient. Suitable for hose types with working pressure up to 43 MPa.
Parker RX Fittings are always designed to match the respective Parker hoses, assuring an ideal combination and hose assemblies serving our customers needs reliably and efficient.
Markets:
- Oil & Gas
- Marine
Feature/Benefits:
- The fitting series perfectly matches the respective thermoplastic hose types for optimal product functionality, reliability and service life.
- Made with high quality materials for corrosion resistance, and improved system availability due to less down times.
- Multiple sizes and connections are available for the right connection for your application.
Applications:
- Long length subsea umbilicals
- for use with chemical fluids
- for use with medium pressure, high temperature, low volumentric expansion hoses
- Suitable for hose types with working pressure up to 43 MPa (5.000 psi)
Technical Specifications
| Length: |
2,24, 2,17, 1,85, 1,77, 1,89 inch |
| Maximum Operating Pressure: |
6250 psi |
| Shape: |
Straight |
| Materials of Construction: |
Stainless Steel |

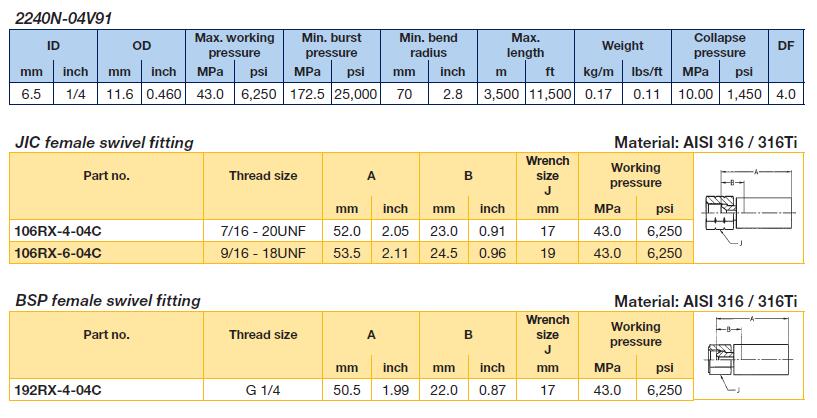

Crimped Thermoplastic Oil & Gas Hose Fittings, RX Series 型號(hào)
| Part |
Maximum Working Pressure (MPa) |
Style |
Fitting Type |
Connection Thread Size (inch) |
Length (mm) |
| 106RX-4-04C |
43 |
JIC female swivel fitting |
6 |
7/16 - 20UNF |
57 |
| 106RX-6-04C |
43 |
JIC female swivel fitting |
6 |
9/16 - 18UNF |
55 |
| 106RX-6-06C |
43 |
JIC female swivel fitting |
6 |
9/16 - 18UNF |
47 |
| 192RX-4-04C |
43 |
BSP female swivel fitting |
92 |
G 1/4 |
45 |
| 192RX-6-06C |
43 |
BSP female swivel fitting |
92 |
G3/8 |
48 |
|
