Parker 快速接頭和附件
Parker Quick Couplings and Accessories
Parker Quick Couplings

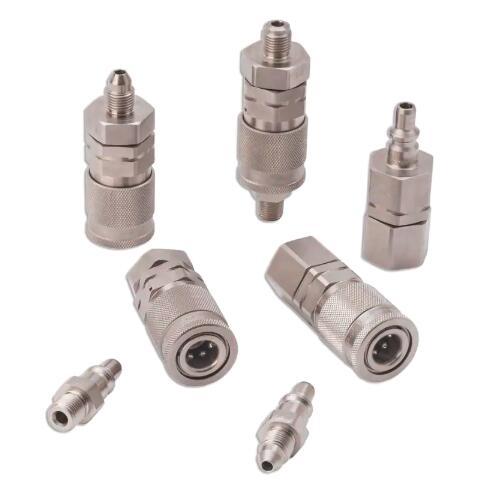

High Pressure Quick Couplings - Rogan Series
Quick couplings for quick and easy hose assembly connection. Couplings are available in a variety of connection styles with working pressures ranging from 15,000 psi to 30,000 psi.
Rogan series quick couplings are versatile connecting devices that permit easy and rapid joining of hose assemblies to your system. Couplings are available with multiple connection styles, including Type "M", high pressure, medium pressure and NPT connections. Working pressures range from 15,000 psi to 30,000 psi.
High Pressure Quick Couplings - Rogan Series
Markets:
- Waterblast
- Hydraulics
Features / Benefits:
- Working pressures from 15,000 psi to 30,000 psi
- Couplings with check-valves can withstand the full working pressure in the disconnected condition
- Each coupling is assembled and pressure tested to at least 5,000 psi above its maximum rated working pressure
Applications:
- For hydraulic systems and waterblast applications ranging from 15,000 to 30,000 psi
Technical Specifications
| Application: |
Marine, Oilfield, Waterblast |
| Brand: |
Parker |
| Diameter: |
6, 10 nom |
| Fitting Connection Type: |
NPT / NPTF, Type "M", Face Seal, Female Thread, Male Thread, Pipe Thread |
| Maximum Operating Pressure: |
2,070 bar, 30,000 psi, 103 to 207 MPa |
| Media: |
Hydraulic Fluid, Water, Lubricants, Chemical Fluids |
| Seal Material: |
Buna-N, Viton |
| Valve Type: |
Check |
| Coupling Half: |
Female, Male |
| Materials of Construction: |
Nickel Coated Steel |
| Connection Type: |
Type M", High Pressure, Medium Pressure, NPT or Low Angle Face Seal", Male or Female |
| Connection Size: |
1/4 to 1 inch |
| Overall Length: |
1.98 to 4.64 inch, 50.29 to 117.86 mm |
| Hex Size: |
.75 to 1.62 inch, 19.05 to 41.15 mm |
| Flow Diameter: |
.24 or .40 inch, 6 or 10 mm |
High Pressure Quick Couplings - Rogan Series 型號
| Part |
Coupling Half |
Connection Style |
Thread Type |
Connection Size (inch) |
Flow Diameter (inch) |
| HP006-0-A12 |
Coupler |
Type "M" |
Male |
3/4" - 16 UNF |
0.24 |
| HP006-0-A9 |
Coupler |
Type "M" |
Male |
9/16" - 18 UNF |
0.24 |
| HP006-0-HM4 |
Coupler |
High Pressure |
Male |
1/4" - 28 UNF-LH |
0.24 |
| HP006-0-HM9 |
Coupler |
High Pressure |
Male |
9/16" - 18 UNF-LH |
0.24 |
| HP006-0-LM6 |
Coupler |
Medium Pressure |
Male |
3/8" - 24 UNF-LH |
0.24 |
| HP006-0-NFB |
Coupler |
NPT |
Female |
1/4" - 18 |
0.24 |
| HP006-0-NFC |
Coupler |
NPT |
Female |
3/8" - 18 |
0.24 |
| HP006-0-NMB |
Coupler |
NPT |
Male |
1/4" - 18 |
0.24 |
| HP006-0-NMC |
Coupler |
NPT |
Male |
3/8" - 18 |
0.24 |
| HP006-0-NMD |
Coupler |
NPT |
Male |
1/2" - 14 |
0.24 |
| HP006-0-X13 |
Coupler |
Low Angle Face Seal |
Male |
9/16" - 18 |
0.24 |
| HP006-1-A12 |
Nipple without Check Valve |
Type "M" |
Male |
3/4" - 16 UNF |
0.24 |
| HP006-1-A9 |
Nipple without Check Valve |
Type "M" |
Male |
9/16" - 18 UNF |
0.24 |
| HP006-1-HM4 |
Nipple without Check Valve |
High Pressure |
Male |
1/4" - 28 UNF-LH |
0.24 |
| HP006-1-LM6 |
Nipple without Check Valve |
Medium Pressure |
Male |
3/8" - 24 UNF-LH |
0.24 |
| HP006-1-LM9 |
Nipple without Check Valve |
Medium Pressure |
Male |
9/16" - 18 UNF-LH |
0.24 |
| HP006-1-NMB |
Nipple without Check Valve |
NPT |
Male |
1/4" - 18 |
0.24 |
| HP006-1-NMC |
Nipple without Check Valve |
NPT |
Male |
3/8" - 18 |
0.24 |
| HP006-1-NMD |
Nipple without Check Valve |
NPT |
Male |
1/2" - 14 |
0.24 |
| HP006-1-X13 |
Nipple without Check Valve |
Low Angle Face Seal |
Male |
9/16" - 18 |
0.24 |
| HP006-2-A12 |
Nipple with Check Valve |
Type "M" |
Male |
3/4" - 16 UNF |
0.24 |
| HP006-2-A9 |
Nipple with Check Valve |
Type "M" |
Male |
9/16" - 18 UNF |
0.24 |
| HP006-2-HM4 |
Nipple with Check Valve |
High Pressure |
Male |
1/4" - 28 UNF-LH |
0.24 |
| HP006-2-LM6 |
Nipple with Check Valve |
Medium Pressure |
Male |
3/8" - 24 UNF-LH |
0.24 |
| HP006-2-NFB |
Nipple with Check Valve |
NPT |
Female |
1/4" - 18 |
0.24 |
| HP006-2-NFC |
Nipple with Check Valve |
NPT |
Female |
3/8" - 18 |
0.24 |
| HP006-2-NMB |
Nipple with Check Valve |
NPT |
Male |
1/4" - 18 |
0.24 |
| HP006-2-NMC |
Nipple with Check Valve |
NPT |
Male |
3/8" - 18 |
0.24 |
| HP006-2-NMD |
Nipple with Check Valve |
NPT |
Male |
1/2" - 14 |
0.24 |
| HP006-2-X13 |
Nipple with Check Valve |
Low Angle Face Seal |
Male |
9/16" - 18 |
0.24 |
| HP010-0-A12 |
Coupler |
Type "M" |
Male |
3/4" - 16 UNF |
0.4 |
| HP010-0-A16 |
Coupler |
Type "M" |
Male |
1" - 12 UNF |
0.4 |
| HP010-0-LM12 |
Coupler |
Medium Pressure |
Male |
3/4" - 16 UNF-LH |
0.4 |
| HP010-0-NFD |
Coupler |
NPT |
Female |
1/2" - 14 |
0.4 |
| HP010-0-NMD |
Coupler |
NPT |
Male |
1/2" - 14 |
0.4 |
| HP010-0-X23 |
Coupler |
Low Angle Face Seal |
Male |
3/4" - 16 |
0.4 |
| HP010-1-A12 |
Nipple without Check Valve |
Type "M" |
Male |
3/4" - 16 UNF |
0.4 |
| HP010-1-A16 |
Nipple without Check Valve |
Type "M" |
Male |
1" - 12 UNF |
0.4 |
| HP010-1-LM12 |
Nipple without Check Valve |
Medium Pressure |
Male |
3/4" - 16 UNF-LH |
0.4 |
| HP010-1-LM9 |
Nipple without Check Valve |
Medium Pressure |
Male |
9/16" - 18 UNF-LH |
0.4 |
| HP010-1-NMD |
Nipple without Check Valve |
NPT |
Male |
1/2" - 14 |
0.4 |
| HP010-1-X23 |
Nipple without Check Valve |
Low Angle Face Seal |
Male |
3/4" - 16 |
0.4 |
| HP010-2-A12 |
Nipple with Check Valve |
Type "M" |
Male |
3/4" - 16 UNF |
0.4 |
| HP010-2-A16 |
Nipple with Check Valve |
Type "M" |
Male |
1" - 12 UNF |
0.4 |
| HP010-2-NFD |
Nipple with Check Valve |
NPT |
Female |
1/2" - 14 |
0.4 |
| HP010-2-NMD |
Nipple with Check Valve |
NPT |
Male |
1/2" - 14 |
0.4 |
| HP010-2-X23 |
Nipple with Check Valve |
Low Angle Face Seal |
Male |
3/4" - 16 |
0.4 |
|
