Refrigeration Access Valves

Parker's access valves offer low cost access ports for refrigeration service. All fittings feature 1/4" SAE male flare access ports and are furnished with a finger tight quick seal cap.

Parker's access valves are designed to offer convenient, low cost access ports for refrigeration service. Access valves may be installed in any position on either high or low side for quick testing, pressure checking, purging or charging. All tees and crosses are tapped to receive an access core in all ?” SAE flare ends. Access valves with pipe connections have internal ODS solder cups. All valves are assembled with cap and one valve core. Refrigerant adapters are available with ?” SAE thread to SAE J2197 ACME thread.

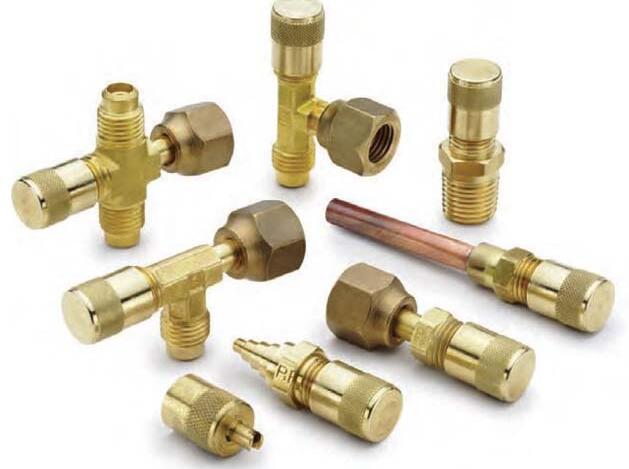

Refrigeration Access Valves

Markets:
- Refrigeration
- Air conditioning

Features/Benefits:
- All brass construction
- Low cost
- Machined in accordance with ARI 720
- Tees and crosses machined to receive an access core in all 1/4" SAE flare ends
- Access valves with pipe connections have internal ODS solder cups
- Adapters with ?” SAE thread to SAE J2197 ACME thread
- Furnished with finger tight quick seal caps
- Use on either high or low side

Applications:
- Pressure testing
- Purging
- Charging refrigeration lines

Technical Specifications

Refrigeration Access Valves 型號(hào)
