Parker Quick Couplings and Accessories
Parker Quick Couplings

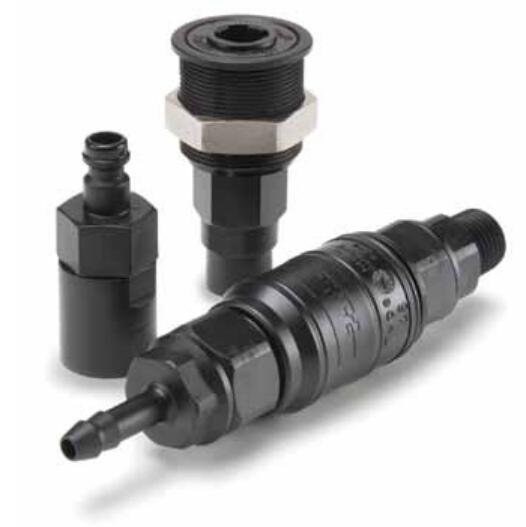

Thermoplastic (Acetal and Stainless) Quick Couplings, NPT / Hose Barb / Panel Mount, up to 145 psi - Spectrum Series Couplers

Parker's thermoplastic quick couplers and nipples are ideal for use across a broad range of low pressure applications where fluid or gas lines require fast and easy connection and disconnection.

Spectrum Series Couplers (thermoplastic) up to 145 psi connect with Spectrum Series Nipples.
Parker's Spectrum Series are low pressure, push-to-connect thermoplastic couplings. Couplers are valved while Nipples are available in both valved and unvalved versions. Couplers and nipples are light weight and compact in size with high flow and chemical compatibility.

Thermoplastic (Acetal and Stainless) Quick Couplings, NPT / Hose Barb / Panel Mount, up to 145 psi - Spectrum Series Couplers

Technical Characteristics:
- Sizes: 1/8" & 3/8"
- Materials: Body: Acetal, Spring: 316 Stainless Steel
- Port Ends: Female Pipe, Male Pipe, Hose Barb, Bulkhead Hose Barb
- Seal Options: Nitrile, Fluorocarbon
- Other Coupler Options Include: Panel Mount Couplers, Keyed Colors (Sleeves), PVDF & PEEK materials (contact us for availability)

Markets:
- Chemical Processing
- Food and Beverage
- Industrial
- Semi-conductor industry

Features/Benefits:
- Acetal body material and stainless springs are compatible with many chemicals
- Valved couplers and can be used with valved or unvalved nipples to be versatile as single or double shut off connections
- Light weight and compact with a variety of end fittings including bulk head and panel mount options
- More cost-effective than metal couplings

Applications:
- Fluid conveyance
- Food and beverage processing and packaging
- Process equipment
- Automation equipment
- Cooling lines

Technical Specifications

Thermoplastic (Acetal and Stainless) Quick Couplings, NPT / Hose Barb / Panel Mount, up to 145 psi - Spectrum Series Couplers 型號
