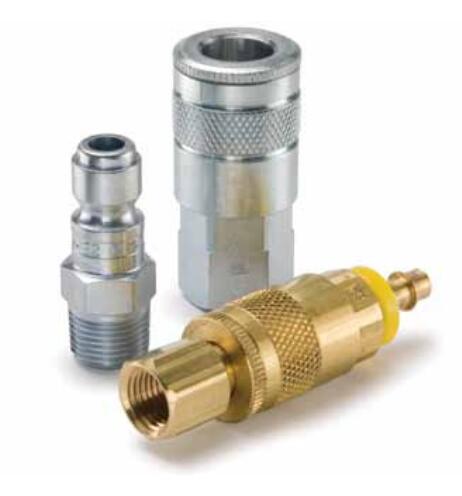

Parker Quick Couplings
Automotive Air Hose and Tool Quick Couplings (pneumatic, air) Tru-Flate Interchange - 10 Series Nipples
Parker's general purpose pneumatic, air quick couplers and nipples are ideal for use across a spectrum of applications where low pressure air or fluid lines require fast and easy connection and disconnection.
10 Series Nipples (pneumatic, air) up to 300 psi are the original Tru-Flate design. They connect with 10 Series Couplers. Parker's Tru-Flate are manual sleeve, single shut off quick couplings that are also known as the automotive interchange. Couplers and Nipples are available in a range of sizes and materials to be versatile for use in a variety of applications with air or fluid pressures up to 300 psi.
Automotive Air Hose and Tool Quick Couplings (pneumatic, air) Tru-Flate Interchange - 10 Series Nipples
Technical Characteristics:
- Sizes: 1/4”, 3/8", 1/2”
- Materials: Brass, Steel, Stainless Steel
- Port Ends: Female NPTF, Male NPTF, Standard Hose Barb, Push-Lok Hose Barb
Markets :
- Automotive service and repair
- Industrial
- Construction
- Factory automation
Features/Benefits :
- Original Tru-Flate design, first developed for the automotive industry
- Unvalved nipples connect with valved couplers for a single shut off connection
- Steel nipples are case hardened for durability
Applications:
- Air compressors
- Pneumatic air tools and hoses
- Water lines
- Grease guns
- Cleaning equipment
- Paint applicators
- Drop-down air lines
- Blow guns
Technical Specifications
| Brand: |
Parker |
| Body Size: |
1/4, 3/8, 1/2 inch |
| Maximum Operating Pressure: |
300 psi, 20 bar |
| Media: |
Low pressure fluids and compressed air, Low pressure fluids and compressed air |
| Valve Type: |
No Valve, Unvalved |
| Fitting Connection Type: |
Female Thread, Male Thread, Hose Barb |
| Interchange Type: |
Tru-Flate |
| Materials of Construction: |
Steel, Brass, Stainless steel |
| Maximum Operating Temperature: |
121 °C, 250 °F |
| Vacuum Pressure Rating: |
No |
| Coupling Half: |
Nipple |
| Minimum Operating Temperature: |
-40 °F |
| Application: |
Pneumatic |
| Plating Type: |
Zinc with clear trivalent chromate |
| Specifications Met: |
Tru-Flate design |
Automotive Air Hose and Tool Quick Couplings (pneumatic, air) Tru-Flate Interchange - 10 Series Nipples 型號
| Part |
Body Size (inch) |
Body Material |
Connection Type |
Thread Style |
Connection Thread Size (inch) |
Hose I.D. (inch) |
| 0C |
1/4 |
Steel |
NPTF |
Male |
1/8 - 27 |
na |
| 0E |
3/8 |
Steel |
NPTF |
Male |
1/4 - 18 |
na |
| 0F |
1/2 |
Steel |
NPTF |
Male |
3/8 - 18 |
na |
| 1C |
1/4 |
Steel |
NPTF |
Female |
1/8 - 27 |
na |
| 1E |
3/8 |
Steel |
NPTF |
Female |
1/4 - 18 |
na |
| 1F |
1/2 |
Steel |
NPTF |
Female |
3/8 - 18 |
na |
| 2C |
1/4 |
Steel |
NPTF |
Male |
1/4 - 18 |
na |
| 2C-E |
1/4 |
Steel |
NPTF |
Male |
3/8 - 18 |
na |
| 2E |
3/8 |
Steel |
NPTF |
Male |
3/8 - 18 |
na |
| 2F |
1/2 |
Steel |
NPTF |
Male |
1/2 - 14 |
na |
| 3C |
1/4 |
Steel |
NPTF |
Female |
1/4 - 18 |
na |
| 3C-E |
1/4 |
Steel |
NPTF |
Female |
3/8 - 18 |
na |
| 3E |
3/8 |
Steel |
NPTF |
Female |
3/8 - 18 |
na |
| 3F |
1/2 |
Steel |
NPTF |
Female |
1/2 - 14 |
na |
| 5E |
3/8 |
Steel |
Hose barb |
na |
na |
3/8 |
| 5EP |
3/8 |
Steel |
Push-Lok hose barb |
na |
na |
3/8 |
| 5F |
1/2 |
Steel |
Hose barb |
na |
na |
1/2 |
| 8C |
1/4 |
Steel |
Hose barb |
na |
na |
1/4 |
| 8CP |
1/4 |
Steel |
Push-Lok hose barb |
na |
na |
1/4 |
| 9C |
1/4 |
Steel |
Hose barb |
na |
na |
3/8 |
| 9CP |
1/4 |
Steel |
Push-Lok hose barb |
na |
na |
3/8 |
| B2C |
1/4 |
Brass |
NPTF |
Male |
1/4 - 18 |
na |
| B3C |
1/4 |
Brass |
NPTF |
Female |
1/4 - 18 |
na |
| S2C |
1/4 |
Stainless steel (303) |
NPTF |
Male |
1/4 - 18 |
na |
|
