Parker Quick Couplings

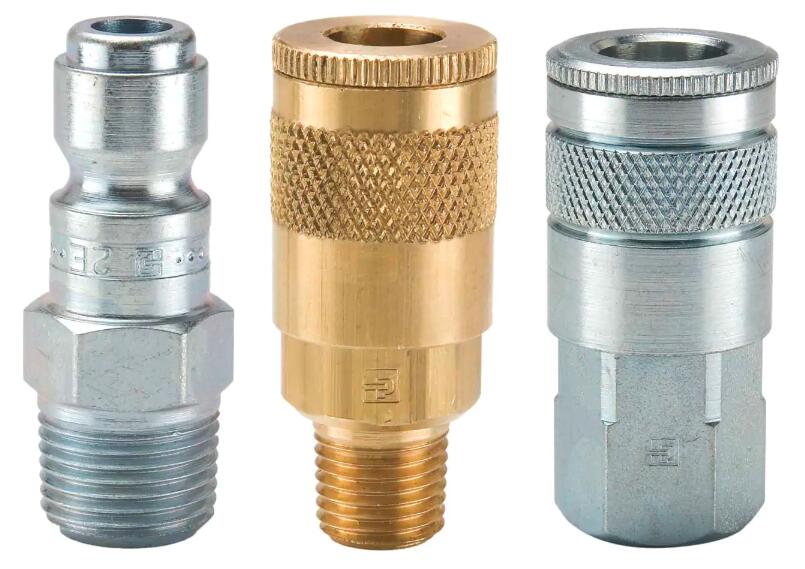

Automotive Air Hose and Tool Quick Couplings (pneumatic, air) Tru-Flate interchange - 10 Series Couplers
Parker's general purpose pneumatic, air quick couplers and nipples are ideal for use across a spectrum of applications where low pressure air or fluid lines require fast and easy connection and disconnection.
10 Series Couplers (pneumatic) up to 300 psi connect with 10 Series Nipples, Tru-Flate design, also known as the automotive interchange. They have manual sleeves and are single shut off quick couplings. Couplers have an integral sleeve guard to resist accidental disconnection. The steel tubular valve delivers high air flow with minimal pressure drop. Couplers and Nipples are available in a range of sizes and materials to be versatile for use in a variety of applications with air or fluid pressures up to 300 psi.
Automotive Air Hose and Tool Quick Couplings (pneumatic, air) Tru-Flate interchange - 10 Series Couple
Technical Characteristics:
- Sizes: 1/4”, 3/8", 1/2”
- Materials: Brass, Steel
- Port Ends: Female NPTF, Male NPTF, Standard Hose Barb, Push-Lok Hose Barb
- Seal Options: Nitrile, Ethylene Propylene, Fluorocarbon
Markets:
- Automotive service and repair
- Industrial
- Construction
- Factory automation
Features/Benefits:
- Original Tru-Flate design, developed for the automotive industry
- High flow valves with minimal pressure drop for efficient performance
- Sleeve guard helps to prevent accidental disconnection when in use
- Optional sleeve-lock adds additional protection against accidental disconnection
- Grip-ring sleeve version has a larger knurled diameter to provide easy operation when gloves are worn
- Stainless steel springs, locking balls and brass valves are also offered for corrosion resistance
- Steel sleeve option is available for increased durability
Applications:
- Air compressors
- Pneumatic air tools and hoses
- Water lines
- Grease guns
- Cleaning equipment
- Paint applicators
- Drop-down air lines
- Blow guns
Technical Specifications
| Media: |
Low pressure fluids and compressed air |
| Minimum Operating Temperature: |
-40 °F |
| Application: |
Pneumatic |
| Plating Type: |
Zinc with clear trivalent chromate |
| Sleeve Type: |
Manual |
| Lock Type: |
Locking balls |
| Maximum Operating Pressure: |
300 psi, 20 bar |
| Coupling Half: |
Coupler |
| Specifications Met: |
Tru-Flate design |
| Seal Material: |
Nitrile |
| Body Size: |
1/4, 3/8, 1/2 inch |
| Maximum Operating Temperature: |
250M2:N43 °F, 121 °C |
| Valve Type: |
High Flow Air |
| Brand: |
Parker |
| Fitting Connection Type: |
Female Thread, Male Thread, Hose Barb |
| Interchange Type: |
Tru-Flate |
| Materials of Construction: |
Steel, Brass |
| Vacuum Pressure Rating: |
No |
Automotive Air Hose and Tool Quick Couplings (pneumatic, air) Tru-Flate interchange - 10 Series Couplers 型號
| Part |
Body Size (inch) |
Body Material |
Connection Type |
Thread Style |
Connection Thread Size (inch) |
Connection Hose I.D. (inch) |
| 14 |
3/8 |
Steel |
NPTF |
Male |
3/8 - 18 |
na |
| 14-5B |
3/8 |
Steel |
Hose barb |
na |
na |
3/8 |
| 14-5BP |
3/8 |
Steel |
Push-Lok hose barb |
na |
na |
3/8 |
| 14-6B |
3/8 |
Steel |
Hose barb |
na |
na |
1/2 |
| 14C |
3/8 |
Steel |
NPTF |
Male |
1/4 - 18 |
na |
| 14F |
3/8 |
Steel |
NPTF |
Male |
1/2 - 14 |
na |
| 15 |
3/8 |
Steel |
NPTF |
Female |
3/8 - 18 |
na |
| 15C |
3/8 |
Steel |
NPTF |
Female |
1/4 - 18 |
na |
| 15F |
3/8 |
Steel |
NPTF |
Female |
1/2 - 14 |
na |
| B10-3B |
1/4 |
Brass |
Hose barb |
na |
na |
1/4 |
| B10-3BP |
1/4 |
Brass |
Push-Lok hose barb |
na |
na |
1/4 |
| B10-4B |
1/4 |
Brass |
Hose barb |
na |
na |
5/16 |
| B10-5B |
1/4 |
Brass |
Hose barb |
na |
na |
3/8 |
| B10-5BP |
1/4 |
Brass |
Push-Lok hose barb |
na |
na |
3/8 |
| B12 |
1/4 |
Brass |
NPTF |
Male |
1/4 - 18 |
na |
| B12A |
1/4 |
Brass |
NPTF |
Male |
1/8 - 27 |
na |
| B12E |
1/4 |
Brass |
NPTF |
Male |
3/8 - 18 |
na |
| B13 |
1/4 |
Brass |
NPTF |
Female |
1/4 - 18 |
na |
| B13A |
1/4 |
Brass |
NPTF |
Female |
1/8 - 27 |
na |
| B13E |
1/4 |
Brass |
NPTF |
Female |
3/8 - 18 |
na |
| B14 |
3/8 |
Brass |
NPTF |
Male |
3/8 - 18 |
na |
| B15 |
3/8 |
Brass |
NPTF |
Female |
3/8 - 18 |
na |
|
