Parker Quick Couplings

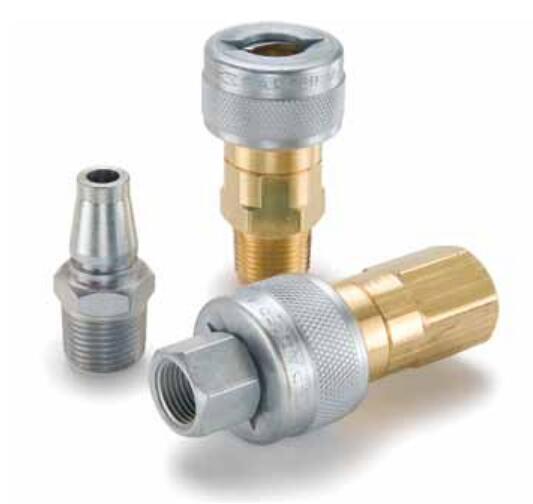

Twist Lock, Push to Connect, Air Tool and Breathing Air Quick Couplings (pneumatic) Schrader Interchange - TL Series Couplers

Parker's twist lock pneumatic, air quick couplers and nipples are ideal for use across a spectrum of applications where low pressure air or fluid lines require fast and easy connection and disconnection.

TL Series Couplers (pneumatic, air) up to 300 psi, connect with TL Series Nipples and are interchangeable with Schrader twist lock style couplings. They are push to connect, single shut off quick couplings. To disconnect, the coupler sleeve must be manually twisted 1/8 turn to release the nipple. It is designed to resist accidental disconnection. The tubular valve delivers high air flow with minimal pressure drop.
Twist lock style couplers are also used on breathing air lines and respirator equipment used in paint booths, chemical laboratories and similar environments.

Twist Lock, Push to Connect, Air Tool and Breathing Air Quick Couplings (pneumatic) Schrader Interchange - TL Series Couplers

Technical Characteristics:
- Sizes: 1/4”, 1/2”
- Materials: Brass body with steel sleeve
- Port Ends: Female NPTF, Male NPTF
- Seal Options: Nitrile, Ethylene Propylene, Fluorocarbon

Markets:
- Industrial
- Construction
- Automotive service and repair
- Factory automation
- Environmental health and safety


Features/Benefits:
- Twist lock design resists accidental disconnection
- Easy push to connect operation
- High flow valve with minimal pressure drop

Applications:
- Safety equipment, respirators
- Air compressors
- Pneumatic air tools and hoses
- Water lines
- Grease guns
- Cleaning equipment
- Paint applicators
- Drop-down air lines
- Blow guns

Technical Specifications

Twist Lock, Push to Connect, Air Tool and Breathing Air Quick Couplings (pneumatic) Schrader Interchange - TL Series Couplers 型號
