Parker Quick Couplings and Accessories
Parker Quick Couplings

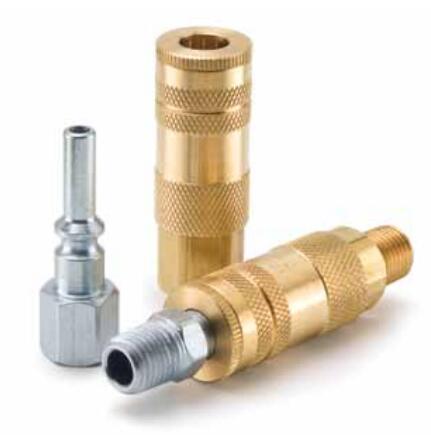

Air Hose and Tool Quick Couplings (pneumatic, air) Lincoln Long Stem Interchange - 70 Series Nipples
Parker's general purpose pneumatic, air quick couplers and nipples are ideal for use across a spectrum of applications where low pressure air or fluid lines require fast and easy connection and disconnection.
70 Series Nipples (pneumatic, air) up to 300 psi connect with 70 Series Couplers and interchange with the Lincoln Long Stem design. These are manual sleeve, single shut off quick couplings. Nipples are available in 1/4" size with a pressure rating of 300 psi.
Air Hose and Tool Quick Couplings (pneumatic, air) Lincoln Long Stem Interchange - 70 Series Nipples
Technical Characteristics:
- Size: 1/4”
- Material: Steel
- Port Ends: Female NPTF, Male NPTF
Markets:
- Industrial
- Construction
- Factory automation
- Automotive service and repair
Features/Benefits:
- Interchangeable with Lincoln Long Stem nipples
- Steel nipples are case hardened for durability
- Non-valved nipples mate with valved couplers for a single shut off connection
Applications:
- Air compressors
- Pneumatic air tools and hoses
- Water lines
- Grease guns
- Cleaning equipment
- Paint applicators
- Drop-down air lines
- Blow guns
- Paint applicators
Technical Specifications
| Maximum Operating Pressure: |
300 psi, 20 bar |
| Valve Type: |
No Valve, Unvalved |
| Brand: |
Parker |
| Fitting Connection Type: |
Female Thread, Male Thread |
| Interchange Type: |
Lincoln |
| Materials of Construction: |
Steel |
| Maximum Operating Temperature: |
121 °C, 250 °F |
| Vacuum Pressure Rating: |
No |
| Body Size: |
1/4 inch |
| Media: |
Low pressure fluids and compressed air |
| Coupling Half: |
Nipple |
| Minimum Operating Temperature: |
-40 °F |
| Application: |
Pneumatic |
| Specifications Met: |
Connects with Lincoln?s ?Long Stem? series |
Air Hose and Tool Quick Couplings (pneumatic, air) Lincoln Long Stem Interchange - 70 Series Nipples 型號(hào)
| Part |
Connection Thread Size (inch) |
Thread Style |
Connection Type |
| L2C |
1/4 - 18 |
Male |
NPTF |
| L3C |
1/4 - 18 |
Female |
NPTF |
|
