Parker Quick Couplings

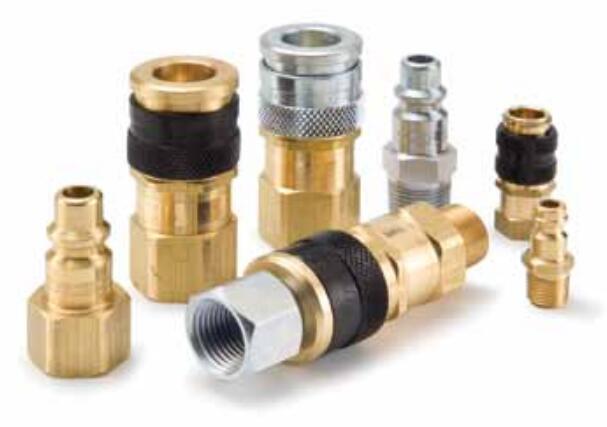

High Flow, Push to Connect, Air Tool Quick Couplings (pneumatic) Industrial Interchange - HF Series Couplers
Parker's high flow pneumatic, air quick couplers and nipples are ideal for use across a spectrum of applications where low pressure air or fluid lines require fast and easy connection and disconnection.
HF Series Couplers (pneumatic, air) up to 300 psi connect with Industrial Interchange Nipples except for the 1/8" size that connects only with HF Series Nipples. Parker's HF Series Couplers are push to connect, single shut off couplers that mate with nipples conforming to A-A-59439 (MIL-C-4109F, ISO 6150-B) standards. These couplers have a slim profile and are corrosion resistant with stainless steel locking balls and valve spring. The sleeve guard protects against accidental disconnection. Heavy duty version has steel sleeve and valve body. Couplers are available in a range of sizes and materials suitable for pressure up to 300 psi.
High Flow, Push to Connect, Air Tool Quick Couplings (pneumatic) Industrial Interchange - HF Series Couplers
Technical Characteristics:
- Sizes: 1/8” – 1/2”
- Materials: Brass, Steel, Stainless Steel
- Port Ends: Female NPTF, Female NPSF, Male NPTF, Standard Hose Barb, Push-Lok Hose Barb
- Seal Options: Nitrile, Ethylene Propylene, Fluorocarbon
Markets:
- Industrial
- Construction
- Automotive service and repair
- Factory automation
Features/Benefits:
- Corrosion resistant valve with stainless steel locking balls and valve spring
- Heavy duty version has steel body and sleeve for durability
- Easy push to connect operation
- Slim profile is compact in confined spaces
- Sleeve guard protects against accidental disconnection
- Sizes 1/4" through 1/2" connect with nipples conforming to A-A-59439 (MIL-C-4109F, ISO 6150-B) standards for global interchangeability.
Applications:
- Air compressors
- Pneumatic air tools and hoses
- Water lines
- Grease guns
- Cleaning equipment
- Paint applicators
- Drop-down air lines
- Blow guns
Technical Specifications
| Body Size: |
1/8, 1/4, 3/8, 1/2 inch |
| Application: |
Pneumatic, high flow, Pneumatic |
| Maximum Operating Pressure: |
Up to 300 psi, Up to 20 bar |
| Media: |
Low pressure fluids and compressed air, Low pressure fluids and compressed air |
| Valve Type: |
High Flow Air, Tubular |
| Brand: |
Parker |
| Fitting Connection Type: |
Female Thread, Male Thread, Hose Barb |
| Interchange Type: |
ISO 6150 B |
| Materials of Construction: |
Brass |
| Maximum Operating Temperature: |
121 °C, 250 °F |
| Vacuum Pressure Rating: |
No |
| Coupling Half: |
Coupler |
| Minimum Operating Temperature: |
-40 °F |
| Seal Material: |
Nitrile |
| Plating Type: |
Zinc with clear trivalent chromate on steel body and sleeve |
| Specifications Met: |
Connects with A-A-59439 (MIL-C-4109F, ISO 6150-B |
| Sleeve Type: |
Push to connect |
| Lock Type: |
Locking balls |
High Flow, Push to Connect, Air Tool Quick Couplings (pneumatic) Industrial Interchange - HF Series Couplers 型號
|
