Parker Quick Couplings and Accessories
Parker Quick Couplings

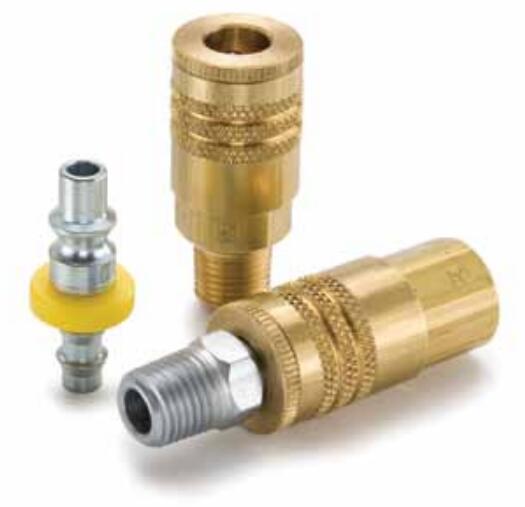

Air Hose and Tool Quick Couplings (pneumatic, air) ARO 210 Interchange - 50 Series Couplers

Parker's general purpose pneumatic, air quick couplers and nipples are ideal for use across a spectrum of applications where low pressure air or fluid lines require fast and easy connection and disconnection.

50 Series Couplers (pneumatic, air) up to 300 psi connect with 50 Series Nipples and are interchangeable with the ARO 210 couplers. These are manual sleeve, single shut off quick couplings. Couplers have an integral sleeve guard to resist accidental disconnection. The tubular valve delivers high air flow with minimal pressure drop. Couplers are available in 1/4" size with a pressure rating of 300 psi.

Air Hose and Tool Quick Couplings (pneumatic, air) ARO 210 Interchange - 50 Series Couplers

Technical Characteristics:
- Size: 1/4”
- Material: Brass
- Port Ends: Female NPTF, Male NPTF, Push-Lok Hose Barb
- Seal Options: Nitrile, Ethylene Propylene, Fluorocarbon

Markets:
- Furniture building
- Textile industry
- Industrial
- Construction
- Factory automation

Features/Benefits:
- Interchangeable with ARO 210 couplers and HA Series couplers
- High flow steel valves with minimal pressure drop for efficient performance
- Sleeve guard helps to prevent accidental disconnection when in use
- Optional sleeve-lock adds protection against accidental disconnection
- Stainless steel springs, locking balls and brass valves are also offered for corrosion resistance

Applications:
- Air compressors
- Pneumatic air tools and hoses
- Water lines
- Grease guns
- Cleaning equipment
- Paint applicators
- Drop-down air lines
- Blow guns
- Paint applicators

Technical Specifications

Air Hose and Tool Quick Couplings (pneumatic, air) ARO 210 Interchange - 50 Series Couplers 型號
