Parker Quick Couplings and Accessories
Parker Quick Couplings

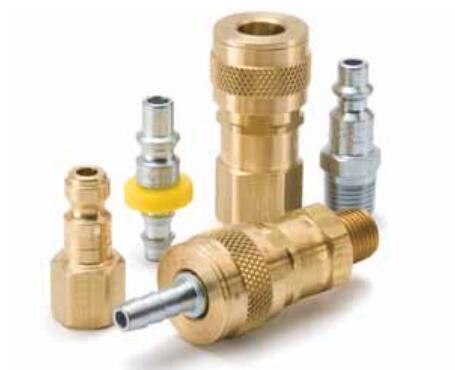

Push to Connect Air Hose and Tool, Multiple Interchange Quick Couplings (pneumatic, air) - UC (Universal) Series Couplers

Parker's general purpose pneumatic, air quick couplers and nipples are ideal for use across a spectrum of applications where low pressure air or fluid lines require fast and easy connection and disconnection.

UC Series Universal Couplers (pneumatic, air) up to 150 psi connect with Industrial Interchange, 10 Series (Tru-Flate), and 50 Series (ARO 210) style nipples. Parker's UC Series are push-to-connect, single shut off quick couplings. While the best performance is obtained by matching like series couplers and nipples, the Universal Coupler permits multiple series nipples to mate with one coupler. Couplers are available in 1/4" size only with a pressure rating of 150 psi.

Push to Connect Air Hose and Tool, Multiple Interchange Quick Couplings (pneumatic, air) - UC (Universal) Series Couplers

Technical Characteristics:
- Size: 1/4”
- Material: Brass
- Port Ends: Female NPSF, Male NPTF
- Seal Options: Nitrile, Ethylene Propylene, Fluorocarbon

Markets:
- Industrial
- Construction
- Automotive service and repair
- Factory automation

Features/Benefits:
- Connects with three nipple styles - Industrial Interchange, 10 Series (Tru-Flate), 50 Series (ARO 210 style)
- Push to connect for easy single handed operation
- High flow valve with minimal pressure drop for efficient performance
- Sleeve guard helps to prevent accidental disconnection when in use

Applications:
- Air compressors
- Pneumatic air tools and hoses
- Water lines
- Grease guns
- Cleaning equipment
- Paint applicators
- Drop-down air lines
- Blow guns

Technical Specifications

Push to Connect Air Hose and Tool, Multiple Interchange Quick Couplings (pneumatic, air) - UC (Universal) Series Couplers 型號
