Parker派克ST系列直通快速接頭 高流量（無閥）-黃銅，不銹鋼，鋼快速接頭（液壓，流體）高達6700 psi
Parker 快速接頭和附件 Parker Quick Couplings and Accessories
Parker Quick Couplings

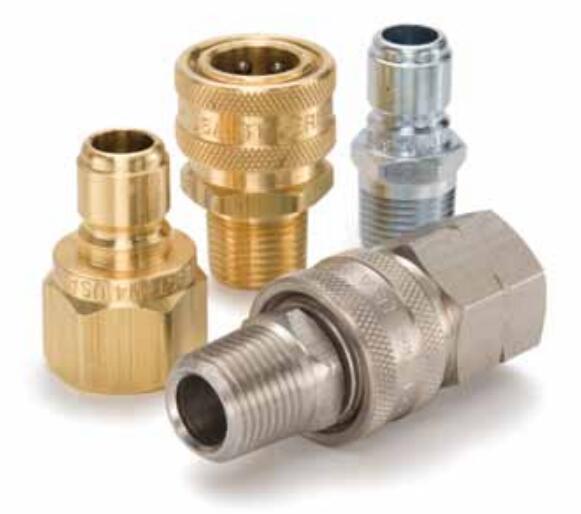

High Flow (Unvalved) - Brass, Stainless Steel, Steel Quick Couplings (hydraulic, fluids) up to 6700 psi - ST Series Couplers
派克的ST系列是無閥快速接頭，帶有手動套筒，可提供高流量和低壓降。光滑，直通的流路可輕松清潔，其中同一根管路用于多種介質。這些直通接頭和公頭有多種尺寸和材料可供選擇，壓力范圍高達6700 psi。派克的高流量快速接頭和公頭沒有閥門，可用于需要快速簡便連接和斷開流體管路，同時提供最大流量和低壓降的場合。最高6700 psi的ST系列高流量接頭（液壓，流體）與ST系列高流量接頭連接。Parker's high flow quick couplers and nipples are unvalved for use where fluid lines require fast and easy connection and disconnection while providing maximum flow and low pressure drop. ST Series high flow Couplers (hydraulic, fluids) up to 6700 psi connect with ST Series high flow Nipples.
Parker's ST Series are unvalved quick couplings with manual sleeves providing high flow and low pressure drop. The smooth, straight through flow path allows easy cleaning where the same lines are used for more than one media. These straight through couplers and nipples are available in a wide range of sizes and materials for pressure ranges up to 6700 psi.
High Flow (Unvalved) - Brass, Stainless Steel, Steel Quick Couplings (hydraulic, fluids) up to 6700 psi - ST Series Couplers
Parker派克ST系列直通快速接頭 高流量（無閥）-黃銅，不銹鋼，鋼快速接頭（液壓，流體）高達6700 psi
Technical Characteristics:
- Sizes: 1/8” – 1-1/2”
- Materials: Brass, 303 Stainless Steel
- Port Ends: Female NPTF, Male NPTF
- Seal Options: Nitrile, EPR, Fluorocarbon, Neoprene
Other Coupler options include: Sleeve lock
Markets:
- Industrial
- Construction
- Commercial Cleaning
- Agriculture
Features/Benefits:
- Multi-purpose high flow coupling, widely used in varied applications
- Wide range of sizes and material options
- Optional coupler sleeve lock helps to prevent accidental disconnection
- Functionally interchanges with similar straight through quick couplings
Applications:
- High pressure water
- Steam washers
- Carpet cleaners
Technical Specifications
| Body Size: |
1/8, 1/4, 3/8, 1/2, 3/4, 1, 1 1/4, 1 1/2 inch |
| Maximum Operating Pressure: |
Up to 6700 psi, Up to 462 bar |
| Maximum Operating Temperature: |
Up to 204 °C, Up to 400 °F, 250 to 400 °F |
| Materials of Construction: |
Brass, Stainless steel |
| Valve Type: |
No Valve, Unvalved |
| Brand: |
Parker |
| Vacuum Pressure Rating: |
No |
| Fitting Connection Type: |
Female Thread, Male Thread |
| Flow Rate: |
3 to 100 Gal/min |
| Seal Material: |
Nitrile, Fluorocarbon |
| Media: |
Hydraulic |
| Coupling Half: |
Coupler |
| Minimum Operating Temperature: |
-40 to -15 °F |
| Sleeve Type: |
Manual |
| Lock Type: |
Locking balls |
| Connection Type: |
NPTF |
| Application: |
Hydraulic, high flow |
High Flow (Unvalved) - Brass, Stainless Steel, Steel Quick Couplings (hydraulic, fluids) up to 6700 psi - ST Series Couplers 型號
| Part |
Maximum Working Pressure (psi) |
Body Size (inch) |
Body Material |
Thread Style |
Connection Thread Size (inch) |
| BST-1 |
2500 |
1/8 |
Brass |
Female |
1/8 - 27 |
| BST-10 |
1700 |
1 1/4 |
Brass |
Female |
1 1/4 - 11 1/2 |
| BST-12 |
1400 |
1 1/2 |
Brass |
Female |
1 1/2 - 11 1/2 |
| BST-1M |
2500 |
1/8 |
Brass |
Male |
1/8 - 27 |
| BST-2 |
5200 |
1/4 |
Brass |
Female |
1/4 - 18 |
| BST-2M |
5200 |
1/4 |
Brass |
Male |
1/4 - 18 |
| BST-3 |
2700 |
3/8 |
Brass |
Female |
3/8 - 18 |
| BST-3M |
2700 |
3/8 |
Brass |
Male |
3/8 - 18 |
| BST-4 |
2200 |
1/2 |
Brass |
Female |
1/2 - 14 |
| BST-4M |
2200 |
1/2 |
Brass |
Male |
1/2 - 14 |
| BST-6 |
1700 |
3/4 |
Brass |
Female |
3/4 - 14 |
| BST-6M |
1700 |
3/4 |
Brass |
Male |
3/4 - 14 |
| BST-8 |
1200 |
1 |
Brass |
Female |
1 - 11 1/2 |
| BST-8M |
1200 |
1 |
Brass |
Male |
1 - 11 1/2 |
| SSST-2Y |
6700 |
1/4 |
316 stainless steel |
Female |
1/4 - 18 |
| SSST-3Y |
5500 |
3/8 |
316 stainless steel |
Female |
3/8 - 18 |
| SST-1 |
4200 |
1/8 |
303 stainless steel |
Female |
1/8 - 27 |
| SST-1M |
4200 |
1/8 |
303 stainless steel |
Male |
1/8 - 27 |
| SST-2 |
6700 |
1/4 |
303 stainless steel |
Female |
1/4 - 18 |
| SST-2M |
6700 |
1/4 |
303 stainless steel |
Male |
1/4 - 18 |
| SST-3 |
5500 |
3/8 |
303 stainless steel |
Female |
3/8 - 18 |
| SST-3M |
5500 |
3/8 |
303 stainless steel |
Male |
3/8 - 18 |
| SST-4 |
3000 |
1/2 |
303 stainless steel |
Female |
1/2 - 14 |
| SST-4M |
3000 |
1/2 |
303 stainless steel |
Male |
1/2 - 14 |
| SST-6 |
3000 |
3/4 |
303 stainless steel |
Female |
3/4 - 14 |
| SST-6M |
3000 |
3/4 |
303 stainless steel |
Male |
3/4 - 14 |
| SST-8 |
1700 |
1 |
303 stainless steel |
Female |
1 - 11 1/2 |
| SST-8M |
1700 |
1 |
303 stainless steel |
Male |
1 - 11 1/2 |
|
