Parker Quick Couplings

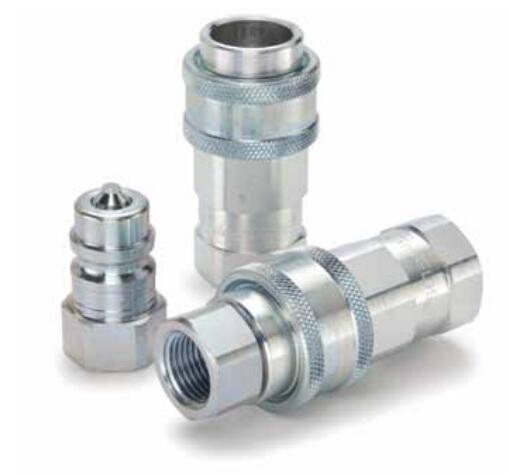

High Pressure, Steel Quick Couplings with Female NPTF, BSPP, ORB Ports (hydraulic) up to 6000 psi - SM Series Couplers
Parker's general purpose quick couplers and nipples are ideal for use in hydraulic applications where fluid lines require fast and easy connection and disconnection.
SM Series Couplers (hydraulic) up to 6000 psi connect with SM Series Nipples. Parker's SM Series are double shut-off quick couplings with manual sleeves and poppet valves. Female port end options include NPTF, O-ring Boss, and BSPP styles.
High Pressure, Steel Quick Couplings with Female NPTF, BSPP, ORB Ports (hydraulic) up to 6000 psi - SM Series Couplers
Technical Characteristics:
- Sizes: 1/4” – 3/4”
- Material: Steel
- Port Ends: Female NPTF, Female ORB, Female BSPP
- Seal Options: Nitrile, EPR, Fluorocarbon, Neoprene
- Other Coupler options include: Sleeve Lock
Markets:
- Industrial
- Construction
- Agriculture
Features/Benefits:
- Poppet valves have captive seals to minimize seal washout
- Standard end configurations include Female NPTF, Female ORB, Female BSPP
Applications:
- Industrial hydraulic lines
- Mobile equipment
Technical Specifications
| Body Size: |
1/4, 1/2, 3/4 inch |
| Maximum Operating Pressure: |
Up to 6000 psi, Up to 414 bar |
| Maximum Operating Temperature: |
121 °C, 250 °F |
| Materials of Construction: |
Steel |
| Vacuum Pressure Rating: |
No |
| Flow Rate: |
3 to 28 Gal/min |
| Fitting Connection Type: |
Female Thread |
| Seal Material: |
Nitrile |
| Media: |
Hydraulic |
| Coupling Half: |
Coupler |
| Minimum Operating Temperature: |
-40 °F |
| Sleeve Type: |
Manual sleeve |
| Lock Type: |
Locking balls |
| Thread Size: |
Female |
| Connection Type: |
NPTF, BSPP, NPTF , ORB |
| Plating Type: |
Zinc with clear trivalent chromate |
| Application: |
Hydraulic, general purpose |
High Pressure, Steel Quick Couplings with Female NPTF, BSPP, ORB Ports (hydraulic) up to 6000 psi - SM Series Couplers 型號
|
