Parker派克FET系列螺紋快速接頭 最高可連接6000 psi的互換，非泄漏，重型，高壓液壓快速接頭
Parker 快速接頭和附件- Parker Quick Couplings and Accessories Parker Quick Couplings
Thread to Connect Interchange, Non-Spill, Heavy Duty, High Pressure Quick Couplings (hyd) up to 6000 psi - FET Series Nipples

Parker的用于連接互換，非泄漏，帶壓操作快速接頭螺紋是重型的，適用于高壓，高脈沖液壓應用，其中流體管線需要與類似的連接器連接。Parker派克FET系列接頭（液壓）最高可達6000 psi，可與FET系列接頭連接，并且可以用類似的螺紋互換，以連接其他制造商的接頭。端口選項包括Code 62法蘭頭和墊片。派克的FET系列是高壓（6000 psi）無泄漏接頭。連接器套筒和公頭主體必須手動擰在一起以進行連接。這些堅固的快速接頭 由高強度材料制成，并且耐沖擊。母頭和公頭都具有不銹鋼防溢漏閥，可以在最高5000 psi的殘余壓力下連接，在最高2500 psi的殘余壓力下可以斷開。當外部紅色O形圈被套管完全覆蓋時，從視覺上指示已完成連接。

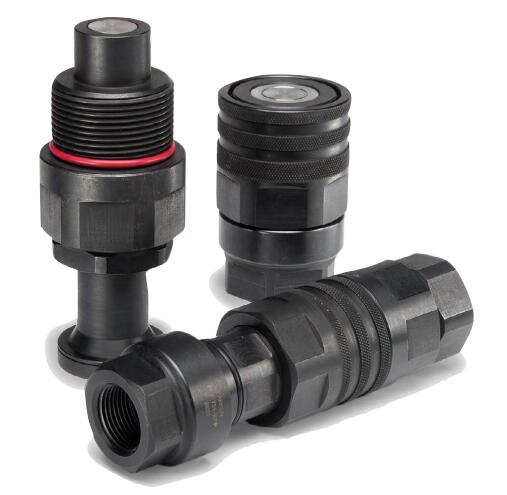

Parker FET Series are high pressure (6000 psi), non-spill hydraulic quick connect couplings
Thread to Connect Interchange, Non-Spill, Heavy Duty, High Pressure Quick Couplings (hyd) up to 6000 psi

FET Series Nipples

Parker's thread to connect interchange, non-spill, connect under pressure hydraulic quick couplers and nipples are heavy duty for use in high pressure, high impulse hydraulic applications where fluid lines require connection with similar couplings. FET Series Nipples (hydraulic) up to 6000 psi connect with FET Series Couplers and are interchangeable with similar threaded hydraulic couplings by other manufacturers. Port options include Code 62 flange head and pad. Parker's FET Series are high pressure (6000 psi) non-spill, heavy duty quick connect couplings. The coupler sleeve and nipple body must be manually threaded together to make the connection. These rugged couplings are built with high strength materials and are impulse resistant. The coupler and nipple have stainless steel non-spill valves and can be connected under residual pressure up to 5000 psi and disconnected under residual pressure up to 2500 psi. When the external red O-ring is fully covered by the sleeve, it visually indicates that a complete connection has been made.

技術特點：
- 尺寸：3/8“至2”
- 材料：涂有FNC涂層的鋼，以增強耐用性，不銹鋼閥（2“具有鋼閥）
- 端口端：NPTF母頭，ORB母頭，代碼62法蘭頭和墊片
- 密封：丁腈橡膠，聚氨酯

市場：
- 石油和天然氣
- 建筑
- 采礦

特點/優點：
- 可互換與其他廠家同類線程連接接頭
- 尺寸3/8“ - 1/1/2”有不銹鋼閥門，2“閥門鋼
- 當外部紅色O形圈被套管完全覆蓋時，它可以直觀地表明已完成連接
- 在殘余壓力下連接和斷開連接
- 高強度材料在要求苛刻的應用中具有抗脈沖性能

應用：
- 陸上鉆井和油田設備
- 高脈沖移動回路
- 挖掘機附件
- 隧道掘進

Technical Characteristics:
- Sizes: 3/8” to 2"
- Material: Steel with FNC coating for extended durability, stainless steel valve (2" has steel valve)
- Port Ends: Female NPTF, Female ORB, Code 62 flange head and pad
- Seal: Nitrile, polyurethane

Markets:
- Oil and Gas
- Construction
- Mining

Features/Benefits:
- Interchangeable with similar thread to connect couplings by other manufacturers
- Sizes 3/8" - 1/1/2" have stainless steel valves, 2" valve is steel
- When the external red color O-ring is fully covered by the sleeve, it provides visual indication that a complete connection has been made.
- Connect and disconnect under residual pressure
- High strength materials are impulse resistant for demanding applications

Applications:
- On-shore drilling and oil field equipment
- High impulse mobile circuits
- Excavator attachments
- Tunnel boring

Technical Specifications

Thread to Connect Interchange, Non-Spill, Heavy Duty, High Pressure Quick Couplings (hyd) up to 6000 psi -
FET Series Nipples 型號
