派克60系列多功能液壓，流體，氣體和蒸汽快速接頭 最高5000 psi的ISO 7241系列B互換
Parker 快速接頭和附件 快速接頭
Parker Quick Couplings and Accessories
Parker Quick Couplings

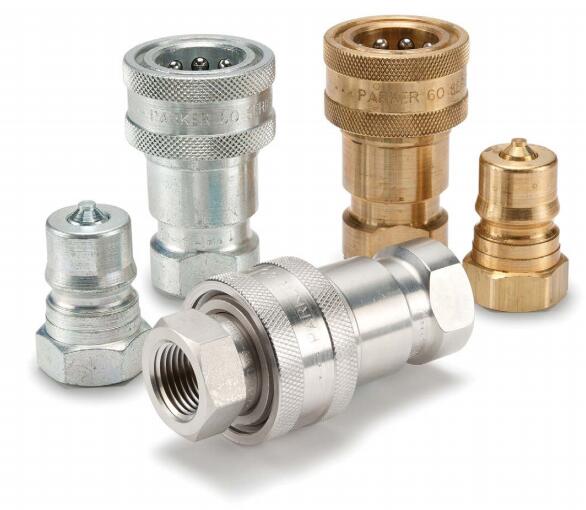

ISO 7241 series B Interchange, Multi-Purpose Quick Couplings (hydraulic, fluids, gas, steam) up to 5000 psi - 60 Series Nipples

派克的通用快速接頭用途廣泛，可用于需要快速，輕松連接和斷開流體，氣體或蒸汽管線的各種應用。Parker's general purpose quick couplers and nipples are versatile for use across a spectrum of applications where fluid, gas or steam lines require fast and easy connection and disconnection.最高5000 psi的60系列接頭（液壓，流體，氣體，蒸汽），與ISO 7241系列B，60系列連接器連接。派克60系列具有雙截止提升閥，并且可以與其他符合ISO 7241系列B的快速斷開閥互換。 這些通用型快速接頭具有多種尺寸和材料，可廣泛用于多種流體，包括高流量高溫蒸汽。派克的60系列具有多種用途，可用于各種應用，壓力高達5000 psi。

ISO 7241 series B Interchange, Multi-Purpose Quick Couplings (hydraulic, fluids, gas, steam) up to 5000 psi - 60 Series Nipples

技術特征：
- 尺寸：1/8” – 2-1 / 2”
- 材料：鋼，黃銅，302不銹鋼，316不銹鋼
- 端口端：NPTF內螺紋，ORB內螺紋
- 密封選項：丁腈，EPR，碳氟化合物，氯丁橡膠
- 連接器選項包括：套筒鎖，閥門執行器，蒸汽兼容性

市場：
- 工業
- 建筑
- 化學加工
- 商業清潔
- 農業

特點/優點：
- 與其他制造商的符合ISO 7241系列B的聯軸器在全球范圍內可互換
- 通用型聯軸器在各種應用中
- 鋼制連接器具有堅固的襯套，以提高強度和耐用性
- 金屬閥門限位器阻止流量檢查以提供穩定的性能
- 蒸汽版本的連接器具有可承受高溫的乙烯丙烯密封，并且3/8“帶有握環套，可在戴手套時輕松操作
- 黃銅連接器具有雙O形圈，可實現冗余密封，不銹鋼鎖緊球可防止腐蝕
- 316不銹鋼連接器具有氟碳密封件，以實現化學兼容性
- 可選的連接器套筒鎖有助于防止意外斷開連接

應用：
- 工業液壓管線
- 食品和化學加工
- 水和冷卻液管線
- 高壓流體輸送
- 高溫流體輸送
- 移動設備
- 清潔設備
- 干洗
- 蒸汽系統

60 Series Nipples (hydraulic, fluids, gas, steam) up to 5000 psi, connect with ISO 7241 series B, 60 Series Couplers. Parker's 60 Series have double shut-off poppet valves and are interchangeable with other quick disconnects complying with ISO 7241 series B. These general purpose quick couplings are available in a wide range of sizes and materials to be versatile for use with several fluids, including high temperature steam. Parker's 60 Series is multi-purpose for a variety of applications and pressures up to 5000 psi.

Technical Characteristics:
- Sizes: 1/8” – 2-1/2”
- Materials: Steel, Brass, 302 Stainless Steel, 316 Stainless Steel
- Port Ends: Female NPTF, Female ORB
- Seal Options: Nitrile, EPR, Fluorocarbon, Neoprene

Markets:
- Industrial
- Construction
- Chemical Processing
- Commercial Cleaning
- Agriculture

Features/Benefits:
- Globally interchangeable with other manufacturer's couplings complying to ISO 7241 series B
- Multi-purpose coupling, widely used in varied applications
- Steel nipples have a hardened body for strength and durability
- 316 Stainless steel nipples have Fluorocarbon seals for chemical compatibility
- Metal valve stop prevents flow checking to provide steady performance
- Nipple options include high temperature steam compatibility

Applications:
- Industrial hydraulic lines
- Food and chemical processing
- Water and coolant lines
- High pressure fluid transfer
- High temperature fluid transfer
- Mobile equipment
- Cleaning equipment
- Dry cleaning
- Steam and some gases

Technical Specifications

技術指標

ISO 7241 series B Interchange, Multi-Purpose Quick Couplings (hydraulic, fluids, gas, steam) up to 5000 psi - 60 Series Nipples 型號
