Parker 快速接頭和附件
Parker Quick Couplings and Accessories
Parker Quick Couplings

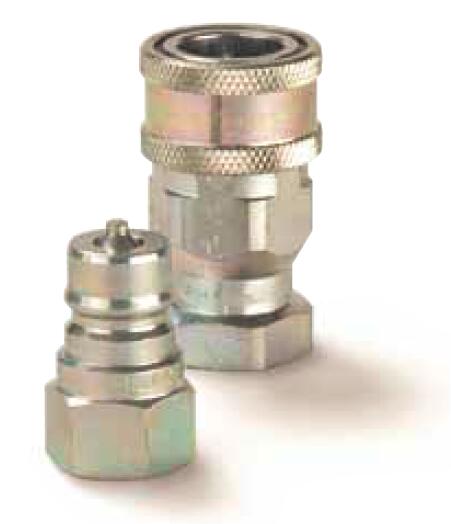

ISO 7241 series A Interchange, Steel Quick Couplings (hydraulic) up to 5000 psi - 6600 Series Couplers
PARKER 6600 Series Hydraulic Quick Connect Coupling Quick Couplings ISO 7241 Series A
Parker派克的6600系列具有雙關斷提升閥，并且可以與其他符合ISO 7241系列A的快速斷開閥互換。這些鋼制連接器和油嘴具有各種尺寸，可用于壓力范圍高達5000 psi的應用。最高5000 psi的6600系列油嘴（液壓），與ISO 7241系列A，6600系列快速連接。
Parker's 6600 Series have double shut-off poppet valves and are interchangeable with other quick disconnects complying with ISO 7241 series A. These steel couplers and nipples are available in a range of sizes for applications with pressure ranges up to 5000 psi. Parker's hydraulic quick couplers and nipples are ideal for use in applications where fluid lines require fast and easy connection and disconnection. 6600 Series Couplers (hydraulic) up to 5000 psi, connect with ISO 7241 series A, 6600 Series Nipples.
ISO 7241 series A Interchange, Steel Quick Couplings (hydraulic) up to 5000 psi - 6600 Series Couplers
技術特性：
- 尺寸：1/4“ – 1”
- 材料：鋼
- 端口端：NPTF母頭，ORB母頭
- 密封選項：丁腈，EPR，碳氟化合物，氯丁橡膠
市場：
- 建筑
- 移動設備
- 農業
功能/優點：
- 與其他符合ISO 7241系列A的制造商的快速接頭可在全球互換
- 鋼制奶嘴主體經過硬化處理，經久耐用
應用：
- 液壓油傳輸
- 卡車掛車連接
- 移動應用
- 附件
Technical Characteristics:
- Sizes: 1/4” – 1”
- Materials: Steel
- Port Ends: Female NPTF, Female ORB
- Seal Options: Nitrile, EPR, Fluorocarbon, Neoprene
- Other Coupler options include: Sleeve Lock
Markets:
- Construction
- Mobile equipment
- Agriculture
Features/Benefits:
- Globally interchangeable with other manufacturer's quick couplings complying to ISO 7241 series A
- Steel coupler sleeve is hardened for durability
- Optional sleeve lock helps to prevent accidental disconnection
Applications:
- Hydraulic fluid transfer
- Truck trailer connections
- Mobile applications
- Attachments
Technical Specifications
| Body Size: |
1/4 to 1 inch |
| Maximum Operating Pressure: |
Up to 5000 psi, Up to 345 bar |
| Application: |
Hydraulic, general purpose |
| Brand: |
Parker |
| Fitting Connection Type: |
Female Thread |
| Interchange Type: |
ISO 7241-1 Series A |
| Materials of Construction: |
Steel |
| Maximum Operating Temperature: |
121 °C, 250 °F |
| Vacuum Pressure Rating: |
No |
| Flow Rate: |
Up to 50 Gal/min |
| Seal Material: |
Nitrile |
| Media: |
Hydraulic |
| Specifications Met: |
ISO 7241-1 series A |
| Coupling Half: |
Coupler |
| Minimum Operating Temperature: |
-40 °F |
| Valve Type: |
Poppet |
| Sleeve Type: |
Manual sleeve |
| Lock Type: |
Locking balls |
| Thread Size: |
Female |
| Connection Type: |
NPTF | ORB |
| Plating Type: |
Zinc with clear trivalent chromate |
ISO 7241 series A Interchange, Steel Quick Couplings (hydraulic) up to 5000 psi - 6600 Series Couplers 型號
|
