Parker派克FEM系列平面液壓快速接頭 HTMA（ISO 16028）無泄漏，齊平快速接頭 最高壓力4568 psi
Parker 快速接頭和附件 Parker Quick Couplings and Accessories Parker Quick Couplings

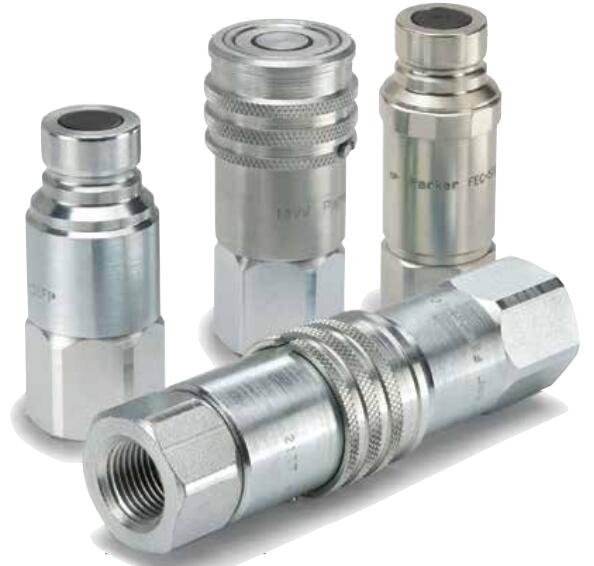

HTMA (ISO 16028) Non-Spill, Flush Face Quick Couplings (hydraulic, up to 4568 psi) - FEM Series Couplers

高達4568 psi的FEM系列液壓快速接頭，達到或超過液壓工具制造商協會（HTMA-ISO 16028）標準的設計和性能要求，并與FEM / FEC系列接頭相連接。FEC接頭可在壓力下進行連接。派克的FEM系列為雙截止，無泄漏快速接頭，旨在最大程度地減少連接或斷開時的溢出和空氣混入，并可與其他符合HTMA-ISO 16028的產品互換。FEM接頭和奶嘴也提供各種尺寸。作為公接頭和母接頭的末端，可廣泛用于壓力高達4568 psi的應用中。派克的防溢漏快速接頭和公頭非常適合在各種液壓應用中使用，在這些液壓應用中，流體管路需要快速，輕松地進行連接和斷開，同時將溢漏降至最低，并限制了空氣的進入。

Parker派克FEM系列平面液壓快速接頭 HTMA（ISO 16028）無泄漏，齊平快速接頭 最高壓力4568 psi
HTMA (ISO 16028) Non-Spill, Flush Face Quick Couplings (hydraulic, up to 4568 psi) -
FEM Series Couplers

Parker's non-spill quick couplers and nipples are ideal for use across a variety of hydraulic applications where fluid lines require fast and easy connection and disconnection with minimal spillage and limited air inclusion.FEM Series Couplers (hydraulic) up to 4568 psi, meet or exceed design and performance requirements of Hydraulic Tool Manufacturer's Association (HTMA - ISO 16028) standards and connect with FEM/FEC Series Nipples. FEC Nipples provide the ability to connect under pressure. Parker's FEM Series are double shut off, non-spill quick couplings designed to minimize spillage and air inclusion when connecting or disconnecting and are interchangeable with other products complying with HTMA - ISO 16028. FEM Couplers and nipples are available in a range of sizes as well as male and female fitting ends to be versatile for use in applications with pressures up to 4568 psi.

技術特征：
- 尺寸：1/4“ – 1”
- 材料：鋼
- 港口端：女性NPSF，女性ORB，男性艙壁喇叭口，男性艙壁端面密封件
- 密封件選擇：丁腈/聚氨酯，EPR，碳氟化合物

市場：
- 工業
- 建筑
- 公用事業
- 農業

功能/優點：
- 推入式操作一只手使連接變得容易
- 所有尺寸均可與符合HTMA（ISO 16028）標準的其他聯軸器互換
- 無泄漏沖洗面閥可將斷開時的流體損失降至最低，從而減少環境污染并避免因溢出而造成的安全隱患。
- 沖洗面閥在連接流體管線時將可進入系統的空氣量減至最少，從而防止系統組件加速磨損。
- 可選的套筒鎖防止意外斷開連接

應用：
- 撬裝裝載機附件
- 液壓工具
- 建筑設備附件
- 工業液壓管路
- 農業機具
- 冷卻液加注和排放管路

Technical Characteristics:
- Sizes: 1/4” – 1”
- Material: Steel
- Port Ends: Female NPSF, Female ORB, Male Bulkhead Flare, Male Bulkhead Face Seal
- Seal Options: Nitrile/Polyurethane, EPR, Fluorocarbon

Markets:
- Industrial
- Construction
- Utility
- Agriculture

Features/Benefits:
- Push-to-connect operation makes connection easy with one hand
- All sizes are globally interchangeable with other couplings complying with HTMA (ISO 16028) standards
- Non-spill flush face valves minimize fluid loss when disconnecting, to reduce environmental contamination and avoid safety hazards caused by spillage.
- Flush face valves minimize the amount of air that can enter the system when connecting fluid lines, thus preventing accelerated wear of the system's components.
- Optional sleeve lock guards against accidental disconnection

Applications:
- Skid loader attachments
- Hydraulic tools
- Constuction equipment attachments
- Industrial hydraulic lines
- Agricultural implements
- Coolant fill and drain lines

Technical Specifications

HTMA (ISO 16028) Non-Spill, Flush Face Quick Couplings (hydraulic, up to 4568 psi) -
FEM Series Couplers 型號
