Parker派克FEM 和 FEC系列接頭 HTMA（ISO 16028）無泄漏，齊平快速接頭，在壓力下連接（液壓，最高4568 psi）
Parker 快速接頭和附件 Parker Quick Couplings and Accessories Parker Quick Couplings

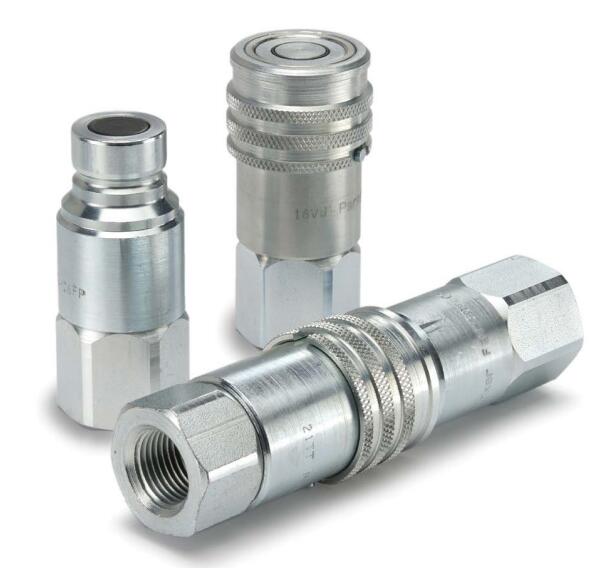

HTMA (ISO 16028) Non-Spill, Flush Face Quick Couplings, Connect Under Pressure (hyd, up to 4568 psi) - FEM/FEC Series Nipples

高達4568 psi的FEM和FEC系列公頭（液壓），達到或超過液壓工具制造商協會（HTMA-ISO 16028）標準的設計和性能要求，并與FEM系列連接器連接。FEC公頭設計用于在壓力下連接，以防止流體管線中包含因熱膨脹而產生的殘余壓力。派克的FEM系列為雙截止，無泄漏快速接頭，旨在最大程度地減少連接或斷開時的溢出和空氣混入，并可與其他符合HTMA-ISO 16028的產品互換。FEM接頭和奶嘴也提供各種尺寸。作為公接頭和母接頭的末端，可廣泛用于壓力高達4568 psi的應用中。FEM and FEC Series Nipples (hydraulic) up to 4568 psi, meet or exceed design and performance requirements of Hydraulic Tool Manufacturer's Association (HTMA - ISO 16028) standards, and connect with FEM Series Couplers. FEC nipples are designed to connect under pressure, in situations where fluid lines contain residual pressure caused by thermal expansion. Parker's FEM Series are double shut off, non-spill quick couplings designed to minimize spillage and air inclusion when connecting or disconnecting and are interchangeable with other products complying with HTMA - ISO 16028. FEM Couplers and nipples are available in a range of sizes as well as male and female fitting ends to be versatile for use in applications with pressures up to 4568 psi.

HTMA (ISO 16028) Non-Spill, Flush Face Quick Couplings, Connect Under Pressure (hyd, up to 4568 psi) -
FEM/FEC Series Nipples

Parker's non-spill quick couplers and nipples are ideal for use across a variety of hydraulic applications where fluid lines require fast and easy connection and disconnection with minimal spillage and limited air inclusion. FEM and FEC Series Nipples (hydraulic) up to 4568 psi, meet or exceed design and performance requirements of Hydraulic Tool Manufacturer's Association (HTMA - ISO 16028) standards, and connect with FEM Series Couplers. FEC nipples are designed to connect under pressure, in situations where fluid lines contain residual pressure caused by thermal expansion. Parker's FEM Series are double shut off, non-spill quick couplings designed to minimize spillage and air inclusion when connecting or disconnecting and are interchangeable with other products complying with HTMA - ISO 16028. FEM Couplers and nipples are available in a range of sizes as well as male and female fitting ends to be versatile for use in applications with pressures up to 4568 psi.

技術特征：
- FEM尺寸：1/4“ – 1”
- FEC（壓力連接）尺寸：1/2“，5/8”，3/4“
- 材料：鋼
- 端口端：NPSF母頭，ORB母頭，艙壁擴口擴口，艙壁端面密封
- 密封選項：腈/聚氨酯，EPR，碳氟化合物

市場：
- 工業
- 建筑
- 公用事業
- 農業

特點/優點：
- 所有尺寸均可與其他符合HTMA（ISO 16028）標準的聯軸器互換
- 無泄漏沖洗面閥可最大程度減少斷開時的流體損失減少環境污染，避免因泄漏造成的安全隱患。
- 沖洗面閥在連接流體管線時盡量減少可以進入系統的空氣量，從而防止系統組件的加速磨損。
- 用于面板或板安裝選件的
凸型隔板安裝端- FEC接頭可在由于熱膨脹引起的殘余壓力下進行連接。

應用：
- 橇式裝載機附件
- 液壓工具
- 建筑設備附件
- 工業液壓管路
- 農業機具
- 冷卻液加注和排放管路-請聯系QCD以獲得黃銅的FEM型排放口接頭，建議由技術和維護委員會使用美國卡車運輸協會TMC建議做法353

Technical Characteristics:
- FEM Sizes: 1/4” – 1”
- FEC (Connect Under Pressure) Sizes: 1/2", 5/8", 3/4"
- Materials: Steel
- Port Ends: Female NPSF, Female ORB, Male Bulkhead Flare, Male Bulkhead Face Seal
- Seal Options: Nitrile/Polyurethane, EPR, Fluorocarbon

Markets:
- Industrial
- Construction
- Utility
- Agriculture

Features/Benefits:
- All sizes are globally interchangeable with other couplings complying with HTMA (ISO 16028) standards
- Non-spill flush face valves minimize fluid loss when disconnecting, to reduce environmental contamination and avoid safety hazards caused by spillage.
- Flush face valves minimize the amount of air that can enter the system when connecting fluid lines, thus preventing accelerated wear of the system's components.
- Male bulkhead fitting ends for panel or plate mounting options
- FEC nipples provide the ability to connect under residual pressure caused by thermal expansion.

Applications:
- Skid loader attachments
- Hydraulic tools
- Constuction equipment attachments
- Industrial hydraulic lines
- Agricultural implements
- Coolant fill and drain lines - Contact QCD for a brass, FEM style drain port nipple that is recommended for use by the Technology and Maintenance Council of the American Trucking Association, TMC Recommended Practice 353

Technical Specifications

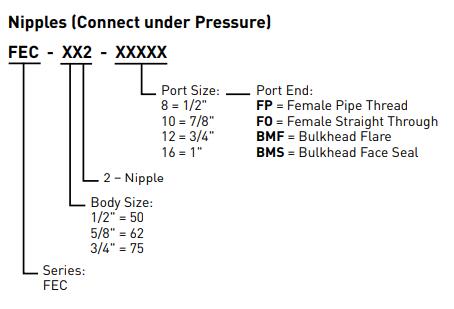

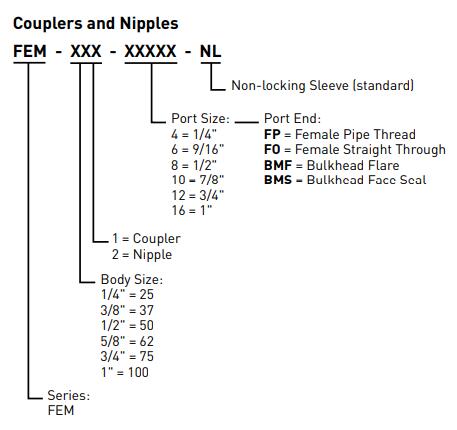

HTMA (ISO 16028) Non-Spill, Flush Face Quick Couplings, Connect Under Pressure (hyd, up to 4568 psi) -
FEM/FEC Series Nipples 型號
