Parker Quick Couplings

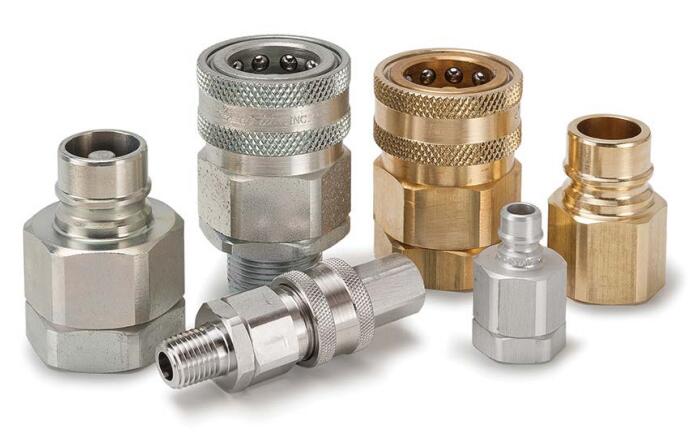

Connect Under Pressure, Multi-Purpose Quick Couplings (hyd, fluids) up to 4,500 psi - Snap-tite PH Series Couplers
Parker's general purpose connect under pressure quick couplers and nipples are versatile for use across a spectrum of applications where fluid lines require fast and easy connection and disconnection while under residual pressure .Snap-tite PH Series Couplers (hydraulic, fluid) up to 4,500 psi connect with valved Snap-tite H Series Nipples. It is recommended that only one half of the connection (coupler or nipple) be PH version, not both.
Parker's Snap-tite PH Series have poppet valves with an added pressure relief feature to allow connection under static pressures up to 3000 psi. With a Snap-tite PH Series Coupler installed on a pressurized line you can easily connect with a mating valved Snap-tite H Series Nipple. PH Couplers and nipples are available in 3/8", 1/2" and 3/4" sizes with other sizes available by request.
Connect Under Pressure, Multi-Purpose Quick Couplings (hyd, fluids) up to 4,500 psi - Snap-tite PH Series Couplers
Technical Characteristics:
- Sizes: 3/8” – 1”
- Materials: Steel
- Port Ends: Female SAE, Female NPTF std (Male SAE 37 degree Flare, Male NPT by request)
- Seal Options: Nitrile, Fluorocarbon, Ethylene Propylene
- Coupler options include: Sleeve Lock
Markets:
- Industrial
- Construction
- Oil and Gas
- Agriculture
Features/Benefits:
- Original Snap-tite H Series multi-purpose coupling, widely used in varied applications
- PH version connect under pressure option to connect lines with residual pressure caused by thermal expansion
- Male port end options add versatility
Applications:
- Industrial hydraulic lines
- Water and coolant lines
- High pressure fluid transfer
- Mobile equipment
- Cleaning equipment
- General purpose fluid applications where residual pressure is present on the Nipple side of the connection
Technical Specifications
| Body Size: |
3/8, 1/2, 3/4 inch |
| Maximum Operating Pressure: |
Up to 4500 psi, Up to 310 bar |
| Maximum Operating Temperature: |
121 °C, 250 °F |
| Materials of Construction: |
Steel |
| Brand: |
Parker |
| Vacuum Pressure Rating: |
No |
| Fitting Connection Type: |
Female Thread |
| Interchange Type: |
Snap-tite PH |
| Seal Material: |
Nitrile |
| Media: |
Hydraulic |
| Coupling Half: |
Coupler |
| Minimum Operating Temperature: |
-40 °F |
| Valve Type: |
Connect under pressure poppet |
| Sleeve Type: |
Manual sleeve |
| Lock Type: |
Locking balls |
| Thread Size: |
Female |
| Connection Type: |
NPTF, UNF |
| Plating Type: |
Zinc with clear trivalent chromate |
| Application: |
Hydraulic, General Purpose |
Connect Under Pressure, Multi-Purpose Quick Couplings (hyd, fluids) up to 4,500 psi - Snap-tite PH Series Couplers 型號
| Part |
Body Size (inch) |
Body Material |
Connection Thread Size (inch) |
| VPHC12-12EF |
3/4 |
Steel |
1 1/16 - 12 |
| VPHC12-12F |
3/4 |
Steel |
3/4 - 14 |
| VPHC6-6F |
3/8 |
Steel |
3/8 - 18 |
| VPHC8-8F |
1/2 |
Steel |
1/2 - 14 |
|
