Parker 快速接頭和附件 Parker Quick Couplings and Accessories Parker Quick Couplings

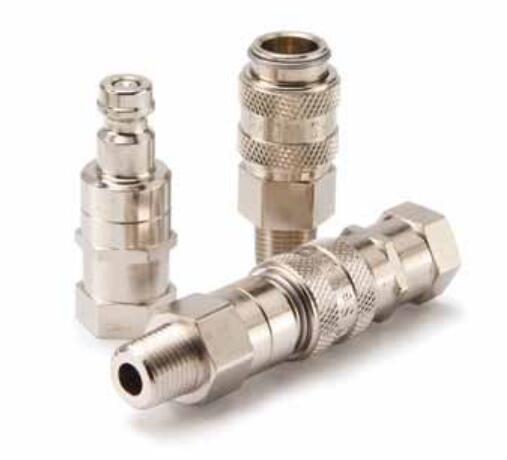

Miniature Size, Valved, Brass, Push to Connect Quick Couplings (fluid) up to 250 psi - DM Series Couplers

Parker's double shut off, miniature quick couplers and nipples are corrosion resistant for applications where small, low pressure fluid lines require fast and easy connection and disconnection. DM Series Couplers (fluid) up to 250 psi connect with DM Series Nipples. Parker's DM Series are double shut-off, corrosion resistant miniature quick couplings. They offer push to connect operation in a small size. Couplers and nipples are available in 1/8" size only with a pressure rating of 250 psi.

Miniature Size, Valved, Brass, Push to Connect Quick Couplings (fluid) up to 250 psi - DM Series Couplers

Technical Characteristics:
- Sizes: 1/8”
- Materials: Nickel Plated Brass
- Port Ends: Female NPTF, Male NPTF
- Seal: Fluorocarbon

Markets:
- Medical device
- Semiconductor

Features/Benefits:
- Brass bodies are nickel plated to increase corrosion resistance and chemical compatibility
- Fluorocarbon seals are compatible with many fluids
- Easy push to connect operation
- Compact size

Applications:
- Dental equipment
- Lubrication lines
- Fluid transfer
- Coolant lines

Technical Specifications

Miniature Size, Valved, Brass, Push to Connect Quick Couplings (fluid) up to 250 psi - DM Series Couplers 型號
