Parker派克化學分配系統和腐蝕性介質轉移不銹鋼防溢漏快速接頭
Parker 快速接頭和附件 Parker Quick Couplings and Accessories Parker Quick Couplings
Parke FS Series are stainless steel non-spill quick couplings
Chemical Compatible 316 Stainless Steel, Non-Spill Quick Couplings (2000 psi) - FS Series Nipples

Parker派克不銹鋼防泄漏快速接頭和接頭非常適合用于化學或腐蝕性流體管線要求快速、容易連接和斷開的應用場合，泄漏量最小，空氣夾雜有限。FS系列快速接頭（2000磅/平方英寸），與FS系列螺紋接頭連接。派克的FS系列是不銹鋼防泄漏快速接頭，帶有沖洗面閥，設計用于在連接或斷開時最大限度地減少溢出和空氣夾雜，從而將環境污染降到最低。這些快速接頭是封閉系統傳輸和分配化學品和其他液體的理想選擇。FS管接頭和接頭有多種尺寸可供選擇。

Parke FS Series are stainless steel non-spill quick couplings

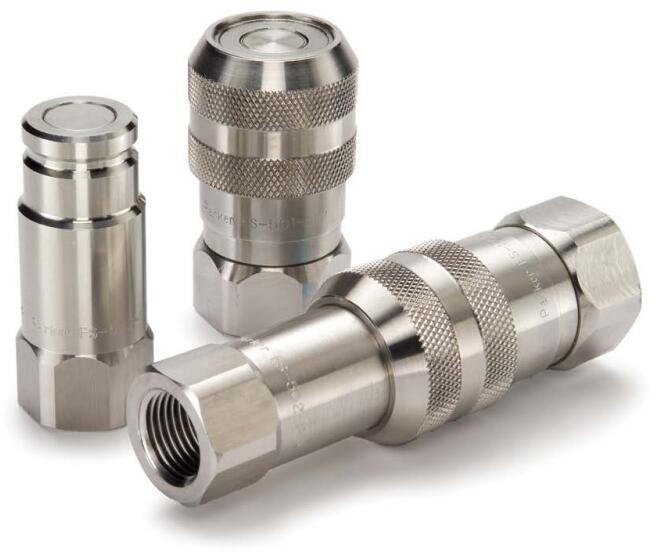

Parker FS Series stainless steel non-spill quick couplers and nipples
Chemical Compatible 316 Stainless Steel, Non-Spill Quick Couplings (2000 psi) - FS Series Couplers
半導體離子注入機配套用不銹鋼防溢漏快速接頭 化學分配系統和腐蝕性介質轉移

Parker's stainless steel non-spill quick couplers and nipples are ideal for use in applications where chemical or corrosive fluid lines require fast and easy connection and disconnection with minimal spillage and limited air inclusion. FS Series Couplers (2000 psi), connect with FS Series Nipples. Parker's FS Series are stainless steel non-spill quick couplings with flush face valves designed to minimize spillage and air inclusion when connecting or disconnecting to result in minimal environmental contamination. These quick couplings are ideal for closed system transfer and dispensing of chemicals and other fluids. FS Couplers and nipples are available in a range of sizes.

技術特征：
- 尺寸：1/4“ – 1”
- 材料：316不銹鋼
- 端口端：NPT公頭，NPTF母頭，UNF母頭
- 密封選項：碳氟化合物，乙烯丙烯，氯丁橡膠

市場：
- 化學加工和處理
- 食品處理
- 腐蝕性液體處理
- 農業

功能/優點：
- 推入式連接操作使一只手易于連接
- 耐腐蝕316不銹鋼材料
- 碳氟化合物密封件可與多種化學品兼容
- 無泄漏閥可最大程度地減少斷開時的流體損失，從而減少環境污染和避免因泄漏造成的安全隱患。
- 沖洗面閥在連接流體管線時使進入系統的空氣量最小化

應用：
- 化學分配系統
- 化學加工
- 食品加工
- 腐蝕性介質轉移

Technical Characteristics:
- Sizes: 1/4” – 1”
- Materials: 316 Stainless Steel
- Port Ends: Male NPT, Female NPTF, Female UNF
- Seal Options: Fluorocarbon, Ethylene Propylene, Neoprene

Markets:
- Chemical processing and handling
- Food processing
- Corrosive fluid handling
- Agriculture

Features/Benefits:
- Push-to-connect operation makes connection easy with one hand
- Corrosion resistant 316 stainless steel material
- Fluorocarbon seals are compatible with many chemicals
- Non-spill valves minimize fluid loss when disconnecting, to reduce environmental contamination and avoid safety hazards caused by spillage.
- Flush face valves minimize the amount of air that can enter the system when connecting fluid lines

Applications:
- Chemical dispensing systems
- Chemical processing
- Food processing
- Corrosive media transfer

Technical Specifications

技術指標

• 連接類型： UNF
• 螺紋樣式： Female
• 機體尺寸（英寸）： 1個
• 連接螺紋尺寸（英寸）： 1 5/16-12
• 最大工作壓力： 2000磅/平方英寸
• 流量： 50加侖/分鐘
• 媒體： 液壓式
• 半聯軸器：
• 最低工作溫度： -15°華氏度
• 最高工作溫度： 400°華氏度

• 密封材料： 氟碳
• 閥門類型： 不漏油
• 主體材質： 316不銹鋼
• 應用： 化學加工

Chemical Compatible 316 Stainless Steel, Non-Spill Quick Couplings (2000 psi) - FS Series Couplers 型號
