Parker 快速接頭和附件 Parker Quick Couplings and Accessories Parker Quick Couplings
High Pressure, Unvalved, Steel Quick Couplings with Sleeve Lock (hydraulic) up to 15,000 psi - HO Series Couplers

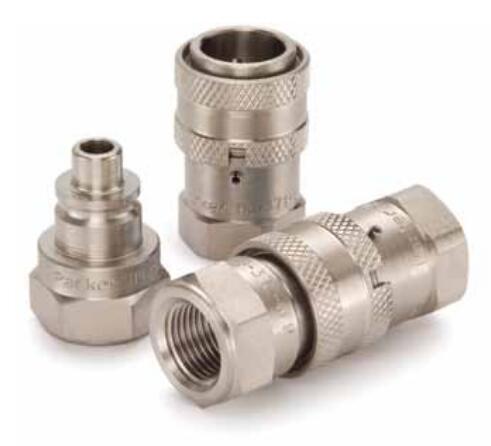

派克的HO系列是帶手動套筒的高壓，鋼，高流量快速接頭。接頭和公頭未裝閥，導致流量直通，流量不受限制。化學鍍鎳可提供耐腐蝕性，并設有防止意外斷開的套筒鎖保護裝置。最高15,000 psi的HO系列液壓接頭與HO系列接頭相連接。 Parker HO Series are high pressure, steel, high flow quick couplings with manual sleeves. Couplers and nipples are unvalved, resulting in straight through, unrestricted flow. Electroless nickel plating provides corrosion resistance and sleeve lock guards against accidental disconnection. Parker's high pressure and high flow quick couplers are ideal for use with high pressure hydraulic applications where fluid lines require fast and easy connection and disconnection while providing maximum flow and low pressure drop. HO Series Couplers (hydraulic) up to 15,000 psi connect with HO Series Nipples.

Parker HO Series are high pressure, steel, high flow quick couplings
High Pressure, Unvalved, Steel Quick Couplings with Sleeve Lock (hydraulic) up to 15,000 psi - HO Series Couplers

技術特性：
- 尺寸：1/4”，3/8”，1/2”
- 材料：化學鍍鎳鋼
- 端口端：NPTF內螺紋
- 密封選項：丁腈，EPR，碳氟化合物，氯丁橡膠

市場：
- 紙漿和紙張
- 石油和天然氣
- 測試

功能/優點：
- 套筒鎖可防止意外斷開
- 直通，無閥設計可在最小壓降的情況下提供全流量
- 化學鍍鎳提高了耐腐蝕性

應用：
- 紙和紙漿加工
- 煉油系統
- 測試系統

Technical Characteristics:
- Sizes: 1/4”, 3/8", 1/2”
- Material: Steel with electroless nickel plating
- Port Ends: Female NPTF
- Seal Options: Nitrile, EPR, Fluorocarbon, Neoprene

Markets:
- Pulp and paper
- Oil and gas
- Testing

Features/Benefits:
- Sleeve lock guards against accidental disconnection
- Straight through, unvalved design provides full flow with minimal pressure drop
- Electroless nickel plating adds corrosion resistance

Applications:
- Paper and pulp processing
- Refinery systems
- Testing systems

Technical Specifications

High Pressure, Unvalved, Steel Quick Couplings with Sleeve Lock (hydraulic) up to 15,000 psi -
HO Series Couplers 型號
