Parker 快速接頭和附件 Parker Quick Couplings and Accessories Parker Quick Couplings

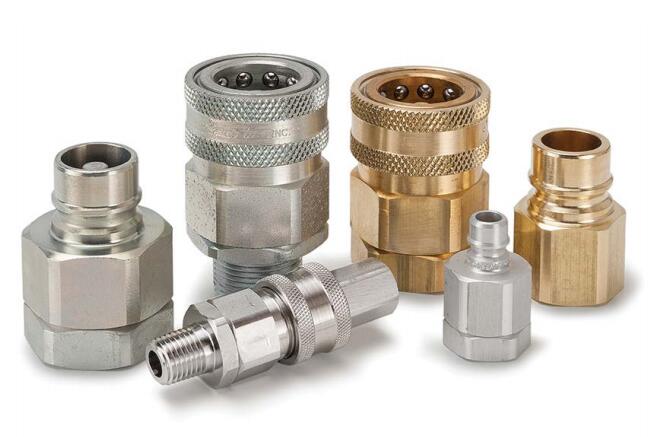

SNAP-TITE DESIGN, MULTI-PURPOSE QUICK COUPLINGS (HYD, FLUIDS) UP TO 11,000 PSI - H SERIES COUPLERS

Snap-tite H系列接頭和液壓系列流體接頭可連接高達11,000 psi的Snap-tite H系列接頭（液壓，流體）。這些原始的Snap-tite H系列快速斷開器確實具有多種用途。尺寸最大為4英寸，此快速接頭可以兩側帶閥，單次截止或全流量。凸形和凹形端口端部以及多種材料選擇以及最廣泛的可用尺寸范圍，使Snap-tite H系列成為適用于各種應用的理想快速連接。雙關或單關-快速接頭兼容以帶或不帶閥的任意組合連接。全流量選件-用作直通，無閥連接（快速接頭均為平頭或無閥）時，額定壓力范圍最大為11,000 psi。在壓力下連接選項-PH系列接頭允許在PH系列接頭側有殘余壓力時與H系列帶閥接頭連接。建議僅將PH系列的連接的一半（耦合器或奶嘴）連接在一起。Snap-tite design, general purpose quick couplings for applications where fluid lines up to 4" require fast and easy connection and disconnection. Many sizes, ports and material options. Snap-tite H Series Couplers (hydraulic, fluids) up to 11,000 psi connect with Snap-tite H and PH Series Nipples. These original Snap-tite H Series quick disconnects are truely multi-purpose. With sizes up to 4”, this coupling can be valved on both sides, single shut-off, or full flow. Both male and female port ends as well as many material options and the widest range of sizes available, make the Snap-tite H Series an ideal quick connection for a variety of applications. Double or single shut off - Couplers and nipples are compatible to connect with or without valves, in any combination. Full flow option - Rated for pressure ranges up to 11,000 psi max when used as a straight through, unvalved connection where both coupler and nipple are plain or without valves. Connect under pressure option - PH Series couplers allow connection with H Series valved nipples when there is residual pressure on the PH Coupler side. It is recommended that only one half of the connection (coupler or nipple) be a PH Series, not both.

SNAP-TITE DESIGN, MULTI-PURPOSE QUICK COUPLINGS (HYD, FLUIDS) UP TO 11,000 PSI -
H SERIES COUPLERS

技術特性：
- 尺寸：1/4“ – 4”
- 材料：鋼，鋁，黃銅，316不銹鋼
- 端口端：NPT公頭，NPNP母頭，SAE母頭，SAE公頭37度火炬
- 密封件選擇：丁腈，碳氟化合物，乙烯丙烯

市場：
- 工業
- 建筑
- 石油和天然氣
- 農業

特點/優勢：
- 原始的Snap-tite H系列多用途接頭，廣泛用于各種應用中
- 尺寸范圍最廣，最大可達4英寸
- 聯接器和奶嘴兼容連接，帶或不帶閥，可以任意組合
- PH系列壓力連接，允許連接具有熱膨脹引起的殘余壓力的管道
- 外螺紋端部選件增加了多功能性
- 可選的套筒鎖有助于防止意外斷開連接

應用：
- 工業液壓管路
- 食品和化學加工
- 水和冷卻液管路
- 高壓流體輸送
- 移動設備
- 清潔設備

Technical Characteristics:
- Sizes: 1/4” – 4”
- Materials: Steel, Aluminum, Brass, 316 Stainless Steel
- Port Ends: Male NPT, Female NPTF, Female SAE, Male SAE 37 degree Flare
- Seal Options: Nitrile, Fluorocarbon, Ethylene Propylene

Markets:
- Industrial
- Construction
- Oil and Gas
- Agriculture

Features/Benefits:
- Original Snap-tite H Series multi-purpose coupling, widely used in varied applications
- Widest range of sizes up to 4"
- Couplers and nipples are compatible to connect with or without valves, in any combination
- PH Series connect under pressure version allows connection of lines with residual pressure caused by thermal expansion
- Male port end options add versatility
- Optional sleeve lock helps to prevent accidental disconnection

Applications:
- Industrial hydraulic lines
- Food and chemical processing
- Water and coolant lines
- High pressure fluid transfer
- Mobile equipment
- Cleaning equipment

Technical Specifications

技術指標

• 螺紋樣式： 男
• 連接螺紋尺寸（英寸）： 1-11 1/2
• 主體材質： 316不銹鋼
• 閥門樣式： 提升閥
• 最大工作壓力（psi）： 2000
• 機體尺寸（英寸）： 1個
• 連接類型： 不擴散條約
• 最大工作壓力： 2000磅/平方英寸
• 密封材料： 丁腈
• 媒體： 液壓式

• 半聯軸器： 耦合器
• 最低工作溫度： -40°華氏度
• 最高工作溫度： 250°華氏度
• 閥門類型： 提升閥
• 袖型： 手動套
• 鎖類型： 鎖球
• 電鍍類型： 吶
• 應用： 液壓，通用

SNAP-TITE DESIGN, MULTI-PURPOSE QUICK COUPLINGS (HYD, FLUIDS) UP TO 11,000 PSI -
H SERIES COUPLERS 型號
