Parker Quick Couplings

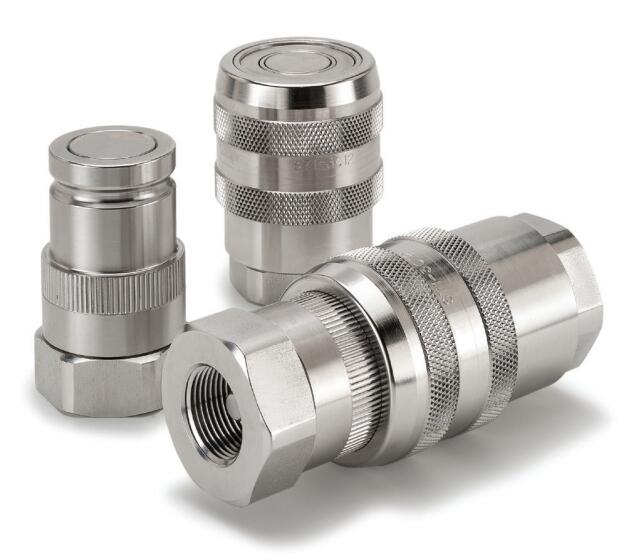

High Pressure Stainless, Non-Spill Quick Couplings, Sizes to 2 inch, (hydraulic) up to 10,000 psi - Snap-tite 71 Series Couplers

Snap-tite 71系列接頭的最高10,000 psi的Snap-tite 71系列接頭（液壓）。它們是雙重截止，無泄漏，推動式連接，可用于高壓應用。接頭的尺寸范圍最廣，最大可達2英寸，材料選擇包括鋼，316不銹鋼或高壓不銹鋼。注意：71-3型接頭和乳頭可與以前的Snap-tite設計接頭和乳頭互換，尺寸為3/8“，1/2”和3/4“。舊式1”接頭和乳頭（71- 2C16和71-2N16）不能與71-3設計互換。Parker's high pressure stainless steel, non-spill quick couplers and nipples are available in a wide range of sizes for use in hydraulic applications where fluid lines require fast and easy connection and disconnection with minimal spillage. Snap-tite 71 Series Couplers (hydraulic) up to 10,000 psi connect with Snap-tite 71 Series Nipples. These are double shut-off, non-spill, push to connect quick couplings for high pressure applications. Couplers and nipples are available in a wide range of sizes up to 2 inch with material options including steel, 316 stainless steel, or high pressure stainless steel. Note: The 71-3 style couplers and nipples are interchangeable with the previous Snap-tite design couplers and nipples in sizes 3/8", 1/2", and 3/4". Old style 1" couplers and nipples (71-2C16 and 71-2N16) are not interchangeable with the 71-3 design.

High Pressure Stainless, Non-Spill Quick Couplings, Sizes to 2 inch, (hydraulic) up to 10,000 psi - Snap-tite 71 Series Couplers

技術特征：
- 尺寸：1/4” – 2”
- 材料：鋼，316不銹鋼，高壓不銹鋼
- 端口端：NPTF母頭，SAE母頭
- 密封選項：腈，碳氟化合物，乙烯丙烯

市場：
- 工業
- 石油和天然氣
- 結構

特點/優點：
- 推入式連接使連接變得容易
- 耐腐蝕316不銹鋼和適用于苛刻應用的高壓不銹鋼材料選件
- 非泄漏閥在斷開連接時最大程度地減少了流體損失，從而減少了環境污染并避免了由泄漏引起的安全隱患。
- 沖洗面閥在連接流體管線時使進入系統的空氣量最小化

應用：
- 廠內設備
- 石油勘探和生產
- 建筑設備

Technical Characteristics:
- Sizes: 1/4” – 2”
- Materials: Steel, 316 Stainless Steel, High Pressure Stainless Steel
- Port Ends: Female NPTF, Female SAE
- Seal Options: Nitrile, Fluorocarbon, Ethylene Propylene
- Other Coupler options include: Sleeve Lock

Markets:
- Industrial
- Oil and Gas
- Construction

Features/Benefits:
- Push-to-connect operation makes connection easy
- Corrosion resistant 316 stainless steel and high pressure stainless steel material options for demanding applications
- Non-spill valves minimize fluid loss when disconnecting to reduce environmental contamination and avoid safety hazards caused by spillage.
- Flush face valves minimize the amount of air that can enter the system when connecting fluid lines

Applications:
- In-plant equipment
- Oil exploration and production
- Construction Equipment

技術指標

Technical Specifications

High Pressure Stainless, Non-Spill Quick Couplings, Sizes to 2 inch, (hydraulic) up to 10,000 psi - Snap-tite 71 Series Couplers 型號
