Parker Quick Couplings

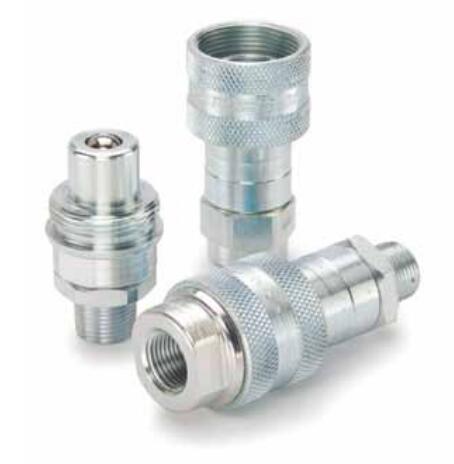

Hydraulic Hand Tool, Thread to Connect Interchange, High Pressure Quick Couplings 10,000 psi - 3000 Series Couplers
Parker's high pressure, thread to connect quick couplers and nipples are ideal for fast and easy connection and disconnection of hydraulic hand tools to fluid lines.
3000 Series Couplers (hydraulic) 10,000 psi, connect with 3000 Series Nipples.
These rugged thread to connect, high pressure quick couplings are manually threaded together to open the ball valves and make the connection. The durable coupler interface seal is polyurethane.
Hydraulic Hand Tool, Thread to Connect Interchange, High Pressure Quick Couplings 10,000 psi - 3000 Series Couplers
Technical Characteristics:
- Sizes: 1/4” & 3/8”
- Material: Steel
- Port Ends: Female NPTF, Male NPTF
- Seal: Polyurethane
Markets:
- Rescue Equipment
- Construction
Features/Benefits:
- Rugged and secure threaded connection interchanges with similar hand tool couplings
- Hard chrome alloy ball valves
- Polyurethane seal resists against high pressure extrusion
- Positive valve stop prevents flow checking for a smooth performance
Applications:
- High pressure rescue tools
- Hydraulic rams
- Portable hydraulic hand tools
- Crimping equipment
Technical Specifications
| Body Size: |
1/4, 3/8 inch |
| Maximum Operating Pressure: |
10000 psi, 689 bar |
| Brand: |
Parker |
| Fitting Connection Type: |
Female Thread, Male Thread |
| Materials of Construction: |
Steel |
| Maximum Operating Temperature: |
110 °C, 230 °F |
| Vacuum Pressure Rating: |
No |
| Flow Rate: |
3 to 6 Gal/min |
| Media: |
Hydraulic |
| Coupling Half: |
Coupler |
| Minimum Operating Temperature: |
-22 °F |
| Seal Material: |
Polyurethane |
| Valve Type: |
Ball |
| Application: |
Hydraulic, high pressure |
| Plating Type: |
Zinc with clear trivalent chromate |
| Sleeve Type: |
Thread to connect |
| Lock Type: |
Threads |
Hydraulic Hand Tool, Thread to Connect Interchange, High Pressure Quick Couplings 10,000 psi - 3000 Series Couplers 型號
| Part |
Body Size (inch) |
Thread Style |
Connection Thread Size (inch) |
Connection Type |
| 3050-2 |
1/4 |
Male |
1/4 - 18 |
NPTF |
| 3050-3 |
3/8 |
Male |
3/8 - 18 |
NPTF |
| 3050-3-231 |
3/8 |
Female |
3/8 - 18 |
NPTF |
|
