Parker 快速接頭和附件 Parker Quick Couplings and Accessories Parker Quick Couplings
Vacuum to Medium Pressure (Valved or Unvalved) - Brass, Stainless, Steel Quick Couplings (fluids, gas) - EA Series Couplers

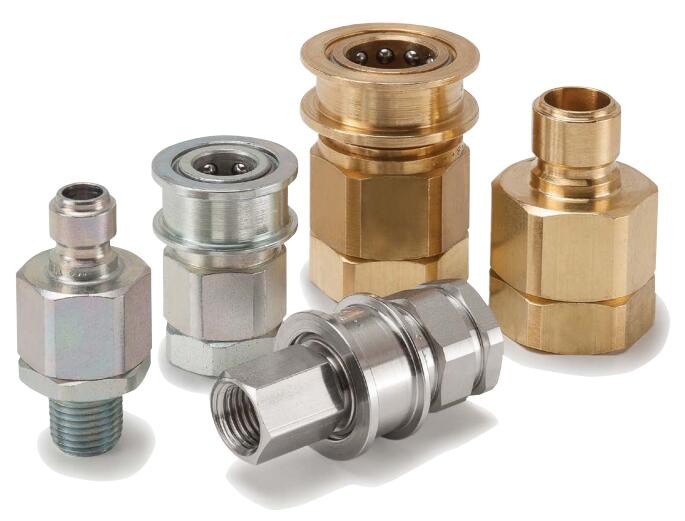

Parker EA Series Hydraulic Quick Couplings

Parker的EA系列可提供單截止，雙截止或無閥直通快速接頭，這些接頭專門為真空和中壓應用而設計。可靠的真空服務，低至29.72英寸汞柱。接頭和管嘴提供各種尺寸和多種材料，包括黃銅，鋼和316不銹鋼。Parker's multi-purpose quick couplers and nipples are ideal for use in vacuum and medium pressure applications where fluid or gas lines require fast and easy connection and disconnection. EA Series Couplers, (hydraulic, water, gas) vacuum up to 3,000 psi, connect with EA Series Nipples. Parker's EA Series are available as single shut-off, double shut-off, or unvalved straight through quick couplings specifically designed for vacuum and medium pressure applications. Dependable vacuum service down to 29.72" Hg. Couplers and nipples are available in a range of sizes and variety of materials including brass, steel and 316 stainless steel.

Vacuum to Medium Pressure (Valved or Unvalved) - Brass, Stainless, Steel Quick Couplings (fluids, gas)
測試實驗室設備- 高壓反應釜應用- 飛機制造- 塑料成型 - 水平定向鉆機鉆孔和脫水快速接頭
EA Series Couplers

技術特性：
- 尺寸：1/4“-3/4”
- 材料：鋼，黃銅，316不銹鋼
- 端口端：NPTF內螺紋，NPT內螺紋
- 密封選項：腈，碳氟化合物，乙烯丙烯
- 其他奶嘴選項包括：鋁材料，最大尺寸為4“，以及其他端口端配置選項

市場：
- 工業
- 結構
- 成型
- 測試

功能/優點：
- 具有真空功能的多用途接頭
- 可以提供帶閥和不帶閥的配置用于任何形式的連接，以實現直通，雙關或單關連接
- 公頭和母頭端口選擇

應用：
- 測試實驗室設備
- 高壓反應釜應用
- 飛機制造
- 塑料成型
- 水平定向鉆機鉆孔和脫水

Parker EA Series Vacuum Couplings
Parker Hannifin EA Series Hydraulic Quick Couplings
EA Series Hydraulic Quick Couplings Vacuum Couplings General Purpose Vacuum to Medium Pressure

Technical Characteristics:
- Sizes: 1/4” - 3/4”
- Materials: Steel, Brass, 316 Stainless Steel
- Port Ends: Female NPTF, Male NPT
- Seal Options: Nitrile, Fluorocarbon, Ethylene Propylene
- Other coupler options include: aluminum material, sizes up to 4", and additional port end configuration options

Markets:
- Industrial
- Construction
- Molding
- Testing

Features/Benefits:
- Multi-purpose coupling with vacuum capability
- Valved and unvalved configurations can be used in any combination to make a straight through, double shut off, or single shut off connection
- Male and female port options

Applications:
- Test lab equipment
- Autoclave applications
- Aircraft fabrication
- Plastic molding
- Horizontal boring and dewatering

Technical Specifications

Vacuum to Medium Pressure (Valved or Unvalved) - Brass, Stainless, Steel Quick Couplings (fluids, gas) - EA Series Couplers 型號
