Parker Quick Couplings

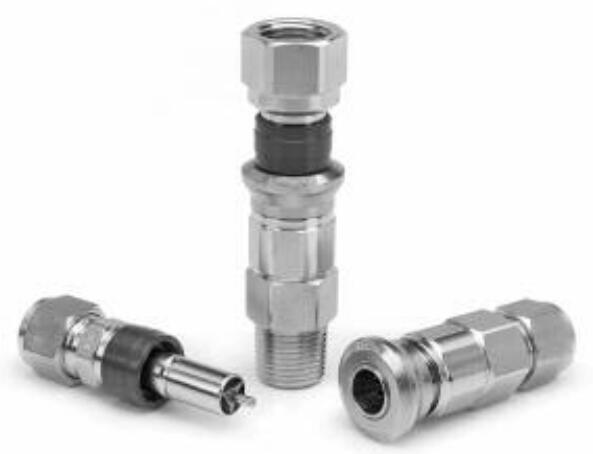

Gas or Fluid, Vacuum and Pressure, Stainless Steel Quick Couplings with A-Lok and CPI Ends, up to 3000 psi - CPI Series Couplers
氣體或流體，真空和壓力，帶A-Lok和CPI端部的不銹鋼快速接頭，最高3000 psi-CPI系列連接器

CPI系列接頭（流體或氣體）真空至3000 psi，與CPI系列接頭相連接。派克的CPI系列為不銹鋼，可快速連接，專為過程，電力和儀表應用而設計。CPI快速接頭是帶閥的，可以與帶閥或無閥的CPI接頭連接。端口端包括帶有隔板面板安裝選件的A-Lok和CPI管接頭配置。Parker's stainless steel instrumentation quick couplers and nipples are ideal for vacuum or pressure applications where fluid or gas lines require fast and easy connection and disconnection. CPI Series Couplers (fluid or gas) vacuum to 3000 psi, connect with CPI Series Nipples. Parker's CPI Series are stainless steel, push to connect quick couplings designed for use in process, power, and instrumentation applications. CPI couplers are valved and can be connected with valved or unvalved CPI Nipples. Port ends include A-Lok and CPI tube fitting configurations with bulkhead panel mount option.

Gas or Fluid, Vacuum and Pressure, Stainless Steel Quick Couplings with A-Lok and CPI Ends, up to 3000 psi - CPI Series Couplers

技術特性：
- 尺寸：1/4“，3/8”“，1/2”
- 材料：316不銹鋼
- 端口端：NPT公頭，NPT母頭，A-Lok管端，CPI管端，Push-Lok軟管倒鉤
- 密封選項：碳氟化合物，乙烯丙烯，氯丁橡膠，全氟彈性體
- 其他耦合器選項包括：隔板A-Lok，隔板CPI

市場：
- 儀器儀表
- 化學處理
- 實驗室測試
- 食品處理
- 醫療設備
- 發電

特性/優點：
- 真空度達50毫托或0.05mm Hg絕對壓力
- 氟碳O型圈可與多種化學品兼容
- 主動式止動閥可防止流量檢查性能是否良好
- 推壓連接，簡單的推拉斷開連接
- 閥導向裝置使閥與閥座對齊，以防止泄漏
- 耐用的球形鎖緊套筒，確保可靠的連接

應用：
- 實驗室設備
- 控制面板
- 校準系統
- 便攜式分析儀
- 氣相色譜儀
- 微污染設備

Technical Characteristics:
- Sizes: 1/4”, 3/8"", 1/2”
- Material: 316 Stainless Steel
- Port Ends: Male NPT, Female NPT, A-Lok tube end, CPI tube end, Push-Lok hose barb
- Seal Options: Fluorocarbon, Ethylene Propylene, Neoprene, Perfluoroelastomer
- Other coupler options include: bulkhead A-Lok, bulkhead CPI

Markets:
- Instrumentation
- Chemical processing
- Laboratory testing
- Food processing
- Medical equipment
- Power Generation

Features/Benefits:
- Vacuum service to 50 millitorr or .05mm of Hg absolute pressure
- Fluorocarbon O-rings are compatible with many chemicals
- Positive valve stop prevents flow checking for smooth performance
- Push to connect with simple push pull disconnection
- Valved guide aligns valve with seat to prevent leakage
- Durable ball locking sleeve for a reliable connection

Applications:
- Laboratory equipment
- Control panels
- Calibration systems
- Portable analyzers
- Gas chromatographs
- Micro-contamination devices

Technical Specifications

技術指標

Gas or Fluid, Vacuum and Pressure, Stainless Steel Quick Couplings with A-Lok and CPI Ends, up to 3000 psi - CPI Series Couplers 型號
