Parker 快速接頭和附件 Parker Quick Couplings and Accessories Parker Quick Couplings
Quick Coupling for Fluid Handling Applications, Series 7000
Parker派克 7000 Series Quick Coupling for Fluid Handling Applications
Parker派克7000系列用于流體處理應用的快速接頭

派克的7000系列快速連接快速接頭有四種不同的公稱直徑。它在密封方面具有非常高的可靠性，因為當接合快速接頭時閥在打開之前，塞子已經密封在快速接頭中，并且在連接時用雙密封可靠地密封了連接。7000系列在快速接頭和插頭中有一個額外的外部密封件，專門用于室外應用，因此，鎖定系統在連接時得到了完全保護，免受灰塵和噴水的侵害。

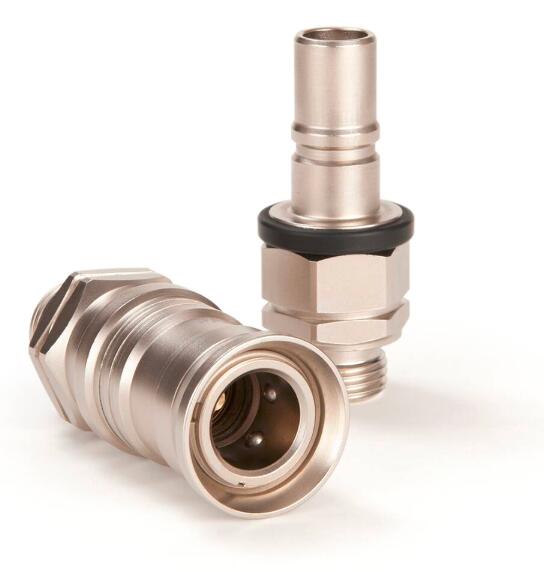

Parker 7000 Series Quick Connect Coupling
Quick Coupling for Fluid Handling Applications, Series 7000
服務器和電子冷卻液冷 熱管理應用干式快速接頭 液冷接頭

Parker 7000 Series Quick Connect Coupling is available in four different nominal diameters. It stands out for the very high level of reliability with respect to the seal, as the plug already seals in the coupling before the valves open when engaging the coupling and seals the connection reliably with a double seal when connected. Series 7000 has an additional external seal in the coupling and plug specifically for outdoor applications, so that the locking system is completely protected from dirt and spray water when connected. Quick coupling system with nominal diameter 9/12/16/20 for cooling applications e.g. in the railway sector. Available in brass or stainless steel.

市場：
-工業
-鐵路
-電子冷卻
-運輸

功能/優點：
-外部使用的附加外部鎖定系統密封件
-可根據要求提供帶不銹鋼電纜的防塵帽
-防濺設計，即在連接過程中不排水
-連接時雙重密封

應用：
-電子元件的冷卻 - 服務器和電子冷卻液冷 熱管理應用干式快速接頭 液冷接頭
-流體處理
-水和冷卻液管線
-高流量水應用

Markets:
- Industrial
- Railway
- Electronic Cooling
- Transportation

Features/Benefits:
- Additional external locking system seal for external use
- Dust caps with stainless steel cable are available on request
- Splash-proof design, i.e. no water discharge during the connection process
- Double sealed when connected

Applications:
- Cooling of Electronic Components
- Fluid Handling
- Water and coolant lines
- High Flow Water applications

Technical Specifications

Quick Coupling for Fluid Handling Applications, Series 7000 型號
