Parker Fittings接頭
Barbed Fittings

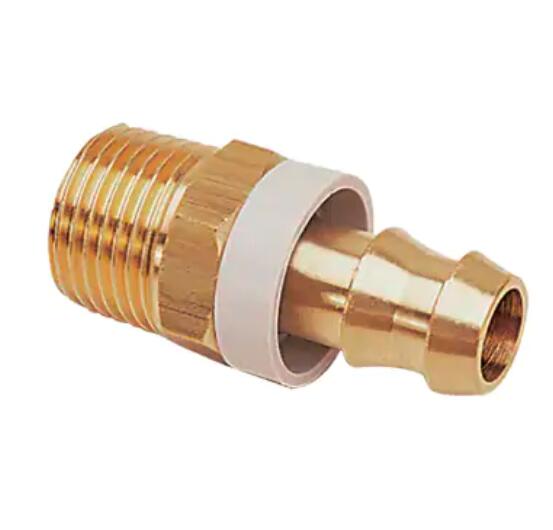

Quick-Acting Barbed Fitting With Brass Male BSPT Thread

Brass fittings for a quick connection of self-fastening hose to a male port.
Available in 1/8" to 3/4" ID
This range of fittings is designed to meet the requirements of the automotive and robotics industries - CNOMO manufacturing quality.

This range of fittings is designed to meet the requirements of the automotive and robotics industries, provides optimum CNOMO manufacturing quality, simple installation, reliable operation and a long service life.

Features/Benefits:

- Perfect for Self-Fastening NBR Hose

- Quick and simple to install
- Compatible with the Parker Legris range of brass compression fittings
- Mechanical properties proven for use in industrial robotic installations
- Spark-resistant

- Ergonomic and Time-Saving

- Fitting does not require lubrication or clamping, reducing assembly time
- Visual stop confirms installation is correct and improves operating safety
- Removal by cutting the tube
- The fitting can be re-used if necessary

Markets:

- Packaging
- Miscellaneous Manufacturing
- Vehicle Assembly Facilities
- Machine Tools

Applications:

- Pneumatic Machinery Equipment at Medium and High Pressure
- Lubrication Systems
- Cooling Systems
- Welding Robots
- Suitable for Vacuum Applications

Technologies:

Brass fittings for quick connection of self-fastening hose to a male BSPT port.

Technical Characteristics:

- Fluids: Coolants, compressed air
- Materials: brass, engineering polymer, silicone free
- Pressure: 0 to 16 bar
- Temperature:
0°C to +100°C (water)
-20°C to 70°C (air)

Regulations:

- DI: 2002/95/EC (RoHS), 2011/65/EC
- DI: 97/23/EC (PED)
- RG: 1907/2006 (REACH)
- CNOMO: E07.21.115N

Technical Specifications

Quick-Acting Barbed Fitting With Brass Male BSPT Thread型號
