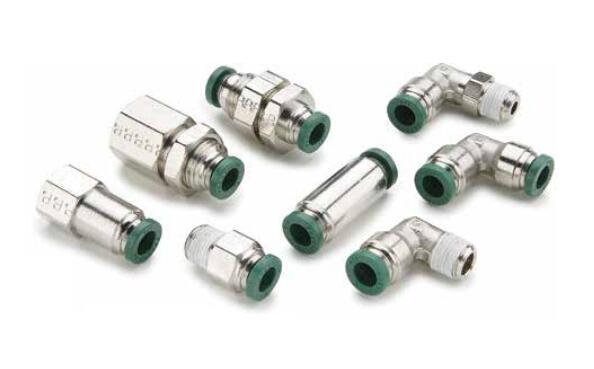

Parker 的 Prestolok PLP 按壓式接頭 - 即插即用鍍鎳快速接頭，Prestolo PLP
Push-to-Connect nickel plated instant fittings, Prestolok PLP
Parker 的 Prestolok PLP 按壓式接頭提供更高的吞吐量、更高的效率、更小的占地面積、更快的組裝和減少泄漏的創新。作為推入式接頭技術的世界領先者，派克的 Prestolok PLP 鍍鎳黃銅接頭提供了一種將管子連接到接頭以創建流體分配網絡的簡單方法。Prestolok PLP 推入式金屬配件無需使用套筒和擰緊壓縮式配件所需的螺母，從而縮短了裝配時間。只需將管子推入接頭直至其觸底。要拆卸，請按下釋放按鈕，緊靠主體并從接頭中拉出管子。螺紋密封劑應用于所有外螺紋，消除了 PTFE 膠帶污染系統的可能性。
Parker's Prestolok PLP push-to-connect fittings
Push-to-Connect nickel plated instant fittings, Prestolok PLP
Parker's Prestolok PLP push-to-connect fittings offer improved throughput, increased efficiency, smaller footprints, faster assembly and leak-reducing innovation. Being the world's leader in push-to-connect fitting technology Parker's Prestolok PLP nickel plated brass fittings provide a simple way of connecting tubes to a fitting in order to create a fluid distribution network. Prestolok PLP push in metal fittings reduce assembly time by eliminating the use of a sleeve and tightening of a nut required in compression style fittings. Simply push the tubing into the fitting until it bottoms. To disassemble, press the release button, hold against the body and pull tubing from the fitting. A thread sealant is applied to all male threads eliminating the possibility of system contamination from PTFE tape.
與以下 Parker Parflex Division 管一起使用。
- 聚乙烯
- 聚丙烯
- 柔性尼龍
- 半剛性尼龍
- 聚氨酯 90 硬度肖氏 A
- 聚氨酯 > 95 硬度肖氏 A
市場：
- 工業
- 汽車
- 半導體
- 包裝
- 機器人
- 氣候控制
- 紡織
- 真空
特性和優點：
- 緊湊的一體式管??接頭
- 可在所有外螺紋形狀上旋轉，以便在緊湊的地方組裝和精確定位
- 預涂白色丙烯酸密封劑
- NPT、UNF、BSPT、BSPP 和公制螺紋
- 耐腐蝕
- 推力-to-Connect 用于快速組裝和拆卸
- 1/8" - 1/2", 4mm - 14mm
應用：
- 空氣管路
- 惰性氣體
- 油管路
- 真空管路
技術規格：
- NPT 螺紋
- 不銹鋼抓環
- 丁腈密封件
- 鍍鎳黃銅主體
- 聚縮醛釋放按鈕
可根據要求提供定制配置和尺寸。聯系我們獲取更多信息。
Use with the following Parker Parflex Division tubing.
- Polyethylene
- Polypropylene
- Flexible Nylon
- Semi-rigid Nylon
- Polyurethane 90 Durometer Shore A
- Polyurethane >95 Durometer Shore A
Markets:
- Industrial
- Automotive
- Semi-conductor
- Packaging
- Robotics
- Climate control
- Textile
- Vacuum
Features and Benefits:
- Compact one-piece tube fitting
- Swivels on all male threaded shapes for assembly in tight places and for precise positioning
- Pre-applied white acrylic sealant
- NPT, UNF, BSPT, BSPP and Metric threads
- Corrosion resistance
- Push-to-Connect for fast assembly and disassembly
- 1/8" - 1/2", 4mm - 14mm
Applications:
- Air lines
- Inert gases
- Oil lines
- Vacuum lines
Technical Specifications:
- NPT Threads
- Stainless steel grab ring
- Nitrile seal
- Nickel plated brass body
- Polyacetal release button
Custom configurations and sizes are available upon request. Contact us for additional information.
Technical Specifications
技術規格
- 連接 2 管外徑（英寸）： 1/8
- 連接 1 管外徑（英寸）： 1/8
- 形狀： 球座
- 連接 2 螺紋尺寸（英寸）： 吶
- 內部十六進制： 不
- 連接 2 螺紋尺寸 (mm)： 吶
- 連接 2 樣式： 一鍵連接
- 連接 1 樣式： 一鍵連接
- 風格： 管對管
- 機身材質： 鍍鎳黃銅
- 最低工作溫度： 0°F，-18°C
- 最高工作溫度： 200 華氏度，93 攝氏度
- 最大工作壓力： 300 磅/平方英寸，20 巴
- 管材： 聚乙烯、聚丙烯、尼龍、剛性尼龍、聚氨酯 90-95 硬度計
- 密封材料： 腈
- 抓環材料： 不銹鋼
- 紐扣材質： 聚縮醛
- 連接類型： NPTF、UNF、BSPT、BSPP
- 真空壓力等級： 28 英寸-汞
- 應用： 氣動、包裝、紡織、半導體、機器人
Push-to-Connect nickel plated instant fittings, Prestolok PLP 型號
| Part |
Shape |
Style |
Connection 1 Tube O.D. (inch) |
Connection 1 Style |
Connection 2 Thread Size (inch) |
Connection 2 Tube O.D. (inch) |
Connection 2 Thread Size (mm) |
Connection 2 Style |
Internal Hex |
| 164PLP-2 |
Tee |
Tube to Tube |
2020/1/8 |
Push-to-Connect |
na |
1/8 |
na |
Push-to-Connect |
No |
| 164PLP-3 |
Tee |
Tube to Tube |
2020/3/16 |
Push-to-Connect |
na |
3/16 |
na |
Push-to-Connect |
No |
| 164PLP-4 |
Tee |
Tube to Tube |
2020/1/4 |
Push-to-Connect |
na |
1/4 |
na |
Push-to-Connect |
No |
| 164PLP-5 |
Tee |
Tube to Tube |
2020/5/16 |
Push-to-Connect |
na |
5/16 |
na |
Push-to-Connect |
No |
| 164PLP-5/32 |
Tee |
Tube to Tube |
5/32 |
Push-to-Connect |
na |
5/32 |
na |
Push-to-Connect |
No |
| 164PLP-6 |
Tee |
Tube to Tube |
2020/3/8 |
Push-to-Connect |
na |
3/8 |
na |
Push-to-Connect |
No |
| 164PLP-8 |
Tee |
Tube to Tube |
2020/1/2 |
Push-to-Connect |
na |
1/2 |
na |
Push-to-Connect |
No |
| 165PLP-2 |
90° Elbow |
Tube to Tube |
2020/1/8 |
Push-to-Connect |
na |
1/8 |
na |
Push-to-Connect |
No |
| 165PLP-4 |
90° Elbow |
Tube to Tube |
2020/1/4 |
Push-to-Connect |
na |
1/4 |
na |
Push-to-Connect |
No |
| 165PLP-5 |
90° Elbow |
Tube to Tube |
2020/5/16 |
Push-to-Connect |
na |
5/16 |
na |
Push-to-Connect |
No |
| 165PLP-5/32 |
90° Elbow |
Tube to Tube |
5/32 |
Push-to-Connect |
na |
5/32 |
na |
Push-to-Connect |
No |
| 165PLP-6 |
90° Elbow |
Tube to Tube |
3/8 |
Push-to-Connect |
na |
3/8 |
na |
Push-to-Connect |
No |
| 165PLP-8 |
90° Elbow |
Tube to Tube |
2020/1/2 |
Push-to-Connect |
na |
1/2 |
na |
Push-to-Connect |
No |
| 169PLP-2-0 |
90° Elbow |
Tube to Pipe |
2020/1/8 |
Push-to-Connect |
10-32 |
na |
na |
UNF |
No |
| 169PLP-4-0 |
90° Elbow |
Tube to Pipe |
2020/1/4 |
Push-to-Connect |
10-32 |
na |
na |
UNF |
No |
| 169PLP-5/32-0 |
90° Elbow |
Tube to Pipe |
5/32 |
Push-to-Connect |
10-32 |
na |
na |
UNF |
No |
| 169PLPNS532-4LT |
90° Elbow |
Tube to Pipe |
5/32 |
Push-to-Connect |
2001/4/28 |
na |
na |
SAE-LT |
No |
| 172PLP-4-0 |
Branch Tee |
Tube to Pipe |
1/4 |
Push-to-Connect |
10-32 |
na |
na |
UNF |
No |
| 4-1/4PLPHBF4-B |
Connector |
Tube to Pipe |
1/4 |
Push-to-Connect |
na |
na |
1/4 |
BSPP |
No |
| 4-1/8PLPHBF4-B |
Connector |
Tube to Pipe |
1/4 |
Push-to-Connect |
na |
na |
1/8 |
BSPP |
No |
| 4-3/8PLPHBF4-B |
Connector |
Tube to Pipe |
1/4 |
Push-to-Connect |
na |
na |
3/8 |
BSPP |
No |
| 6-1/2PLPHBF4-B |
Connector |
Tube to Pipe |
3/8 |
Push-to-Connect |
na |
na |
1/2 |
BSPP |
No |
| 6-1/4PLPHBF4-B |
Connector |
Tube to Pipe |
3/8 |
Push-to-Connect |
na |
na |
1/4 |
BSPP |
No |
| 6-3/8PLPHBF4-B |
Connector |
Tube to Pipe |
3/8 |
Push-to-Connect |
3/8 |
na |
na |
BSPP |
No |
| 62PLP-2 |
Union |
Tube to Tube |
1/8 |
Push-to-Connect |
na |
1/8 |
na |
Push-to-Connect |
No |
| 62PLP-3 |
Union |
Tube to Tube |
3/16 |
Push-to-Connect |
na |
3/16 |
na |
Push-to-Connect |
No |
| 62PLP-4 |
Union |
Tube to Tube |
1/4 |
Push-to-Connect |
na |
1/4 |
na |
Push-to-Connect |
No |
| 62PLP-4-2 |
Union |
Tube to Tube |
1/4 |
Push-to-Connect |
na |
1/8 |
na |
Push-to-Connect |
No |
| 62PLP-4-5/32 |
Union |
Tube to Tube |
1/4 |
Push-to-Connect |
na |
5/32 |
na |
Push-to-Connect |
No |
| 62PLP-4-6 |
Union |
Tube to Tube |
1/4 |
Push-to-Connect |
na |
3/8 |
na |
Push-to-Connect |
No |
| 62PLP-5 |
Union |
Tube to Tube |
5/16 |
Push-to-Connect |
na |
5/16 |
na |
Push-to-Connect |
No |
| 62PLP-5/32 |
Union |
Tube to Tube |
5/32 |
Push-to-Connect |
na |
5/32 |
na |
Push-to-Connect |
No |
| 62PLP-5/32-2 |
Union |
Tube to Tube |
5/32 |
Push-to-Connect |
na |
1/8 |
na |
Push-to-Connect |
No |
| 62PLP-6 |
Union |
Tube to Tube |
3/8 |
Push-to-Connect |
na |
3/8 |
na |
Push-to-Connect |
No |
| 62PLP-6-8 |
Union |
Tube to Tube |
3/8 |
Push-to-Connect |
na |
1/2 |
na |
Push-to-Connect |
No |
| 62PLP-8 |
Union |
Tube to Tube |
1/2 |
Push-to-Connect |
na |
1/2 |
na |
Push-to-Connect |
No |
| 62PLPBH-2 |
Bulkhead |
Tube to Tube |
1/8 |
Push-to-Connect |
na |
1/8 |
na |
Push-to-Connect |
No |
| 62PLPBH-4 |
Bulkhead |
Tube to Tube |
1/4 |
Push-to-Connect |
na |
1/4 |
na |
Push-to-Connect |
No |
| 62PLPBH-5 |
Bulkhead |
Tube to Tube |
5/16 |
Push-to-Connect |
na |
5/16 |
na |
Push-to-Connect |
No |
| 62PLPBH-5/32 |
Bulkhead |
Tube to Tube |
5/32 |
Push-to-Connect |
na |
5/32 |
na |
Push-to-Connect |
No |
| 62PLPBH-6 |
Bulkhead |
Tube to Tube |
3/8 |
Push-to-Connect |
na |
3/8 |
na |
Push-to-Connect |
No |
| 62PLPBH-8 |
Bulkhead |
Tube to Tube |
1/2 |
Push-to-Connect |
na |
1/2 |
na |
Push-to-Connect |
No |
| 66LF-2-2 |
Connector |
Tube to Pipe |
1/8 |
Push-to-Connect |
1/8 |
na |
na |
Female Pipe |
No |
| 66LF-2-4 |
Connector |
Tube to Pipe |
1/8 |
Push-to-Connect |
1/4 |
na |
na |
Female Pipe |
No |
| 66LF-3-2 |
Connector |
Tube to Pipe |
3/16 |
Push-to-Connect |
1/8 |
na |
na |
Female Pipe |
No |
| 66LF-3-4 |
Connector |
Tube to Pipe |
3/16 |
Push-to-Connect |
1/4 |
na |
na |
Female Pipe |
No |
| 66LF-4-2 |
Connector |
Tube to Pipe |
1/4 |
Push-to-Connect |
1/8 |
na |
na |
Female Pipe |
No |
| 66LF-4-4 |
Connector |
Tube to Pipe |
1/4 |
Push-to-Connect |
1/4 |
na |
na |
Female Pipe |
No |
| 66LF-5-2 |
Connector |
Tube to Pipe |
5/16 |
Push-to-Connect |
1/8 |
na |
na |
Female Pipe |
No |
| 66LF-5-4 |
Connector |
Tube to Pipe |
5/16 |
Push-to-Connect |
1/4 |
na |
na |
Female Pipe |
No |
| 66LF-5/32-2 |
Connector |
Tube to Pipe |
5/32 |
Push-to-Connect |
1/8 |
na |
na |
Female Pipe |
No |
| 66LF-5/32-4 |
Connector |
Tube to Pipe |
5/32 |
Push-to-Connect |
1/4 |
na |
na |
Female Pipe |
No |
| 66LF-6-2 |
Connector |
Tube to Pipe |
3/8 |
Push-to-Connect |
1/8 |
na |
na |
Female Pipe |
No |
| 66LF-6-4 |
Connector |
Tube to Pipe |
3/8 |
Push-to-Connect |
1/4 |
na |
na |
Female Pipe |
No |
| 66LF-6-6 |
Connector |
Tube to Pipe |
3/8 |
Push-to-Connect |
3/8 |
na |
na |
Female Pipe |
No |
| 66LF-8-4 |
Connector |
Tube to Pipe |
1/2 |
Push-to-Connect |
1/4 |
na |
na |
Female Pipe |
No |
| 66LF-8-6 |
Connector |
Tube to Pipe |
1/2 |
Push-to-Connect |
3/8 |
na |
na |
Female Pipe |
No |
| 66LF-8-8 |
Connector |
Tube to Pipe |
1/2 |
Push-to-Connect |
1/2 |
na |
na |
Female Pipe |
No |
| 66PLP-2-2 |
Connector |
Tube to Female Pipe |
1/8 |
Push-to-Connect |
1/8 |
na |
na |
Female Pipe |
No |
| 66PLP-2-4 |
Connector |
Tube to Female Pipe |
1/8 |
Push-to-Connect |
1/4 |
na |
na |
Female Pipe |
No |
| 66PLP-3-2 |
Connector |
Tube to Female Pipe |
3/16 |
Push-to-Connect |
1/8 |
na |
na |
Female Pipe |
No |
| 66PLP-4-2 |
Connector |
Tube to Female Pipe |
1/4 |
Push-to-Connect |
1/8 |
na |
na |
Female Pipe |
No |
| 66PLP-4-4 |
Connector |
Tube to Female Pipe |
1/4 |
Push-to-Connect |
1/4 |
na |
na |
Female Pipe |
No |
| 66PLP-5-2 |
Connector |
Tube to Female Pipe |
5/16 |
Push-to-Connect |
1/8 |
na |
na |
Female Pipe |
No |
| 66PLP-5-4 |
Connector |
Tube to Female Pipe |
5/16 |
Push-to-Connect |
1/4 |
na |
na |
Female Pipe |
No |
| 66PLP-5/32-2 |
Connector |
Tube to Female Pipe |
5/32 |
Push-to-Connect |
1/8 |
na |
na |
Female Pipe |
No |
| 66PLP-5/32-4 |
Connector |
Tube to Female Pipe |
5/32 |
Push-to-Connect |
1/4 |
na |
na |
Female Pipe |
No |
| 66PLP-6-4 |
Connector |
Tube to Female Pipe |
3/8 |
Push-to-Connect |
1/4 |
na |
na |
Female Pipe |
No |
| 66PLP-6-6 |
Connector |
Tube to Female Pipe |
3/8 |
Push-to-Connect |
3/8 |
na |
na |
Female Pipe |
No |
| 66PLPBH-4-4 |
Bulkhead |
Tube to Female Pipe |
1/4 |
Push-to-Connect |
1/4 |
na |
na |
Female Pipe |
No |
| 66PLPBH-5/32-4 |
Bulkhead |
Tube to Female Pipe |
5/32 |
Push-to-Connect |
1/4 |
na |
na |
Female Pipe |
No |
| 66PLPBH-6-6 |
Bulkhead |
Tube to Female Pipe |
3/8 |
Push-to-Connect |
3/8 |
na |
na |
Female Pipe |
No |
| 66PLPBH-8-6 |
Bulkhead |
Tube to Female Pipe |
1/2 |
Push-to-Connect |
3/8 |
na |
na |
Female Pipe |
No |
| 68LFR-2-0 |
Round Body Connector |
Tube to Pipe |
1/8 |
Push-to-Connect |
10-32 |
na |
na |
UNF |
Yes |
| 68LFR-4-0 |
Round Body Connector |
Tube to Pipe |
1/4 |
Push-to-Connect |
10-32 |
na |
na |
UNF |
Yes |
| 68LFR-4-1 |
Round Body Connector |
Tube to Pipe |
1/4 |
Push-to-Connect |
1/16 |
na |
na |
Male Pipe |
Yes |
| 68LFR-4-M5 |
Round Body Connector |
Tube to Pipe |
1/4 |
Push-to-Connect |
na |
na |
M5x0.8 |
METRIC |
Yes |
| 68LFR-4-M7 |
Round Body Connector |
Tube to Pipe |
1/4 |
Push-to-Connect |
na |
na |
M7x1 |
METRIC |
Yes |
| 68LFR-5/32-0 |
Round Body Connector |
Tube to Pipe |
5/32 |
Push-to-Connect |
10-32 |
na |
na |
UNF |
Yes |
| 68PLP-2-0 |
Connector |
Tube to Pipe |
1/8 |
Push-to-Connect |
10-32 |
na |
na |
UNF |
No |
| 68PLP-4-0 |
Connector |
Tube to Pipe |
1/4 |
Push-to-Connect |
10-32 |
na |
na |
UNF |
No |
| 68PLP-5/32-0 |
Connector |
Tube to Pipe |
5/32 |
Push-to-Connect |
10-32 |
na |
na |
UNF |
No |
| 68PLP-5/32-4LT |
Connector |
Tube to Pipe |
5/32 |
Push-to-Connect |
1/4-28 |
na |
na |
SAE-LT |
No |
| 68PLPR-2-0 |
Round Body Connector |
Tube to Pipe |
1/8 |
Push-to-Connect |
10-32 |
na |
na |
UNF |
No |
| 68PLPR-4-0 |
Round Body Connector |
Tube to Pipe |
1/4 |
Push-to-Connect |
10-32 |
na |
na |
UNF |
No |
| 68PLPR-5/32-0 |
Round Body Connector |
Tube to Pipe |
5/32 |
Push-to-Connect |
10-32 |
na |
na |
UNF |
No |
| 8-1/2PLPHBF4-B |
Connector |
Tube to Pipe |
1/2 |
Push-to-Connect |
1/2 |
na |
na |
BSPP |
No |
| 8-3/8PLPHBF4-B |
Connector |
Tube to Pipe |
1/2 |
Push-to-Connect |
na |
na |
3/8 |
BSPP |
No |
| W169PLP-2-1 |
90° Elbow Swivel |
Tube to Pipe |
1/8 |
Push-to-Connect |
1/16 |
na |
na |
Male Pipe |
No |
| W169PLP-2-2 |
90° Elbow Swivel |
Tube to Pipe |
1/8 |
Push-to-Connect |
1/8 |
na |
na |
Male Pipe |
No |
| W169PLP-2-4 |
90° Elbow Swivel |
Tube to Pipe |
1/8 |
Push-to-Connect |
1/4 |
na |
na |
Male Pipe |
No |
| W169PLP-3-2 |
90° Elbow Swivel |
Tube to Pipe |
3/16 |
Push-to-Connect |
1/8 |
na |
na |
Male Pipe |
No |
| W169PLP-4-1 |
90° Elbow Swivel |
Tube to Pipe |
1/4 |
Push-to-Connect |
1/16 |
na |
na |
Male Pipe |
No |
| W169PLP-4-2 |
90° Elbow Swivel |
Tube to Pipe |
1/4 |
Push-to-Connect |
1/8 |
na |
na |
Male Pipe |
No |
| W169PLP-4-4 |
90° Elbow Swivel |
Tube to Pipe |
1/4 |
Push-to-Connect |
1/4 |
na |
na |
Male Pipe |
No |
| W169PLP-4-6 |
90° Elbow Swivel |
Tube to Pipe |
1/4 |
Push-to-Connect |
3/8 |
na |
na |
Male Pipe |
No |
| W169PLP-5-2 |
90° Elbow Swivel |
Tube to Pipe |
5/16 |
Push-to-Connect |
1/8 |
na |
na |
Male Pipe |
No |
| W169PLP-5-4 |
90° Elbow Swivel |
Tube to Pipe |
5/16 |
Push-to-Connect |
1/4 |
na |
na |
Male Pipe |
No |
| W169PLP-5/32-1 |
90° Elbow Swivel |
Tube to Pipe |
5/32 |
Push-to-Connect |
1/16 |
na |
na |
Male Pipe |
No |
| W169PLP-5/32-2 |
90° Elbow Swivel |
Tube to Pipe |
5/32 |
Push-to-Connect |
1/8 |
na |
na |
Male Pipe |
No |
| W169PLP-5/32-4 |
90° Elbow Swivel |
Tube to Pipe |
5/32 |
Push-to-Connect |
1/4 |
na |
na |
Male Pipe |
No |
| W169PLP-6-2 |
90° Elbow Swivel |
Tube to Pipe |
3/8 |
Push-to-Connect |
1/8 |
na |
na |
Male Pipe |
No |
| W169PLP-6-4 |
90° Elbow Swivel |
Tube to Pipe |
3/8 |
Push-to-Connect |
1/4 |
na |
na |
Male Pipe |
No |
| W169PLP-6-6 |
90° Elbow Swivel |
Tube to Pipe |
3/8 |
Push-to-Connect |
3/8 |
na |
na |
Male Pipe |
No |
| W169PLP-6-8 |
90° Elbow Swivel |
Tube to Pipe |
3/8 |
Push-to-Connect |
1/2 |
na |
na |
Male Pipe |
No |
| W169PLP-8-4 |
90° Elbow Swivel |
Tube to Pipe |
1/2 |
Push-to-Connect |
1/4 |
na |
na |
Male Pipe |
No |
| W169PLP-8-6 |
90° Elbow Swivel |
Tube to Pipe |
1/2 |
Push-to-Connect |
3/8 |
na |
na |
Male Pipe |
No |
| W169PLP-8-8 |
90° Elbow Swivel |
Tube to Pipe |
1/2 |
Push-to-Connect |
1/2 |
na |
na |
Male Pipe |
No |
| W169PLPNS-2-2 |
90° Elbow |
Tube to Pipe |
1/8 |
Push-to-Connect |
1/8 |
na |
na |
Male Pipe |
No |
| W169PLPNS-4-2 |
90° Elbow |
Tube to Pipe |
1/4 |
Push-to-Connect |
1/8 |
na |
na |
Male Pipe |
No |
| W169PLPNS-4-4 |
90° Elbow |
Tube to Pipe |
1/4 |
Push-to-Connect |
1/4 |
na |
na |
Male Pipe |
No |
| W169PLPNS-5-2 |
90° Elbow |
Tube to Pipe |
5/16 |
Push-to-Connect |
1/8 |
na |
na |
Male Pipe |
No |
| W169PLPNS-5-4 |
90° Elbow |
Tube to Pipe |
5/16 |
Push-to-Connect |
1/4 |
na |
na |
Male Pipe |
No |
| W169PLPNS-6-4 |
90° Elbow |
Tube to Pipe |
3/8 |
Push-to-Connect |
1/4 |
na |
na |
Male Pipe |
No |
| W169PLPNS-6-6 |
90° Elbow |
Tube to Pipe |
3/8 |
Push-to-Connect |
3/8 |
na |
na |
Male Pipe |
No |
| W169PLPNS-6-8 |
90° Elbow |
Tube to Pipe |
3/8 |
Push-to-Connect |
1/2 |
na |
na |
Male Pipe |
No |
| W169PLPNS-8-6 |
90° Elbow |
Tube to Pipe |
1/2 |
Push-to-Connect |
3/8 |
na |
na |
Male Pipe |
No |
| W169PLPNS-8-8 |
90° Elbow |
Tube to Pipe |
1/2 |
Push-to-Connect |
1/2 |
na |
na |
Male Pipe |
No |
| W169PLPNS5/32-2 |
90° Elbow |
Tube to Pipe |
5/32 |
Push-to-Connect |
1/8 |
na |
na |
Male Pipe |
No |
| W169PLPNS5/32-4 |
90° Elbow |
Tube to Pipe |
5/32 |
Push-to-Connect |
1/4 |
na |
na |
Male Pipe |
No |
| W171PLP-2-2 |
Run Tee |
Tube to Pipe |
1/8 |
Push-to-Connect |
1/8 |
na |
na |
Male Pipe |
No |
| W171PLP-4-2 |
Run Tee |
Tube to Pipe |
1/4 |
Push-to-Connect |
1/8 |
na |
na |
Male Pipe |
No |
| W171PLP-4-4 |
Run Tee |
Tube to Pipe |
1/4 |
Push-to-Connect |
1/4 |
na |
na |
Male Pipe |
No |
| W171PLP-4-6 |
Run Tee |
Tube to Pipe |
1/4 |
Push-to-Connect |
3/8 |
na |
na |
Male Pipe |
No |
| W171PLP-5-2 |
Run Tee |
Tube to Pipe |
5/16 |
Push-to-Connect |
1/8 |
na |
na |
Male Pipe |
No |
| W171PLP-5-4 |
Run Tee |
Tube to Pipe |
5/16 |
Push-to-Connect |
1/4 |
na |
na |
Male Pipe |
No |
| W171PLP-5/32-2 |
Run Tee |
Tube to Pipe |
5/32 |
Push-to-Connect |
1/8 |
na |
na |
Male Pipe |
No |
| W171PLP-6-4 |
Run Tee |
Tube to Pipe |
3/8 |
Push-to-Connect |
1/4 |
na |
na |
Male Pipe |
No |
| W171PLP-6-6 |
Run Tee |
Tube to Pipe |
3/8 |
Push-to-Connect |
3/8 |
na |
na |
Male Pipe |
No |
| W171PLP-8-6 |
Run Tee |
Tube to Pipe |
1/2 |
Push-to-Connect |
3/8 |
na |
na |
Male Pipe |
No |
| W171PLP-8-8 |
Run Tee |
Tube to Pipe |
1/2 |
Push-to-Connect |
1/2 |
na |
na |
Male Pipe |
No |
| W172PLP-2-2 |
Branch Tee |
Tube to Pipe |
1/8 |
Push-to-Connect |
1/8 |
na |
na |
Male Pipe |
No |
| W172PLP-3-2 |
Branch Tee |
Tube to Pipe |
3/16 |
Push-to-Connect |
1/8 |
na |
na |
Male Pipe |
No |
| W172PLP-4-2 |
Branch Tee |
Tube to Pipe |
1/4 |
Push-to-Connect |
1/8 |
na |
na |
Male Pipe |
No |
| W172PLP-4-4 |
Branch Tee |
Tube to Pipe |
1/4 |
Push-to-Connect |
1/4 |
na |
na |
Male Pipe |
No |
| W172PLP-4-6 |
Branch Tee |
Tube to Pipe |
1/4 |
Push-to-Connect |
3/8 |
na |
na |
Male Pipe |
No |
| W172PLP-5-2 |
Branch Tee |
Tube to Pipe |
5/16 |
Push-to-Connect |
1/8 |
na |
na |
Male Pipe |
No |
| W172PLP-5-4 |
Branch Tee |
Tube to Pipe |
5/16 |
Push-to-Connect |
1/4 |
na |
na |
Male Pipe |
No |
| W172PLP-5/32-2 |
Branch Tee |
Tube to Pipe |
5/32 |
Push-to-Connect |
1/8 |
na |
na |
Male Pipe |
No |
| W172PLP-6-4 |
Branch Tee |
Tube to Pipe |
3/8 |
Push-to-Connect |
1/4 |
na |
na |
Male Pipe |
No |
| W172PLP-6-6 |
Branch Tee |
Tube to Pipe |
3/8 |
Push-to-Connect |
3/8 |
na |
na |
Male Pipe |
No |
| W172PLP-6-8 |
Branch Tee |
Tube to Pipe |
3/8 |
Push-to-Connect |
1/2 |
na |
na |
Male Pipe |
No |
| W172PLP-8-4 |
Branch Tee |
Tube to Pipe |
1/2 |
Push-to-Connect |
1/4 |
na |
na |
Male Pipe |
No |
| W172PLP-8-6 |
Branch Tee |
Tube to Pipe |
1/2 |
Push-to-Connect |
3/8 |
na |
na |
Male Pipe |
No |
| W172PLP-8-8 |
Branch Tee |
Tube to Pipe |
1/2 |
Push-to-Connect |
1/2 |
na |
na |
Male Pipe |
No |
| W68LF-2-1 |
Connector |
Tube to Pipe |
1/8 |
Push-to-Connect |
1/16 |
na |
na |
Male Pipe |
Yes |
| W68LF-2-2 |
Connector |
Tube to Pipe |
1/8 |
Push-to-Connect |
1/8 |
na |
na |
Male Pipe |
Yes |
| W68LF-2-2R |
Connector |
Tube to Pipe |
1/8 |
Push-to-Connect |
na |
na |
1/8 |
BSPT |
Yes |
| W68LF-2-4 |
Connector |
Tube to Pipe |
1/8 |
Push-to-Connect |
1/4 |
na |
na |
Male Pipe |
Yes |
| W68LF-3-2 |
Connector |
Tube to Pipe |
3/16 |
Push-to-Connect |
1/8 |
na |
na |
Male Pipe |
Yes |
| W68LF-3-2R |
Connector |
Tube to Pipe |
3/16 |
Push-to-Connect |
na |
na |
1/8 |
BSPT |
Yes |
| W68LF-3-4 |
Connector |
Tube to Pipe |
3/16 |
Push-to-Connect |
1/4 |
na |
na |
Male Pipe |
Yes |
| W68LF-3-4R |
Connector |
Tube to Pipe |
3/16 |
Push-to-Connect |
na |
na |
1/4 |
BSPT |
Yes |
| W68LF-4-2 |
Connector |
Tube to Pipe |
1/4 |
Push-to-Connect |
1/8 |
na |
na |
Male Pipe |
Yes |
| W68LF-4-2R |
Connector |
Tube to Pipe |
1/4 |
Push-to-Connect |
na |
na |
1/8 |
BSPT |
Yes |
| W68LF-4-4 |
Connector |
Tube to Pipe |
1/4 |
Push-to-Connect |
1/4 |
na |
na |
Male Pipe |
Yes |
| W68LF-4-4R |
Connector |
Tube to Pipe |
1/4 |
Push-to-Connect |
na |
na |
1/4 |
BSPT |
Yes |
| W68LF-4-6 |
Connector |
Tube to Pipe |
1/4 |
Push-to-Connect |
3/8 |
na |
na |
Male Pipe |
Yes |
| W68LF-5-2 |
Connector |
Tube to Pipe |
5/16 |
Push-to-Connect |
1/8 |
na |
na |
Male Pipe |
Yes |
| W68LF-5-2R |
Connector |
Tube to Pipe |
5/16 |
Push-to-Connect |
na |
na |
1/8 |
BSPT |
Yes |
| W68LF-5-4 |
Connector |
Tube to Pipe |
5/16 |
Push-to-Connect |
1/4 |
na |
na |
Male Pipe |
Yes |
| W68LF-5-4R |
Connector |
Tube to Pipe |
5/16 |
Push-to-Connect |
na |
na |
1/4 |
BSPT |
Yes |
| W68LF-5-6 |
Connector |
Tube to Pipe |
5/16 |
Push-to-Connect |
3/8 |
na |
na |
Male Pipe |
Yes |
| W68LF-5-6R |
Connector |
Tube to Pipe |
5/16 |
Push-to-Connect |
na |
na |
3/8 |
BSPT |
Yes |
| W68LF-5-8R |
Connector |
Tube to Pipe |
5/16 |
Push-to-Connect |
na |
na |
1/2 |
BSPT |
Yes |
| W68LF-5/32-2 |
Connector |
Tube to Pipe |
5/32 |
Push-to-Connect |
1/8 |
na |
na |
Male Pipe |
Yes |
| W68LF-5/32-2R |
Connector |
Tube to Pipe |
5/32 |
Push-to-Connect |
na |
na |
1/8 |
BSPT |
Yes |
| W68LF-5/32-4 |
Connector |
Tube to Pipe |
5/32 |
Push-to-Connect |
1/4 |
na |
na |
Male Pipe |
Yes |
| W68LF-5/32-4R |
Connector |
Tube to Pipe |
5/32 |
Push-to-Connect |
na |
na |
1/4 |
BSPT |
Yes |
| W68LF-6-2 |
Connector |
Tube to Pipe |
3/8 |
Push-to-Connect |
1/8 |
na |
na |
Male Pipe |
Yes |
| W68LF-6-4 |
Connector |
Tube to Pipe |
3/8 |
Push-to-Connect |
1/4 |
na |
na |
Male Pipe |
Yes |
| W68LF-6-4R |
Connector |
Tube to Pipe |
3/8 |
Push-to-Connect |
na |
na |
1/4 |
BSPT |
Yes |
| W68LF-6-6 |
Connector |
Tube to Pipe |
3/8 |
Push-to-Connect |
3/8 |
na |
na |
Male Pipe |
Yes |
| W68LF-6-6R |
Connector |
Tube to Pipe |
3/8 |
Push-to-Connect |
na |
na |
3/8 |
BSPT |
Yes |
| W68LF-6-8 |
Connector |
Tube to Pipe |
3/8 |
Push-to-Connect |
1/2 |
na |
na |
Male Pipe |
Yes |
| W68LF-6-8R |
Connector |
Tube to Pipe |
3/8 |
Push-to-Connect |
na |
na |
1/2 |
BSPT |
Yes |
| W68LF-8-4 |
Connector |
Tube to Pipe |
1/2 |
Push-to-Connect |
1/4 |
na |
na |
Male Pipe |
Yes |
| W68LF-8-4R |
Connector |
Tube to Pipe |
1/2 |
Push-to-Connect |
na |
na |
1/4 |
BSPT |
Yes |
| W68LF-8-6 |
Connector |
Tube to Pipe |
1/2 |
Push-to-Connect |
3/8 |
na |
na |
Male Pipe |
Yes |
| W68LF-8-6R |
Connector |
Tube to Pipe |
1/2 |
Push-to-Connect |
na |
na |
3/8 |
BSPT |
Yes |
| W68LF-8-8 |
Connector |
Tube to Pipe |
1/2 |
Push-to-Connect |
1/2 |
na |
na |
Male Pipe |
Yes |
| W68LF-8-8R |
Connector |
Tube to Pipe |
1/2 |
Push-to-Connect |
na |
na |
1/2 |
BSPT |
Yes |
| W68PLP-2-1 |
Connector |
Tube to Pipe |
1/8 |
Push-to-Connect |
1/16 |
na |
na |
Male Pipe |
No |
| W68PLP-2-2 |
Connector |
Tube to Pipe |
1/8 |
Push-to-Connect |
1/8 |
na |
na |
Male Pipe |
No |
| W68PLP-2-4 |
Connector |
Tube to Pipe |
1/8 |
Push-to-Connect |
1/4 |
na |
na |
Male Pipe |
No |
| W68PLP-3-2 |
Connector |
Tube to Pipe |
3/16 |
Push-to-Connect |
1/8 |
na |
na |
Male Pipe |
No |
| W68PLP-3-4 |
Connector |
Tube to Pipe |
3/16 |
Push-to-Connect |
1/4 |
na |
na |
Male Pipe |
No |
| W68PLP-4-1 |
Connector |
Tube to Pipe |
1/4 |
Push-to-Connect |
1/16 |
na |
na |
Male Pipe |
No |
| W68PLP-4-2 |
Connector |
Tube to Pipe |
1/4 |
Push-to-Connect |
1/8 |
na |
na |
Male Pipe |
No |
| W68PLP-4-4 |
Connector |
Tube to Pipe |
1/4 |
Push-to-Connect |
1/4 |
na |
na |
Male Pipe |
No |
| W68PLP-4-6 |
Connector |
Tube to Pipe |
1/4 |
Push-to-Connect |
3/8 |
na |
na |
Male Pipe |
No |
| W68PLP-5-2 |
Connector |
Tube to Pipe |
5/16 |
Push-to-Connect |
1/8 |
na |
na |
Male Pipe |
No |
| W68PLP-5-4 |
Connector |
Tube to Pipe |
5/16 |
Push-to-Connect |
1/4 |
na |
na |
Male Pipe |
No |
| W68PLP-5-6 |
Connector |
Tube to Pipe |
5/16 |
Push-to-Connect |
3/8 |
na |
na |
Male Pipe |
No |
| W68PLP-5/32-1 |
Connector |
Tube to Pipe |
5/32 |
Push-to-Connect |
1/16 |
na |
na |
Male Pipe |
No |
| W68PLP-5/32-2 |
Connector |
Tube to Pipe |
5/32 |
Push-to-Connect |
1/8 |
na |
na |
Male Pipe |
No |
| W68PLP-5/32-4 |
Connector |
Tube to Pipe |
5/32 |
Push-to-Connect |
1/4 |
na |
na |
Male Pipe |
No |
| W68PLP-6-2 |
Connector |
Tube to Pipe |
3/8 |
Push-to-Connect |
1/8 |
na |
na |
Male Pipe |
No |
| W68PLP-6-4 |
Connector |
Tube to Pipe |
3/8 |
Push-to-Connect |
1/4 |
na |
na |
Male Pipe |
No |
| W68PLP-6-6 |
Connector |
Tube to Pipe |
3/8 |
Push-to-Connect |
3/8 |
na |
na |
Male Pipe |
No |
| W68PLP-6-8 |
Connector |
Tube to Pipe |
3/8 |
Push-to-Connect |
1/2 |
na |
na |
Male Pipe |
No |
| W68PLP-8-4 |
Connector |
Tube to Pipe |
1/2 |
Push-to-Connect |
1/4 |
na |
na |
Male Pipe |
No |
| W68PLP-8-6 |
Connector |
Tube to Pipe |
1/2 |
Push-to-Connect |
3/8 |
na |
na |
Male Pipe |
No |
| W68PLP-8-8 |
Connector |
Tube to Pipe |
1/2 |
Push-to-Connect |
1/2 |
na |
na |
Male Pipe |
No |
| W68PLPR-4-1 |
Round Body Connector |
Tube to Pipe |
1/4 |
Push-to-Connect |
1/16 |
na |
na |
Male Pipe |
No |
| W68PLPR-4-2 |
Round Body Connector |
Tube to Pipe |
1/4 |
Push-to-Connect |
1/8 |
na |
na |
Male Pipe |
No |
| W68PLPR-4-4 |
Round Body Connector |
Tube to Pipe |
1/4 |
Push-to-Connect |
1/4 |
na |
na |
Male Pipe |
No |
| W68PLPR-5/32-1 |
Round Body Connector |
Tube to Pipe |
5/32 |
Push-to-Connect |
1/16 |
na |
na |
Male Pipe |
No |
| W68PLPR-5/32-2 |
Round Body Connector |
Tube to Pipe |
5/32 |
Push-to-Connect |
1/8 |
na |
na |
Male Pipe |
No |
|
fcg.cnmec@parkerdistribution.com.cn
