派克用于交通行業快插式埋入接頭

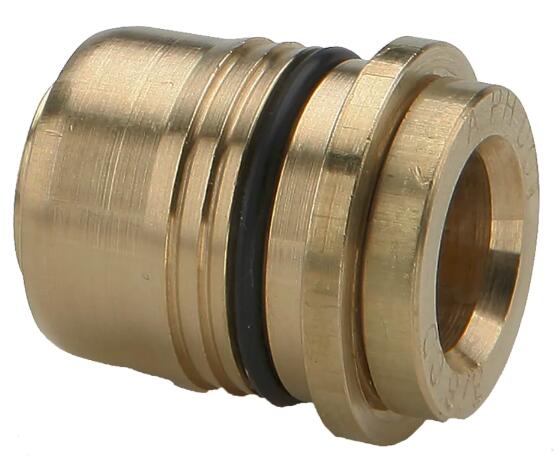

Push-to-Connect Cartridges, Transportation

派克的SAE埋入式接頭允許用戶消除安裝和組裝常規管螺紋配件所需的空間和勞動力。派克設計開發了SAE埋入式接頭，使用無螺紋的埋入孔進行裝配，實現了安裝前后，整個系統的密封完整性。這種緊湊型設計能夠保障生產過程裝配的自動化進程，同時增加了系統的穩定性。而且埋入式接頭與元件渾然一體，無需使用螺紋安裝，也就免除了螺紋連接處可能存在的泄漏。使用埋入式接頭，也無需像壓縮式接頭那樣擰緊螺母，尤其適合于安裝空間有限，需要多回路安裝的應用場合，同時也降低了安裝時間。使用埋入式接頭也減少了誤用螺紋，或者是安裝不到位或者過度安裝導致返工的情況發生。該系列SAE埋入式接頭符合D.O.T.FMVSS571.106標準以及SAE J2231標準的相關的性能要求，埋入孔設計需符合SAE J2494-4的要求，埋入孔材料需符合6061-T6標準鋁材料。如果使用其他材料而不是6061-T的話，則埋入孔尺寸需要參考J2494-4標準進行輕微調整。

Parker's SAE encapsulated cartridge allows the user to eliminate the space and labor required to install and assemble a conventional pipe thread fitting. Parker has developed an SAE encapsulated cartridge guaranteeing the integrity of the sealing system before and after assembly in non-threaded cavities. The compact design of the one –piece cartridge enables automation of your manufacturing process and improves the reliability of your system. The cartridge becomes an integral of the component, eliminating threaded connections and the possibility of spiral leakage along the mating threads. Cartridges eliminate the tightening of compression nuts allowing for more compact assemblies and reduced assembly times. Cartridges reduce costly rework due to cross threading and over/under torqueing of the fitting. The SAE encapsulated cartridge meets performance requirements of D.O.T. FMVSS571.106 and SAE J2231 and the proposed dimensional standards of SAE J2494-4 in 6061-T6 aluminum. Cavity dimensions specified by SAE J2494-4 need to be adjusted slightly for optimum performance in material other than 6061-T.

市場：

- 工業技術
- 氣動技術
- 過濾
- 半導體
- 生命科學
- 自動化
- 重卡

特征/優勢：

- 當埋入式接頭壓入安裝孔時，可以自動對中調整
- 快插式連接技術
- 無需加工螺紋，可以直接將接頭壓入埋入孔
- 預先安裝密封圈，并且經黃油潤滑以及保護了接頭不受損壞
- 從加工制造到總裝的過程中，都免于污染進入接頭內部
- 大包裝設計，適用于自動裝配過程
- SAE & NSF 兩種形式埋入接頭可供

應用：

- 空氣管路
- 水路
- 飲料分配器
- 汽車控制設備
- 包裝
- 標簽機
- 機器人

Markets:
- Industrial
- Pneumatic
- Filtration
- Semi-conductor
- Life Science
- Automation
- Heavy Duty Truck

Features/Benefits:
- Self-centering of the cartridge in the cavity
- Push-in connection
- No thread to be machined for inserting the fitting into its cavity
- Seal pre-assembled, greased and protected
- Product protected against contamination, from manufacture to installation
- Packaging designed for automation assembly process
- SAE & NSF cartridges available

Applications:
- Air lines
- Water lines
- Beverage dispensing
- Cab controls
- Packaging
- Labeling
- Robotics

Technical Specifications

Push-to-Connect Cartridges, Transportation 型號
