按壓式連接全塑料符合 FDA 標準的接頭，Parker TrueSeal | #A4BU4-MG

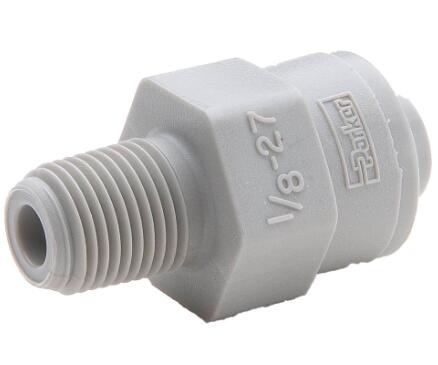

Push-to-Connect all plastic FDA compliant fitting, Parker TrueSeal
Push-to-Connect all plastic FDA compliant fitting, Parker TrueSeal
Parker Fittings接頭 - Pneumatic Fittings
Parker TrueSeal 推入式管接頭由符合 FDA 標準的材料制成，并已通過 NSF-51 認證，可與食品接觸。灰色縮醛接頭符合 NSF-61 對飲用水的要求。Parker 的 TrueSeal 熱塑性推入式接頭重量輕，可現場安裝，無需使用工具即可快速連接到管道。TrueSeal 是一種堅固耐用的推入式接頭，非常適合水處理和惡劣的化學環境。TrueSeal 接頭有乙縮醛、聚丙烯和 Kynar 可供選擇，符合 FDA 和 NSF 51 標準；灰色縮醛符合 NSF 61 標準。乙縮醛和聚丙烯中的 TrueSeal 具有 EPDM 密封，Kynar 具有碳氟化合物密封。TrueSeal 中的夾持環可提供不銹鋼咬邊或工程熱塑性咬邊。
Push-to-Connect all plastic FDA compliant fitting, Parker TrueSeal
與派克 Parflex Division 管一起使用：
- 聚乙烯
- 聚丙烯
- 尼龍
- 乙烯基
- 含氟聚合物
- 聚氨酯
- Kynar
市場：
- 食品
- 飲用水
- 化工
- 過濾
- 飲料
特性和優點：
- 咬合齒可提供不銹鋼或工程熱塑性咬合邊緣
- 乙縮醛、聚丙烯和 Kynar 主體材料
- 工程 O 形圈增加管上的密封壓縮
- 乙縮醛和聚丙烯中的 EPDM 密封，Kynar 材料中的碳氟化合物
- FDA符合標準
- 所有接頭均符合NSF-51 標準
- 灰色乙縮醛接頭為 NSF-61
- 1/4" - 1/2" 管尺寸
- NPT 螺紋
- 按鈕釋放
- 與聚乙烯、聚丙烯、尼龍、乙烯基、含氟聚合物、聚氨酯一起使用, 凱納爾
應用：
- 空氣
- 水
- 反滲透
- 啤酒和葡萄酒
- 分配系統
可根據要求提供定制配置和尺寸。聯系我們獲取更多信息。
Parker's TrueSeal push-in tube fittings are manufactured from FDA compliant materials and are NSF-51 listed for contact with food. Gray acetal fittings meet NSF-61 requirements for potable water. Parker's TrueSeal thermoplastic push fit fittings are lightweight, field attachable and quickly connect to tubing without the use of tools. TrueSeal is a robust push-to-connect fitting ideal for water treatment and harsh chemical environments. Available in Acetal, Polypropylene and Kynar, TrueSeal fittings offer FDA and NSF 51 compliance; NSF 61 compliance in gray Acetal. TrueSeal in Acetal and Polypropylene has an EPDM seal, Kynar has a fluorocarbon seal. The gripping ring in TrueSeal is available with either a stainless-steel bite edge or an engineered thermoplastic bite edge.
Use with Parker Parflex Division tubing:
- Polyethylene
- Polypropylene
- Nylon
- Vinyl
- Fluoropolymer
- Polyurethane
- Kynar
Markets:
- Food
- Potable water
- Chemical
- Filtration
- Beverage
Features and Benefits:
- Gripping teeth available in stainless steel or with and engineered thermoplastic bite edge
- Acetal, Polypropylene and Kynar body material
- Engineered O-ring increases seal compression on tube
- EPDM seal in Acetal and Polypropylene, fluorocarbon in Kynar material
- FDA Compliant
- All fittings are NSF-51 listed
- Gray Acetal fittings are NSF-61
- 1/4" - 1/2" tube size
- NPT threads
- Push button release
- Use with Polyethylene, Polypropylene, Nylon, Vinyl, Fluoropolymer, Polyurethane, Kynar
Applications:
- Air
- Water
- Reverse Osmosis
- Beer & wine
- Dispensing systems
Custom configurations and sizes are available upon request. Contact us for additional information.
Technical Specifications
技術規格
- 連接 2 螺紋尺寸（英寸）： 吶
- 連接 2 管內徑（英寸）： 吶
- 連接 1 管桿外徑（英寸）： 吶
- 連接 2 管桿外徑（英寸）： 吶
- 機身材質： 乙縮醛
- 連接 1 管外徑（英寸）： 1/4
- 連接 2 管外徑（英寸）： 1/4
- 連接 2 樣式： 一鍵連接
- 連接 1 樣式： 一鍵連接
- 形狀： 艙壁
- 風格： 管對管
- 最低工作溫度： -20°F，-29°C
- 最高工作溫度： 180°F，85°C
- 最大工作壓力： 300 磅/平方英寸，20 巴
- 管材： 聚乙烯、聚丙烯、尼龍、乙烯基、含氟聚合物、聚氨酯
- 媒體： 空氣、水、軟飲料、啤酒、葡萄酒、染料
- 應用： 過濾、食品加工、配藥、醫療、水凈化
- O形圈材料： 三元乙丙橡膠
- 符合規格： FDA、NSF-51、NSF-61
Push-to-Connect all plastic FDA compliant fitting, Parker TrueSeal 型號
| Parts |
Shape |
Style |
Body Material |
Connection 1 Tube O.D. (inch) |
Connection 1 Tube Stem O.D. (inch) |
Connection 1 Style |
Connection 2 Tube O.D. (inch) |
| A4BU4-MG |
Bulkhead |
Tube to Tube |
Acetal |
1/4 |
na |
Push-to-Connect |
1/4 |
| A4CAP-MG |
Cap |
Tube |
Acetal |
1/4 |
na |
Push-to-Connect |
na |
| A4CU4-MG |
Cross |
Tube to Tube |
Acetal |
1/4 |
na |
Push-to-Connect |
1/4 |
| A4EU4-MG |
90° Elbow |
Tube to Tube |
Acetal |
1/4 |
na |
Push-to-Connect |
1/4 |
| A4FA7-MG |
Faucet Adapter |
Tube to Female Pipe |
Acetal |
1/4 |
na |
Push-to-Connect |
na |
| A4FC2-MG |
Connector |
Tube to Female Pipe |
Acetal |
1/4 |
na |
Push-to-Connect |
na |
| A4FC4-MG |
Connector |
Tube to Female Pipe |
Acetal |
1/4 |
na |
Push-to-Connect |
na |
| A4FE4-MG |
90° Elbow |
Tube to Female Pipe |
Acetal |
1/4 |
na |
Push-to-Connect |
na |
| A4FF4-MG |
Connector |
Tube to Female Flare |
Acetal |
1/4 |
na |
Push-to-Connect |
na |
| A4MC2-MG |
Connector |
Tube to Pipe |
Acetal |
1/4 |
na |
Push-to-Connect |
na |
| A4MC4-MG |
Connector |
Tube to Pipe |
Acetal |
1/4 |
na |
Push-to-Connect |
na |
| A4MC6-MG |
Connector |
Tube to Pipe |
Acetal |
1/4 |
na |
Push-to-Connect |
na |
| A4ME2-MG |
90° Elbow |
Tube to Pipe |
Acetal |
1/4 |
na |
Push-to-Connect |
na |
| A4ME4-MG |
90° Elbow |
Tube to Pipe |
Acetal |
1/4 |
na |
Push-to-Connect |
na |
| A4ME6-MG |
90° Elbow |
Tube to Pipe |
Acetal |
1/4 |
na |
Push-to-Connect |
na |
| A4MES2-MG |
90° Swivel Elbow |
Tube to Pipe |
Acetal |
1/4 |
na |
Push-to-Connect |
na |
| A4MES4-MG |
90° Swivel Elbow |
Tube to Pipe |
Acetal |
1/4 |
na |
Push-to-Connect |
na |
| A4MES6-MG |
90° Swivel Elbow |
Tube to Pipe |
Acetal |
1/4 |
na |
Push-to-Connect |
na |
| A4MRS2-MG |
Run Tee |
Tube to Pipe |
Acetal |
1/4 |
na |
Push-to-Connect |
na |
| A4MRS4-MG |
Run Tee |
Tube to Pipe |
Acetal |
1/4 |
na |
Push-to-Connect |
na |
| A4MTS2-MG |
Branch Tee |
Tube to Pipe |
Acetal |
1/4 |
na |
Push-to-Connect |
na |
| A4MTS4-MG |
Branch Tee |
Tube to Pipe |
Acetal |
1/4 |
na |
Push-to-Connect |
na |
| A4RD5-MG |
Tube Reducer |
Tube to Tube Stem |
Acetal |
1/4 |
na |
Push-to-Connect |
na |
| A4RD6-MG |
Tube Reducer |
Tube to Tube Stem |
Acetal |
1/4 |
na |
Push-to-Connect |
na |
| A4TCB4 |
Connector |
Tube to Barb |
Acetal |
na |
1/4 |
Tube Stem |
na |
| A4TEB4 |
90° Elbow |
Tube to Barb |
Acetal |
na |
1/4 |
Tube Stem |
na |
| A4TEU4-MG |
90° Elbow |
Tube to Tube Stem |
Acetal |
1/4 |
na |
Push-to-Connect |
na |
| A4TEU6-MG |
90° Elbow |
Tube to Tube Stem |
Acetal |
1/4 |
na |
Push-to-Connect |
na |
| A4TMC2 |
Connector |
Tube Stem to Pipe |
Acetal |
1/4 |
na |
Push-to-Connect |
na |
| A4TMC4 |
Connector |
Tube Stem to Pipe |
Acetal |
1/4 |
na |
Push-to-Connect |
na |
| A4TPL |
Plug |
Tube Stem |
Acetal |
1/4 |
na |
Push-to-Connect |
na |
| A4TU4-MG |
Tee |
Tube to Tube |
Acetal |
1/4 |
na |
Push-to-Connect |
1/4 |
| A4UC4-MG |
Union |
Tube to Tube |
Acetal |
1/4 |
na |
Push-to-Connect |
1/4 |
| A5BU5-MG |
Bulkhead |
Tube to Tube |
Acetal |
5/16 |
na |
Push-to-Connect |
5/16 |
| A5EU4-MG |
90° Elbow |
Tube to Tube |
Acetal |
5/16 |
na |
Push-to-Connect |
1/4 |
| A5EU5-MG |
90° Elbow |
Tube to Tube |
Acetal |
5/16 |
na |
Push-to-Connect |
5/16 |
| A5FA7-MG |
Faucet Adapter |
Tube to Female Pipe |
Acetal |
5/16 |
na |
Push-to-Connect |
na |
| A5FC4-MG |
Connector |
Tube to Female Pipe |
Acetal |
5/16 |
na |
Push-to-Connect |
na |
| A5FC6-MG |
Connector |
Tube to Female Pipe |
Acetal |
5/16 |
na |
Push-to-Connect |
na |
| A5MC2-MG |
Connector |
Tube to Pipe |
Acetal |
5/16 |
na |
Push-to-Connect |
na |
| A5MC4-MG |
Connector |
Tube to Pipe |
Acetal |
5/16 |
na |
Push-to-Connect |
na |
| A5MC6-MG |
Connector |
Tube to Pipe |
Acetal |
5/16 |
na |
Push-to-Connect |
na |
| A5ME4-MG |
90° Elbow |
Tube to Pipe |
Acetal |
5/16 |
na |
Push-to-Connect |
na |
| A5ME6-MG |
90° Elbow |
Tube to Pipe |
Acetal |
5/16 |
na |
Push-to-Connect |
na |
| A5MES2-MG |
90° Swivel Elbow |
Tube to Pipe |
Acetal |
5/16 |
na |
Push-to-Connect |
na |
| A5MES4-MG |
90° Swivel Elbow |
Tube to Pipe |
Acetal |
5/16 |
na |
Push-to-Connect |
na |
| A5MES6-MG |
90° Swivel Elbow |
Tube to Pipe |
Acetal |
5/16 |
na |
Push-to-Connect |
na |
| A5MRS2-MG |
Run Tee |
Tube to Pipe |
Acetal |
5/16 |
na |
Push-to-Connect |
na |
| A5MRS4-MG |
Run Tee |
Tube to Pipe |
Acetal |
5/16 |
na |
Push-to-Connect |
na |
| A5MRS6-MG |
Run Tee |
Tube to Pipe |
Acetal |
5/16 |
na |
Push-to-Connect |
na |
| A5MTS2-MG |
Branch Tee |
Tube to Pipe |
Acetal |
5/16 |
na |
Push-to-Connect |
na |
| A5MTS4-MG |
Branch Tee |
Tube to Pipe |
Acetal |
5/16 |
na |
Push-to-Connect |
na |
| A5MTS6-MG |
Branch Tee |
Tube to Pipe |
Acetal |
5/16 |
na |
Push-to-Connect |
na |
| A5RD6-MG |
Tube Reducer |
Tube to Tube Stem |
Acetal |
5/16 |
na |
Push-to-Connect |
na |
| A5RD8-MG |
Tube Reducer |
Tube to Tube Stem |
Acetal |
5/16 |
na |
Push-to-Connect |
na |
| A5TEU5-MG |
90° Elbow |
Tube to Tube Stem |
Acetal |
5/16 |
na |
Push-to-Connect |
na |
| A5TMC2 |
Connector |
Tube Stem to Pipe |
Acetal |
5/16 |
na |
Push-to-Connect |
na |
| A5TMC4 |
Connector |
Tube Stem to Pipe |
Acetal |
5/16 |
na |
Push-to-Connect |
na |
| A5TMC6 |
Connector |
Tube Stem to Pipe |
Acetal |
5/16 |
na |
Push-to-Connect |
na |
| A5TU5-MG |
Tee |
Tube to Tube |
Acetal |
5/16 |
na |
Push-to-Connect |
5/16 |
| A5UC4-MG |
Union |
Tube to Tube |
Acetal |
5/16 |
na |
Push-to-Connect |
1/4 |
| A5UC5-MG |
Union |
Tube to Tube |
Acetal |
5/16 |
na |
Push-to-Connect |
5/16 |
| A5WY5-MG |
Y Union |
Tube to Tube |
Acetal |
5/16 |
na |
Push-to-Connect |
5/16 |
| A6BU4-MG |
Bulkhead |
Tube to Tube |
Acetal |
3/8 |
na |
Push-to-Connect |
1/4 |
| A6BU6-MG |
Bulkhead |
Tube to Tube |
Acetal |
3/8 |
na |
Push-to-Connect |
3/8 |
| A6CAP-MG |
Cap |
Tube |
Acetal |
3/8 |
na |
Push-to-Connect |
na |
| A6CU6-MG |
Cross |
Tube to Tube |
Acetal |
3/8 |
na |
Push-to-Connect |
3/8 |
| A6EU4-MG |
90° Elbow |
Tube to Tube |
Acetal |
3/8 |
na |
Push-to-Connect |
1/4 |
| A6EU5-MG |
90° Elbow |
Tube to Tube |
Acetal |
3/8 |
na |
Push-to-Connect |
5/16 |
| A6EU6-MG |
90° Elbow |
Tube to Tube |
Acetal |
3/8 |
na |
Push-to-Connect |
3/8 |
| A6FA7-MG |
Faucet Adapter |
Tube to Female Pipe |
Acetal |
3/8 |
na |
Push-to-Connect |
na |
| A6FC4-MG |
Connector |
Tube to Female Pipe |
Acetal |
3/8 |
na |
Push-to-Connect |
na |
| A6FC6-MG |
Connector |
Tube to Female Pipe |
Acetal |
3/8 |
na |
Push-to-Connect |
na |
| A6FC8-MG |
Connector |
Tube to Female Pipe |
Acetal |
3/8 |
na |
Push-to-Connect |
na |
| A6FE4-MG |
90° Elbow |
Tube to Female Pipe |
Acetal |
3/8 |
na |
Push-to-Connect |
na |
| A6FE6-MG |
90° Elbow |
Tube to Female Pipe |
Acetal |
3/8 |
na |
Push-to-Connect |
na |
| A6FF4-MG |
Connector |
Tube to Female Flare |
Acetal |
3/8 |
na |
Push-to-Connect |
na |
| A6FF6-MG |
Connector |
Tube to Female Flare |
Acetal |
3/8 |
na |
Push-to-Connect |
na |
| A6MC2-MG |
Connector |
Tube to Pipe |
Acetal |
3/8 |
na |
Push-to-Connect |
na |
| A6MC4-MG |
Connector |
Tube to Pipe |
Acetal |
3/8 |
na |
Push-to-Connect |
na |
| A6MC6-MG |
Connector |
Tube to Pipe |
Acetal |
3/8 |
na |
Push-to-Connect |
na |
| A6MC8-MG |
Connector |
Tube to Pipe |
Acetal |
3/8 |
na |
Push-to-Connect |
na |
| A6ME4-MG |
90° Elbow |
Tube to Pipe |
Acetal |
3/8 |
na |
Push-to-Connect |
na |
| A6ME6-MG |
90° Elbow |
Tube to Pipe |
Acetal |
3/8 |
na |
Push-to-Connect |
na |
| A6MES2-MG |
90° Swivel Elbow |
Tube to Pipe |
Acetal |
3/8 |
na |
Push-to-Connect |
na |
| A6MES4-MG |
90° Swivel Elbow |
Tube to Pipe |
Acetal |
3/8 |
na |
Push-to-Connect |
na |
| A6MES6-MG |
90° Swivel Elbow |
Tube to Pipe |
Acetal |
3/8 |
na |
Push-to-Connect |
na |
| A6MRS4-MG |
Run Tee |
Tube to Pipe |
Acetal |
3/8 |
na |
Push-to-Connect |
na |
| A6MRS6-MG |
Run Tee |
Tube to Pipe |
Acetal |
3/8 |
na |
Push-to-Connect |
na |
| A6MTS2-MG |
Branch Tee |
Tube to Pipe |
Acetal |
3/8 |
na |
Push-to-Connect |
na |
| A6MTS4-MG |
Branch Tee |
Tube to Pipe |
Acetal |
3/8 |
na |
Push-to-Connect |
na |
| A6MTS6-MG |
Branch Tee |
Tube to Pipe |
Acetal |
3/8 |
na |
Push-to-Connect |
na |
| A6RD8-MG |
Tube Reducer |
Tube to Tube Stem |
Acetal |
3/8 |
na |
Push-to-Connect |
na |
| A6ST9-MG |
Connector |
Tube to Straight Thread |
Acetal |
3/8 |
na |
Push-to-Connect |
na |
| A6TCB4 |
Connector |
Tube to Barb |
Acetal |
na |
3/8 |
Tube Stem |
na |
| A6TCB6 |
Connector |
Tube to Barb |
Acetal |
na |
3/8 |
Tube Stem |
na |
| A6TEB4 |
90° Elbow |
Tube to Barb |
Acetal |
na |
3/8 |
Tube Stem |
na |
| A6TEB6 |
90° Elbow |
Tube to Barb |
Acetal |
na |
3/8 |
Tube Stem |
na |
| A6TEU4-MG |
90° Elbow |
Tube to Tube Stem |
Acetal |
3/8 |
na |
Push-to-Connect |
na |
| A6TEU6-MG |
90° Elbow |
Tube to Tube Stem |
Acetal |
3/8 |
na |
Push-to-Connect |
na |
| Parts |
Shape |
Style |
Body Material |
Connection 1 Tube O.D. (inch) |
Connection 1 Tube Stem O.D. (inch) |
Connection 1 Style |
Connection 2 Tube O.D. (inch) |
| A6TMC4 |
Connector |
Tube Stem to Pipe |
Acetal |
3/8 |
na |
Push-to-Connect |
na |
| A6TMC6 |
Connector |
Tube Stem to Pipe |
Acetal |
3/8 |
na |
Push-to-Connect |
na |
| A6TMC8 |
Connector |
Tube Stem to Pipe |
Acetal |
3/8 |
na |
Push-to-Connect |
na |
| A6TPL |
Plug |
Tube Stem |
Acetal |
3/8 |
na |
Push-to-Connect |
na |
| A6TU4-MG |
Tee |
Tube to Tube |
Acetal |
3/8 |
na |
Push-to-Connect |
1/4 |
| A6TU6-MG |
Tee |
Tube to Tube |
Acetal |
3/8 |
na |
Push-to-Connect |
3/8 |
| A6UC4-MG |
Union |
Tube to Tube |
Acetal |
3/8 |
na |
Push-to-Connect |
1/4 |
| A6UC5-MG |
Union |
Tube to Tube |
Acetal |
3/8 |
na |
Push-to-Connect |
5/16 |
| A6UC6-MG |
Union |
Tube to Tube |
Acetal |
3/8 |
na |
Push-to-Connect |
3/8 |
| A6WY4-MG |
Y Union |
Tube to Tube |
Acetal |
3/8 |
na |
Push-to-Connect |
1/4 |
| A6WY5-MG |
Y Union |
Tube to Tube |
Acetal |
3/8 |
na |
Push-to-Connect |
5/16 |
| A6WY6-MG |
Y Union |
Tube to Tube |
Acetal |
3/8 |
na |
Push-to-Connect |
3/8 |
| A8BU8-MG |
Bulkhead |
Tube to Tube |
Acetal |
1/2 |
na |
Push-to-Connect |
1/2 |
| A8EU6-MG |
90° Elbow |
Tube to Tube |
Acetal |
1/2 |
na |
Push-to-Connect |
3/8 |
| A8EU8-MG |
90° Elbow |
Tube to Tube |
Acetal |
1/2 |
na |
Push-to-Connect |
1/2 |
| A8FC6-MG |
Connector |
Tube to Female Pipe |
Acetal |
1/2 |
na |
Push-to-Connect |
na |
| A8FC8-MG |
Connector |
Tube to Female Pipe |
Acetal |
1/2 |
na |
Push-to-Connect |
na |
| A8MC6-MG |
Connector |
Tube to Pipe |
Acetal |
1/2 |
na |
Push-to-Connect |
na |
| A8MC8-MG |
Connector |
Tube to Pipe |
Acetal |
1/2 |
na |
Push-to-Connect |
na |
| A8MES4-MG |
90° Swivel Elbow |
Tube to Pipe |
Acetal |
1/2 |
na |
Push-to-Connect |
na |
| A8MES6-MG |
90° Swivel Elbow |
Tube to Pipe |
Acetal |
1/2 |
na |
Push-to-Connect |
na |
| A8MES8-MG |
90° Swivel Elbow |
Tube to Pipe |
Acetal |
1/2 |
na |
Push-to-Connect |
na |
| A8MRS4-MG |
Run Tee |
Tube to Pipe |
Acetal |
1/2 |
na |
Push-to-Connect |
na |
| A8MRS6-MG |
Run Tee |
Tube to Pipe |
Acetal |
1/2 |
na |
Push-to-Connect |
na |
| A8MRS8-MG |
Run Tee |
Tube to Pipe |
Acetal |
1/2 |
na |
Push-to-Connect |
na |
| A8MTS4-MG |
Branch Tee |
Tube to Pipe |
Acetal |
1/2 |
na |
Push-to-Connect |
na |
| A8MTS6-MG |
Branch Tee |
Tube to Pipe |
Acetal |
1/2 |
na |
Push-to-Connect |
na |
| A8MTS8-MG |
Branch Tee |
Tube to Pipe |
Acetal |
1/2 |
na |
Push-to-Connect |
na |
| A8TCB6 |
Connector |
Tube to Barb |
Acetal |
na |
1/2 |
Tube Stem |
na |
| A8TCB8 |
Connector |
Tube to Barb |
Acetal |
na |
1/2 |
Tube Stem |
na |
| A8TEB8 |
90° Elbow |
Tube to Barb |
Acetal |
na |
1/2 |
Tube Stem |
na |
| A8TEU8-MG |
90° Elbow |
Tube to Tube Stem |
Acetal |
1/2 |
na |
Push-to-Connect |
na |
| A8TMC4 |
Connector |
Tube Stem to Pipe |
Acetal |
1/2 |
na |
Push-to-Connect |
na |
| A8TMC6 |
Connector |
Tube Stem to Pipe |
Acetal |
1/2 |
na |
Push-to-Connect |
na |
| A8TMC8 |
Connector |
Tube Stem to Pipe |
Acetal |
1/2 |
na |
Push-to-Connect |
na |
| A8TPL |
Plug |
Tube Stem |
Acetal |
1/2 |
na |
Push-to-Connect |
na |
| A8TU8-MG |
Tee |
Tube to Tube |
Acetal |
1/2 |
na |
Push-to-Connect |
1/2 |
| A8UC5-MG |
Union |
Tube to Tube |
Acetal |
1/2 |
na |
Push-to-Connect |
5/16 |
| A8UC6-MG |
Union |
Tube to Tube |
Acetal |
1/2 |
na |
Push-to-Connect |
3/8 |
| A8UC8-MG |
Union |
Tube to Tube |
Acetal |
1/2 |
na |
Push-to-Connect |
1/2 |
| AW6TAF7-MG |
Faucet Adapter |
Tube Stem to Pipe |
Acetal |
na |
3/8 |
Tube Stem |
na |
| AW6TAF8-MG |
Faucet Adapter |
Tube Stem to Pipe |
Acetal |
na |
3/8 |
Tube Stem |
na |
| AW6TAF9-MG |
Faucet Adapter |
Tube Stem to Pipe |
Acetal |
na |
3/8 |
Tube Stem |
na |
| AW6TFA7-MG |
Faucet Adapter |
Tube Stem to Female Pipe |
Acetal |
na |
3/8 |
Tube Stem |
na |
| AW6TFA8-MG |
Faucet Adapter |
Tube Stem to Female Pipe |
Acetal |
na |
3/8 |
Tube Stem |
na |
| AW6TFA9-MG |
Faucet Adapter |
Tube Stem to Female Pipe |
Acetal |
na |
3/8 |
Tube Stem |
na |
| F4BU4 |
Bulkhead |
Tube to Tube |
Kynar |
1/4 |
na |
Push-to-Connect |
1/4 |
| F4CAP |
Cap |
Tube |
Kynar |
1/4 |
na |
Push-to-Connect |
na |
| F4EU4 |
90° Elbow |
Tube to Tube |
Kynar |
1/4 |
na |
Push-to-Connect |
1/4 |
| F4FA7 |
Faucet Adapter |
Tube to Female Pipe |
Kynar |
1/4 |
na |
Push-to-Connect |
na |
| F4FC2 |
Connector |
Tube to Female Pipe |
Kynar |
1/4 |
na |
Push-to-Connect |
na |
| F4FC4 |
Connector |
Tube to Female Pipe |
Kynar |
1/4 |
na |
Push-to-Connect |
na |
| F4FF4 |
Connector |
Tube to Female Flare |
Kynar |
1/4 |
na |
Push-to-Connect |
na |
| F4MC2 |
Connector |
Tube to Pipe |
Kynar |
1/4 |
na |
Push-to-Connect |
na |
| F4MC4 |
Connector |
Tube to Pipe |
Kynar |
1/4 |
na |
Push-to-Connect |
na |
| F4MC6 |
Connector |
Tube to Pipe |
Kynar |
1/4 |
na |
Push-to-Connect |
na |
| F4ME2 |
90° Elbow |
Tube to Pipe |
Kynar |
1/4 |
na |
Push-to-Connect |
na |
| F4ME4 |
90° Elbow |
Tube to Pipe |
Kynar |
1/4 |
na |
Push-to-Connect |
na |
| F4ME6 |
90° Elbow |
Tube to Pipe |
Kynar |
1/4 |
na |
Push-to-Connect |
na |
| F4MES2 |
90° Swivel Elbow |
Tube to Pipe |
Kynar |
1/4 |
na |
Push-to-Connect |
na |
| F4MES4 |
90° Swivel Elbow |
Tube to Pipe |
Kynar |
1/4 |
na |
Push-to-Connect |
na |
| F4MES6 |
90° Swivel Elbow |
Tube to Pipe |
Kynar |
1/4 |
na |
Push-to-Connect |
na |
| F4MRS2 |
Run Tee |
Tube to Pipe |
Kynar |
1/4 |
na |
Push-to-Connect |
na |
| F4MRS4 |
Run Tee |
Tube to Pipe |
Kynar |
1/4 |
na |
Push-to-Connect |
na |
| F4MTS2 |
Branch Tee |
Tube to Pipe |
Kynar |
1/4 |
na |
Push-to-Connect |
na |
| F4MTS4 |
Branch Tee |
Tube to Pipe |
Kynar |
1/4 |
na |
Push-to-Connect |
na |
| F4TCB4 |
Connector |
Tube to Barb |
Kynar |
na |
1/4 |
Tube Stem |
na |
| F4TEB4 |
90° Elbow |
Tube to Barb |
Kynar |
na |
1/4 |
Tube Stem |
na |
| F4TEU4 |
90° Elbow |
Tube to Tube Stem |
Kynar |
1/4 |
na |
Push-to-Connect |
na |
| F4TEU6 |
90° Elbow |
Tube to Tube Stem |
Kynar |
1/4 |
na |
Push-to-Connect |
na |
| F4TMC2 |
Connector |
Tube Stem to Pipe |
Kynar |
na |
1/4 |
Tube Stem |
na |
| F4TMC4 |
Connector |
Tube Stem to Pipe |
Kynar |
na |
1/4 |
Tube Stem |
na |
| F4TPL |
Plug |
Tube Stem |
Kynar |
na |
1/4 |
Tube Stem |
na |
| F4TU4 |
Tee |
Tube to Tube |
Kynar |
1/4 |
na |
Push-to-Connect |
1/4 |
| F4UC4 |
Union |
Tube to Tube |
Kynar |
1/4 |
na |
Push-to-Connect |
1/4 |
| F6BU6 |
Bulkhead |
Tube to Tube |
Kynar |
3/8 |
na |
Push-to-Connect |
3/8 |
| F6EU4 |
90° Elbow |
Tube to Tube |
Kynar |
3/8 |
na |
Push-to-Connect |
1/4 |
| F6EU6 |
90° Elbow |
Tube to Tube |
Kynar |
3/8 |
na |
Push-to-Connect |
3/8 |
| F6FA7 |
Faucet Adapter |
Tube to Female Pipe |
Kynar |
3/8 |
na |
Push-to-Connect |
na |
| F6FC4 |
Connector |
Tube to Female Pipe |
Kynar |
3/8 |
na |
Push-to-Connect |
na |
| F6FC6 |
Connector |
Tube to Female Pipe |
Kynar |
3/8 |
na |
Push-to-Connect |
na |
| F6FF4 |
Connector |
Tube to Female Flare |
Kynar |
3/8 |
na |
Push-to-Connect |
na |
| F6FF6 |
Connector |
Tube to Female Flare |
Kynar |
3/8 |
na |
Push-to-Connect |
na |
| F6MC2 |
Connector |
Tube to Pipe |
Kynar |
3/8 |
na |
Push-to-Connect |
na |
| F6MC4 |
Connector |
Tube to Pipe |
Kynar |
3/8 |
na |
Push-to-Connect |
na |
| F6MC6 |
Connector |
Tube to Pipe |
Kynar |
3/8 |
na |
Push-to-Connect |
na |
| F6MC8 |
Connector |
Tube to Pipe |
Kynar |
3/8 |
na |
Push-to-Connect |
na |
| F6ME4 |
90° Elbow |
Tube to Pipe |
Kynar |
3/8 |
na |
Push-to-Connect |
na |
| F6ME6 |
90° Elbow |
Tube to Pipe |
Kynar |
3/8 |
na |
Push-to-Connect |
na |
| F6MES2 |
90° Swivel Elbow |
Tube to Pipe |
Kynar |
3/8 |
na |
Push-to-Connect |
na |
| F6MES4 |
90° Swivel Elbow |
Tube to Pipe |
Kynar |
3/8 |
na |
Push-to-Connect |
na |
| F6MES6 |
90° Swivel Elbow |
Tube to Pipe |
Kynar |
3/8 |
na |
Push-to-Connect |
na |
| F6MRS4 |
Run Tee |
Tube to Pipe |
Kynar |
3/8 |
na |
Push-to-Connect |
na |
| F6MRS6 |
Run Tee |
Tube to Pipe |
Kynar |
3/8 |
na |
Push-to-Connect |
na |
| F6MTS2 |
Branch Tee |
Tube to Pipe |
Kynar |
3/8 |
na |
Push-to-Connect |
na |
| F6MTS4 |
Branch Tee |
Tube to Pipe |
Kynar |
3/8 |
na |
Push-to-Connect |
na |
| F6MTS6 |
Branch Tee |
Tube to Pipe |
Kynar |
3/8 |
na |
Push-to-Connect |
na |
| F6ST9 |
Connector |
Tube to Pipe |
Kynar |
3/8 |
na |
Push-to-Connect |
na |
| F6TCB4 |
Connector |
Tube to Barb |
Kynar |
na |
3/8 |
Tube Stem |
na |
| F6TCB6 |
Connector |
Tube to Barb |
Kynar |
na |
3/8 |
Tube Stem |
na |
| Parts |
Shape |
Style |
Body Material |
Connection 1 Tube O.D. (inch) |
Connection 1 Tube Stem O.D. (inch) |
Connection 1 Style |
Connection 2 Tube O.D. (inch) |
| F6TEB6 |
90° Elbow |
Tube to Barb |
Kynar |
na |
3/8 |
Tube Stem |
na |
| F6TEU4 |
90° Elbow |
Tube to Tube Stem |
Kynar |
3/8 |
na |
Push-to-Connect |
na |
| F6TEU6 |
90° Elbow |
Tube to Tube Stem |
Kynar |
3/8 |
na |
Push-to-Connect |
na |
| F6TMC4 |
Connector |
Tube Stem to Pipe |
Kynar |
na |
3/8 |
Tube Stem |
na |
| F6TMC6 |
Connector |
Tube Stem to Pipe |
Kynar |
na |
3/8 |
Tube Stem |
na |
| F6TPL |
Plug |
Tube Stem |
Kynar |
na |
3/8 |
Tube Stem |
na |
| F6TU4 |
Tee |
Tube to Tube |
Kynar |
3/8 |
na |
Push-to-Connect |
1/4 |
| F6TU6 |
Tee |
Tube to Tube |
Kynar |
3/8 |
na |
Push-to-Connect |
3/8 |
| F6UC4 |
Union |
Tube to Tube |
Kynar |
3/8 |
na |
Push-to-Connect |
1/4 |
| F6UC6 |
Union |
Tube to Tube |
Kynar |
3/8 |
na |
Push-to-Connect |
3/8 |
| FB4BU4-HBLK |
Bulkhead |
Tube to Tube |
Black Kynar |
1/4 |
na |
Push-to-Connect |
1/4 |
| FB4CAP-HBLK |
Cap |
Tube |
Black Kynar |
1/4 |
na |
Push-to-Connect |
na |
| FB4EU4-HBLK |
90° Elbow |
Tube to Tube |
Black Kynar |
1/4 |
na |
Push-to-Connect |
1/4 |
| FB4FA7-HBLK |
Faucet Adapter |
Tube to Female Pipe |
Black Kynar |
1/4 |
na |
Push-to-Connect |
na |
| FB4FC2-HBLK |
Connector |
Tube to Female Pipe |
Black Kynar |
1/4 |
na |
Push-to-Connect |
na |
| FB4FC4-HBLK |
Connector |
Tube to Female Pipe |
Black Kynar |
1/4 |
na |
Push-to-Connect |
na |
| FB4FF4-HBLK |
Connector |
Tube to Female Flare |
Black Kynar |
1/4 |
na |
Push-to-Connect |
na |
| FB4MC2-HBLK |
Connector |
Tube to Pipe |
Black Kynar |
1/4 |
na |
Push-to-Connect |
na |
| FB4MC4-HBLK |
Connector |
Tube to Pipe |
Black Kynar |
1/4 |
na |
Push-to-Connect |
na |
| FB4MC6-HBLK |
Connector |
Tube to Pipe |
Black Kynar |
1/4 |
na |
Push-to-Connect |
na |
| FB4ME2-HBLK |
90° Elbow |
Tube to Pipe |
Black Kynar |
1/4 |
na |
Push-to-Connect |
na |
| FB4ME4-HBLK |
90° Elbow |
Tube to Pipe |
Black Kynar |
1/4 |
na |
Push-to-Connect |
na |
| FB4ME6-HBLK |
90° Elbow |
Tube to Pipe |
Black Kynar |
1/4 |
na |
Push-to-Connect |
na |
| FB4MES2-HBLK |
90° Swivel Elbow |
Tube to Pipe |
Black Kynar |
1/4 |
na |
Push-to-Connect |
na |
| FB4MES4-HBLK |
90° Swivel Elbow |
Tube to Pipe |
Black Kynar |
1/4 |
na |
Push-to-Connect |
na |
| FB4MES6-HBLK |
90° Swivel Elbow |
Tube to Pipe |
Black Kynar |
1/4 |
na |
Push-to-Connect |
na |
| FB4MRS2-HBLK |
Run Tee |
Tube to Pipe |
Black Kynar |
1/4 |
na |
Push-to-Connect |
na |
| FB4MRS4-HBLK |
Run Tee |
Tube to Pipe |
Black Kynar |
1/4 |
na |
Push-to-Connect |
na |
| FB4MTS2-HBLK |
Branch Tee |
Tube to Pipe |
Black Kynar |
1/4 |
na |
Push-to-Connect |
na |
| FB4MTS4-HBLK |
Branch Tee |
Tube to Pipe |
Black Kynar |
1/4 |
na |
Push-to-Connect |
na |
| FB4TCB4 |
Connector |
Tube to Barb |
Black Kynar |
na |
1/4 |
Tube Stem |
na |
| FB4TEB4 |
90° Elbow |
Tube to Barb |
Black Kynar |
na |
1/4 |
Tube Stem |
na |
| FB4TEU4-HBLK |
90° Elbow |
Tube to Tube Stem |
Black Kynar |
1/4 |
na |
Push-to-Connect |
na |
| FB4TEU6-HBLK |
90° Elbow |
Tube to Tube Stem |
Black Kynar |
1/4 |
na |
Push-to-Connect |
na |
| FB4TMC2 |
Connector |
Tube Stem to Pipe |
Black Kynar |
na |
1/4 |
Tube Stem |
na |
| FB4TMC4 |
Connector |
Tube Stem to Pipe |
Black Kynar |
na |
1/4 |
Tube Stem |
na |
| FB4TPL |
Plug |
Tube Stem |
Black Kynar |
na |
1/4 |
Tube Stem |
na |
| FB4TU4-HBLK |
Tee |
Tube to Tube |
Black Kynar |
1/4 |
na |
Push-to-Connect |
1/4 |
| FB4UC4-HBLK |
Union |
Tube to Tube |
Black Kynar |
1/4 |
na |
Push-to-Connect |
1/4 |
| FB6BU6-HBLK |
Bulkhead |
Tube to Tube |
Black Kynar |
3/8 |
na |
Push-to-Connect |
3/8 |
| FB6EU4-HBLK |
90° Elbow |
Tube to Tube |
Black Kynar |
3/8 |
na |
Push-to-Connect |
1/4 |
| FB6EU6-HBLK |
90° Elbow |
Tube to Tube |
Black Kynar |
3/8 |
na |
Push-to-Connect |
3/8 |
| FB6FA7-HBLK |
Faucet Adapter |
Tube to Female Pipe |
Black Kynar |
3/8 |
na |
Push-to-Connect |
na |
| FB6FC4-HBLK |
Connector |
Tube to Female Pipe |
Black Kynar |
3/8 |
na |
Push-to-Connect |
na |
| FB6FC6-HBLK |
Connector |
Tube to Female Pipe |
Black Kynar |
3/8 |
na |
Push-to-Connect |
na |
| FB6FF4-HBLK |
Connector |
Tube to Female Flare |
Black Kynar |
3/8 |
na |
Push-to-Connect |
na |
| FB6FF6-HBLK |
Connector |
Tube to Female Flare |
Black Kynar |
3/8 |
na |
Push-to-Connect |
na |
| FB6MC2-HBLK |
Connector |
Tube to Pipe |
Black Kynar |
3/8 |
na |
Push-to-Connect |
na |
| FB6MC4-HBLK |
Connector |
Tube to Pipe |
Black Kynar |
3/8 |
na |
Push-to-Connect |
na |
| FB6MC6-HBLK |
Connector |
Tube to Pipe |
Black Kynar |
3/8 |
na |
Push-to-Connect |
na |
| FB6MC8-HBLK |
Connector |
Tube to Pipe |
Black Kynar |
3/8 |
na |
Push-to-Connect |
na |
| FB6ME4-HBLK |
90° Elbow |
Tube to Pipe |
Black Kynar |
3/8 |
na |
Push-to-Connect |
na |
| FB6ME6-HBLK |
90° Elbow |
Tube to Pipe |
Black Kynar |
3/8 |
na |
Push-to-Connect |
na |
| Fb6MES2-HBLK |
90° Swivel Elbow |
Tube to Pipe |
Black Kynar |
3/8 |
na |
Push-to-Connect |
na |
| FB6MES4-HBLK |
90° Swivel Elbow |
Tube to Pipe |
Black Kynar |
3/8 |
na |
Push-to-Connect |
na |
| FB6MES6-HBLK |
90° Swivel Elbow |
Tube to Pipe |
Black Kynar |
3/8 |
na |
Push-to-Connect |
na |
| FB6MRS4-HBLK |
Run Tee |
Tube to Pipe |
Black Kynar |
3/8 |
na |
Push-to-Connect |
na |
| FB6MRS6-HBLK |
Run Tee |
Tube to Pipe |
Black Kynar |
3/8 |
na |
Push-to-Connect |
na |
| FB6MTS2-HBLK |
Branch Tee |
Tube to Pipe |
Black Kynar |
3/8 |
na |
Push-to-Connect |
na |
| FB6MTS4-HBLK |
Branch Tee |
Tube to Pipe |
Black Kynar |
3/8 |
na |
Push-to-Connect |
na |
| FB6MTS6-HBLK |
Branch Tee |
Tube to Pipe |
Black Kynar |
3/8 |
na |
Push-to-Connect |
na |
| FB6ST9-HBLK |
Connector |
Tube to Pipe |
Black Kynar |
3/8 |
na |
Push-to-Connect |
na |
| FB6TCB4 |
Connector |
Tube to Barb |
Black Kynar |
na |
3/8 |
Tube Stem |
na |
| FB6TCB6 |
Connector |
Tube to Barb |
Black Kynar |
na |
3/8 |
Tube Stem |
na |
| FB6TEB6 |
90° Elbow |
Tube to Barb |
Black Kynar |
na |
3/8 |
Tube Stem |
na |
| FB6TEU4-HBLK |
90° Elbow |
Tube to Tube Stem |
Black Kynar |
3/8 |
na |
Push-to-Connect |
na |
| FB6TEU6-HBLK |
90° Elbow |
Tube to Tube Stem |
Black Kynar |
3/8 |
na |
Push-to-Connect |
na |
| FB6TMC4 |
Connector |
Tube Stem to Pipe |
Black Kynar |
na |
3/8 |
Tube Stem |
na |
| FB6TMC6 |
Connector |
Tube Stem to Pipe |
Black Kynar |
na |
3/8 |
Tube Stem |
na |
| FB6TPL |
Plug |
Tube Stem |
Black Kynar |
na |
3/8 |
Tube Stem |
na |
| FB6TU4-HBLK |
Tee |
Tube to Tube |
Black Kynar |
3/8 |
na |
Push-to-Connect |
1/4 |
| FB6TU6-HBLK |
Tee |
Tube to Tube |
Black Kynar |
3/8 |
na |
Push-to-Connect |
3/8 |
| FB6UC4-HBLK |
Union |
Tube to Tube |
Black Kynar |
3/8 |
na |
Push-to-Connect |
1/4 |
| FB6UC6-HBLK |
Union |
Tube to Tube |
Black Kynar |
3/8 |
na |
Push-to-Connect |
3/8 |
| PP4BU4 |
Bulkhead |
Tube to Tube |
Polypropylene |
1/4 |
na |
Push-to-Connect |
1/4 |
| PP4CAP |
Cap |
Tube |
Polypropylene |
1/4 |
na |
Push-to-Connect |
na |
| PP4EU4 |
90° Elbow |
Tube to Tube |
Polypropylene |
1/4 |
na |
Push-to-Connect |
1/4 |
| PP4FA7 |
Faucet Adapter |
Tube to Female Pipe |
Polypropylene |
1/4 |
na |
Push-to-Connect |
na |
| PP4FC2 |
Connector |
Tube to Female Pipe |
Polypropylene |
1/4 |
na |
Push-to-Connect |
na |
| PP4FC4 |
Connector |
Tube to Female Pipe |
Polypropylene |
1/4 |
na |
Push-to-Connect |
na |
| PP4FF4 |
Connector |
Tube to Female Flare |
Polypropylene |
1/4 |
na |
Push-to-Connect |
na |
| PP4MC2 |
Connector |
Tube to Pipe |
Polypropylene |
1/4 |
na |
Push-to-Connect |
na |
| PP4MC4 |
Connector |
Tube to Pipe |
Polypropylene |
1/4 |
na |
Push-to-Connect |
na |
| PP4MC6 |
Connector |
Tube to Pipe |
Polypropylene |
1/4 |
na |
Push-to-Connect |
na |
| PP4ME2 |
90° Elbow |
Tube to Pipe |
Polypropylene |
1/4 |
na |
Push-to-Connect |
na |
| PP4ME4 |
90° Elbow |
Tube to Pipe |
Polypropylene |
1/4 |
na |
Push-to-Connect |
na |
| PP4ME6 |
90° Elbow |
Tube to Pipe |
Polypropylene |
1/4 |
na |
Push-to-Connect |
na |
| PP4MES2 |
90° Swivel Elbow |
Tube to Pipe |
Polypropylene |
1/4 |
na |
Push-to-Connect |
na |
| PP4MES4 |
90° Swivel Elbow |
Tube to Pipe |
Polypropylene |
1/4 |
na |
Push-to-Connect |
na |
| PP4MES6 |
90° Swivel Elbow |
Tube to Pipe |
Polypropylene |
1/4 |
na |
Push-to-Connect |
na |
| PP4MRS2 |
Run Tee |
Tube to Pipe |
Polypropylene |
1/4 |
na |
Push-to-Connect |
na |
| PP4MRS4 |
Run Tee |
Tube to Pipe |
Polypropylene |
1/4 |
na |
Push-to-Connect |
na |
| PP4MTS2 |
Branch Tee |
Tube to Pipe |
Polypropylene |
1/4 |
na |
Push-to-Connect |
na |
| PP4MTS4 |
Branch Tee |
Tube to Pipe |
Polypropylene |
1/4 |
na |
Push-to-Connect |
na |
| PP4RD5 |
Tube Reducer |
Tube to Tube Stem |
Polypropylene |
1/4 |
na |
Push-to-Connect |
na |
| PP4RD6 |
Tube Reducer |
Tube to Tube Stem |
Polypropylene |
1/4 |
na |
Push-to-Connect |
na |
| PP4TCB4 |
Connector |
Tube to Barb |
Polypropylene |
na |
1/4 |
Tube Stem |
na |
| PP4TEB4 |
90° Elbow |
Tube to Barb |
Polypropylene |
na |
1/4 |
Tube Stem |
na |
| PP4TEU4 |
90° Elbow |
Tube to Tube Stem |
Polypropylene |
1/4 |
na |
Push-to-Connect |
na |
| PP4TMC2 |
Connector |
Tube Stem to Pipe |
Polypropylene |
na |
1/4 |
Tube Stem |
na |
| Parts |
Shape |
Style |
Body Material |
Connection 1 Tube O.D. (inch) |
Connection 1 Tube Stem O.D. (inch) |
Connection 1 Style |
Connection 2 Tube O.D. (inch) |
| PP4TMC4 |
Connector |
Tube Stem to Pipe |
Polypropylene |
na |
1/4 |
Tube Stem |
na |
| PP4TPL |
Plug |
Tube Stem |
Polypropylene |
na |
1/4 |
Tube Stem |
na |
| PP4TU4 |
Tee |
Tube to Tube |
Polypropylene |
1/4 |
na |
Push-to-Connect |
1/4 |
| PP4UC4 |
Union |
Tube to Tube |
Polypropylene |
1/4 |
na |
Push-to-Connect |
1/4 |
| PP6BU4 |
Bulkhead |
Tube to Tube |
Polypropylene |
3/8 |
na |
Push-to-Connect |
1/4 |
| PP6BU6 |
Bulkhead |
Tube to Tube |
Polypropylene |
3/8 |
na |
Push-to-Connect |
3/8 |
| PP6CAP |
Cap |
Tube |
Polypropylene |
3/8 |
na |
Push-to-Connect |
na |
| PP6EU4 |
90° Elbow |
Tube to Tube |
Polypropylene |
3/8 |
na |
Push-to-Connect |
1/4 |
| PP6EU4-MG |
90° Elbow |
metal gripper |
Polypropylene |
3/8 |
3/8 |
Push-to-Connect |
1/4 |
| PP6EU6 |
90° Elbow |
Tube to Tube |
Polypropylene |
3/8 |
na |
Push-to-Connect |
3/8 |
| PP6FA7 |
Faucet Adapter |
Tube to Female Pipe |
Polypropylene |
3/8 |
na |
Push-to-Connect |
na |
| PP6FC4 |
Connector |
Tube to Female Pipe |
Polypropylene |
3/8 |
na |
Push-to-Connect |
na |
| PP6FC6 |
Connector |
Tube to Female Pipe |
Polypropylene |
3/8 |
na |
Push-to-Connect |
na |
| PP6FF6 |
Connector |
Tube to Female Flare |
Polypropylene |
3/8 |
na |
Push-to-Connect |
na |
| PP6MC4 |
Connector |
Tube to Pipe |
Polypropylene |
3/8 |
na |
Push-to-Connect |
na |
| PP6MC6 |
Connector |
Tube to Pipe |
Polypropylene |
3/8 |
na |
Push-to-Connect |
na |
| PP6MC6-MG |
Male Connector |
metal gripper |
Polypropylene |
3/8 |
3/8 |
Push-to-Connect |
3/8 |
| PP6ME4 |
90° Elbow |
Tube to Pipe |
Polypropylene |
3/8 |
na |
Push-to-Connect |
na |
| PP6ME6 |
90° Elbow |
Tube to Pipe |
Polypropylene |
3/8 |
na |
Push-to-Connect |
na |
| PP6MES4 |
90° Swivel Elbow |
Tube to Pipe |
Polypropylene |
3/8 |
na |
Push-to-Connect |
na |
| PP6MES6 |
90° Swivel Elbow |
Tube to Pipe |
Polypropylene |
3/8 |
na |
Push-to-Connect |
na |
| PP6MRS4 |
Run Tee |
Tube to Pipe |
Polypropylene |
3/8 |
na |
Push-to-Connect |
na |
| PP6MRS6 |
Run Tee |
Tube to Pipe |
Polypropylene |
3/8 |
na |
Push-to-Connect |
na |
| PP6MTS4 |
Branch Tee |
Tube to Pipe |
Polypropylene |
3/8 |
na |
Push-to-Connect |
na |
| PP6MTS6 |
Branch Tee |
Tube to Pipe |
Polypropylene |
3/8 |
na |
Push-to-Connect |
na |
| PP6TCB6 |
Connector |
Tube to Barb |
Polypropylene |
na |
3/8 |
Tube Stem |
na |
| PP6TEB6 |
90° Elbow |
Tube to Barb |
Polypropylene |
na |
3/8 |
Tube Stem |
na |
| PP6TEU6 |
90° Elbow |
Tube to Tube Stem |
Polypropylene |
na |
3/8 |
Tube Stem |
na |
| PP6TMC4 |
Connector |
Tube Stem to Pipe |
Polypropylene |
na |
3/8 |
Tube Stem |
na |
| PP6TMC6 |
Connector |
Tube Stem to Pipe |
Polypropylene |
na |
3/8 |
Tube Stem |
na |
| PP6TPL |
Plug |
Tube Stem |
Polypropylene |
na |
3/8 |
Tube Stem |
na |
| PP6TU4 |
Tee |
Tube to Tube |
Polypropylene |
3/8 |
na |
Push-to-Connect |
1/4 |
| PP6TU6 |
Tee |
Tube to Tube |
Polypropylene |
3/8 |
na |
Push-to-Connect |
3/8 |
| PP6UC4 |
Union |
Tube to Tube |
Polypropylene |
3/8 |
na |
Push-to-Connect |
1/4 |
| PP6UC6 |
Union |
Tube to Tube |
Polypropylene |
3/8 |
na |
Push-to-Connect |
3/8 |
| PP8EU8 |
90° Elbow |
Tube to Tube |
Polypropylene |
1/2 |
na |
Push-to-Connect |
1/2 |
| PP8FC6 |
Connector |
Tube to Female Pipe |
Polypropylene |
1/2 |
na |
Push-to-Connect |
na |
| PP8FC8 |
Connector |
Tube to Female Pipe |
Polypropylene |
1/2 |
na |
Push-to-Connect |
na |
| PP8MC6 |
Connector |
Tube to Pipe |
Polypropylene |
1/2 |
na |
Push-to-Connect |
na |
| PP8MC8 |
Connector |
Tube to Pipe |
Polypropylene |
1/2 |
na |
Push-to-Connect |
na |
| PP8MES6 |
90° Swivel Elbow |
Tube to Pipe |
Polypropylene |
1/2 |
na |
Push-to-Connect |
na |
| PP8MES8 |
90° Swivel Elbow |
Tube to Pipe |
Polypropylene |
1/2 |
na |
Push-to-Connect |
na |
| PP8MRS6 |
Run Tee |
Tube to Pipe |
Polypropylene |
1/2 |
na |
Push-to-Connect |
na |
| PP8MRS8 |
Run Tee |
Tube to Pipe |
Polypropylene |
1/2 |
na |
Push-to-Connect |
na |
| PP8MTS6 |
Branch Tee |
Tube to Pipe |
Polypropylene |
1/2 |
na |
Push-to-Connect |
na |
| PP8MTS8 |
Branch Tee |
Tube to Pipe |
Polypropylene |
1/2 |
na |
Push-to-Connect |
na |
| PP8TEU8 |
90° Elbow |
Tube to Tube Stem |
Polypropylene |
1/2 |
na |
Push-to-Connect |
na |
| PP8TMC6 |
Connector |
Tube Stem to Pipe |
Polypropylene |
na |
1/2 |
Tube Stem |
na |
| PP8TMC8 |
Connector |
Tube Stem to Pipe |
Polypropylene |
na |
1/2 |
Tube Stem |
na |
| PP8TPL |
Plug |
Tube Stem |
Polypropylene |
na |
1/2 |
Tube Stem |
na |
| PP8TU8 |
Tee |
Tube to Tube |
Polypropylene |
1/2 |
na |
Push-to-Connect |
1/2 |
| PP8UC6 |
Union |
Tube to Tube |
Polypropylene |
1/2 |
na |
Push-to-Connect |
3/8 |
| PP8UC8 |
Union |
Tube to Tube |
Polypropylene |
1/2 |
na |
Push-to-Connect |
1/2 |
| PPB4EU4-MG |
90° Elbow |
Tube to Tube |
Black Polypropylene |
1/4 |
na |
Push-to-Connect |
1/4 |
| PPB4FC2-MG |
Connector |
Tube to Female Pipe |
Black Polypropylene |
1/4 |
na |
Push-to-Connect |
na |
| PPB4FC4-MG |
Connector |
Tube to Female Pipe |
Black Polypropylene |
1/4 |
na |
Push-to-Connect |
na |
| PPB4MC2-MG |
Connector |
Tube to Pipe |
Black Polypropylene |
1/4 |
na |
Push-to-Connect |
na |
| PPB4MC4-MG |
Connector |
Tube to Pipe |
Black Polypropylene |
1/4 |
na |
Push-to-Connect |
na |
| PPB4MC6-MG |
Connector |
Tube to Pipe |
Black Polypropylene |
1/4 |
na |
Push-to-Connect |
na |
| PPB4ME2-MG |
90° Elbow |
Tube to Pipe |
Black Polypropylene |
1/4 |
na |
Push-to-Connect |
na |
| PPB4ME4-MG |
90° Elbow |
Tube to Pipe |
Black Polypropylene |
1/4 |
na |
Push-to-Connect |
na |
| PPB4ME6-MG |
90° Elbow |
Tube to Pipe |
Black Polypropylene |
1/4 |
na |
Push-to-Connect |
na |
| PPB4TEU4-MG |
90° Elbow |
Tube to Tube Stem |
Black Polypropylene |
1/4 |
na |
Push-to-Connect |
na |
| PPB4TMC2 |
Connector |
Tube Stem to Pipe |
Black Polypropylene |
na |
1/4 |
Tube Stem |
na |
| PPB4TMC4 |
Connector |
Tube Stem to Pipe |
Black Polypropylene |
na |
1/4 |
Tube Stem |
na |
| PPB6EU6-MG |
90° Elbow |
Tube to Tube |
Black Polypropylene |
3/8 |
na |
Push-to-Connect |
3/8 |
| PPB6FC4-MG |
Connector |
Tube to Female Pipe |
Black Polypropylene |
3/8 |
na |
Push-to-Connect |
na |
| PPB6FC6-MG |
Connector |
Tube to Female Pipe |
Black Polypropylene |
3/8 |
na |
Push-to-Connect |
na |
| PPB6MC4-MG |
Connector |
Tube to Pipe |
Black Polypropylene |
3/8 |
na |
Push-to-Connect |
na |
| PPB6MC6-MG |
Connector |
Tube to Pipe |
Black Polypropylene |
3/8 |
na |
Push-to-Connect |
na |
| PPB6ME6-MG |
90° Elbow |
Tube to Pipe |
Black Polypropylene |
3/8 |
na |
Push-to-Connect |
na |
| PPB6TEU6 |
90° Elbow |
Tube to Tube Stem |
Black Polypropylene |
na |
3/8 |
Tube Stem |
na |
| PPB6TMC4 |
Connector |
Tube Stem to Pipe |
Black Polypropylene |
na |
3/8 |
Tube Stem |
na |
| PPB6TMC6 |
Connector |
Tube Stem to Pipe |
Black Polypropylene |
na |
3/8 |
Tube Stem |
na |
| PPB8EU6-MG |
90° Elbow |
Tube to Tube |
Black Polypropylene |
1/2 |
na |
Push-to-Connect |
3/8 |
| PPB8EU8-MG |
90° Elbow |
Tube to Tube |
Black Polypropylene |
1/2 |
na |
Push-to-Connect |
1/2 |
| PPB8MC6-MG |
Connector |
Tube to Pipe |
Black Polypropylene |
1/2 |
na |
Push-to-Connect |
na |
| PPB8MC8-MG |
Connector |
Tube to Pipe |
Black Polypropylene |
1/2 |
na |
Push-to-Connect |
na |
| PPB8TEU8-MG |
90° Elbow |
Tube to Tube Stem |
Black Polypropylene |
1/2 |
na |
Push-to-Connect |
na |
Part Shape Style Body Material Connection 1 Tube O.D. (inch) Connection 1 Tube Stem O.D. (inch) Connection 1 Style Connection 2 Tube O.D. (inch) Connection 2 Thread Size (inch) Connection 2 Tube Stem O.D. (inch) Connection 2 Tube I.D. (inch) Connection 2 Style
A4BU4-MG Bulkhead Tube to Tube Acetal 1/4 na Push-to-Connect 1/4 na na na Push-to-Connect
A4CAP-MG Cap Tube Acetal 1/4 na Push-to-Connect na na na na na
A4CU4-MG Cross Tube to Tube Acetal 1/4 na Push-to-Connect 1/4 na na na Push-to-Connect
A4EU4-MG 90° Elbow Tube to Tube Acetal 1/4 na Push-to-Connect 1/4 na na na Push-to-Connect
A4FA7-MG Faucet Adapter Tube to Female Pipe Acetal 1/4 na Push-to-Connect na 7/16-24 na na Straight Thread
A4FC2-MG Connector Tube to Female Pipe Acetal 1/4 na Push-to-Connect na 1/8 na na Female Pipe
A4FC4-MG Connector Tube to Female Pipe Acetal 1/4 na Push-to-Connect na 1/4 na na Female Pipe
A4FE4-MG 90° Elbow Tube to Female Pipe Acetal 1/4 na Push-to-Connect na 1/4 na na Female Pipe
A4FF4-MG Connector Tube to Female Flare Acetal 1/4 na Push-to-Connect na 1/4 na na Female Flare
A4MC2-MG Connector Tube to Pipe Acetal 1/4 na Push-to-Connect na 1/8 na na Male Pipe
A4MC4-MG Connector Tube to Pipe Acetal 1/4 na Push-to-Connect na 1/4 na na Male Pipe
A4MC6-MG Connector Tube to Pipe Acetal 1/4 na Push-to-Connect na 3/8 na na Male Pipe
A4ME2-MG 90° Elbow Tube to Pipe Acetal 1/4 na Push-to-Connect na 1/8 na na Male Pipe
A4ME4-MG 90° Elbow Tube to Pipe Acetal 1/4 na Push-to-Connect na 1/4 na na Male Pipe
A4ME6-MG 90° Elbow Tube to Pipe Acetal 1/4 na Push-to-Connect na 3/8 na na Male Pipe
A4MES2-MG 90° Swivel Elbow Tube to Pipe Acetal 1/4 na Push-to-Connect na 1/8 na na Male Pipe
A4MES4-MG 90° Swivel Elbow Tube to Pipe Acetal 1/4 na Push-to-Connect na 1/4 na na Male Pipe
A4MES6-MG 90° Swivel Elbow Tube to Pipe Acetal 1/4 na Push-to-Connect na 3/8 na na Male Pipe
A4MRS2-MG Run Tee Tube to Pipe Acetal 1/4 na Push-to-Connect na 1/8 na na Male Pipe
A4MRS4-MG Run Tee Tube to Pipe Acetal 1/4 na Push-to-Connect na 1/4 na na Male Pipe
A4MTS2-MG Branch Tee Tube to Pipe Acetal 1/4 na Push-to-Connect na 1/8 na na Male Pipe
A4MTS4-MG Branch Tee Tube to Pipe Acetal 1/4 na Push-to-Connect na 1/4 na na Male Pipe
A4RD5-MG Tube Reducer Tube to Tube Stem Acetal 1/4 na Push-to-Connect na na 5/16 na Tube Stem
A4RD6-MG Tube Reducer Tube to Tube Stem Acetal 1/4 na Push-to-Connect na na 3/8 na Tube Stem
A4TCB4 Connector Tube to Barb Acetal na 1/4 Tube Stem na na na 1/4 Barb
A4TEB4 90° Elbow Tube to Barb Acetal na 1/4 Tube Stem na na na 1/4 Barb
A4TEU4-MG 90° Elbow Tube to Tube Stem Acetal 1/4 na Push-to-Connect na na 1/4 na Tube Stem
A4TEU6-MG 90° Elbow Tube to Tube Stem Acetal 1/4 na Push-to-Connect na na 3/8 na Tube Stem
A4TMC2 Connector Tube Stem to Pipe Acetal 1/4 na Push-to-Connect na 1/8 na na Male Pipe
A4TMC4 Connector Tube Stem to Pipe Acetal 1/4 na Push-to-Connect na 1/4 na na Male Pipe
A4TPL Plug Tube Stem Acetal 1/4 na Push-to-Connect na na na na na
A4TU4-MG Tee Tube to Tube Acetal 1/4 na Push-to-Connect 1/4 na na na Push-to-Connect
A4UC4-MG Union Tube to Tube Acetal 1/4 na Push-to-Connect 1/4 na na na Push-to-Connect
A5BU5-MG Bulkhead Tube to Tube Acetal 5/16 na Push-to-Connect 5/16 na na na Push-to-Connect
A5EU4-MG 90° Elbow Tube to Tube Acetal 5/16 na Push-to-Connect 1/4 na na na Push-to-Connect
A5EU5-MG 90° Elbow Tube to Tube Acetal 5/16 na Push-to-Connect 5/16 na na na Push-to-Connect
A5FA7-MG Faucet Adapter Tube to Female Pipe Acetal 5/16 na Push-to-Connect na 7/16-24 na na Straight Thread
A5FC4-MG Connector Tube to Female Pipe Acetal 5/16 na Push-to-Connect na 1/4 na na Female Pipe
A5FC6-MG Connector Tube to Female Pipe Acetal 5/16 na Push-to-Connect na 3/8 na na Female Pipe
A5MC2-MG Connector Tube to Pipe Acetal 5/16 na Push-to-Connect na 1/8 na na Male Pipe
A5MC4-MG Connector Tube to Pipe Acetal 5/16 na Push-to-Connect na 1/4 na na Male Pipe
A5MC6-MG Connector Tube to Pipe Acetal 5/16 na Push-to-Connect na 3/8 na na Male Pipe
A5ME4-MG 90° Elbow Tube to Pipe Acetal 5/16 na Push-to-Connect na 1/4 na na Male Pipe
A5ME6-MG 90° Elbow Tube to Pipe Acetal 5/16 na Push-to-Connect na 3/8 na na Male Pipe
A5MES2-MG 90° Swivel Elbow Tube to Pipe Acetal 5/16 na Push-to-Connect na 1/8 na na Male Pipe
A5MES4-MG 90° Swivel Elbow Tube to Pipe Acetal 5/16 na Push-to-Connect na 1/4 na na Male Pipe
A5MES6-MG 90° Swivel Elbow Tube to Pipe Acetal 5/16 na Push-to-Connect na 3/8 na na Male Pipe
A5MRS2-MG Run Tee Tube to Pipe Acetal 5/16 na Push-to-Connect na 1/8 na na Male Pipe
A5MRS4-MG Run Tee Tube to Pipe Acetal 5/16 na Push-to-Connect na 1/4 na na Male Pipe
A5MRS6-MG Run Tee Tube to Pipe Acetal 5/16 na Push-to-Connect na 3/8 na na Male Pipe
A5MTS2-MG Branch Tee Tube to Pipe Acetal 5/16 na Push-to-Connect na 1/8 na na Male Pipe
A5MTS4-MG Branch Tee Tube to Pipe Acetal 5/16 na Push-to-Connect na 1/4 na na Male Pipe
A5MTS6-MG Branch Tee Tube to Pipe Acetal 5/16 na Push-to-Connect na 3/8 na na Male Pipe
A5RD6-MG Tube Reducer Tube to Tube Stem Acetal 5/16 na Push-to-Connect na na 3/8 na Tube Stem
A5RD8-MG Tube Reducer Tube to Tube Stem Acetal 5/16 na Push-to-Connect na na 1/2 na Tube Stem
A5TEU5-MG 90° Elbow Tube to Tube Stem Acetal 5/16 na Push-to-Connect na na 5/16 na Tube Stem
A5TMC2 Connector Tube Stem to Pipe Acetal 5/16 na Push-to-Connect na 1/8 na na Male Pipe
A5TMC4 Connector Tube Stem to Pipe Acetal 5/16 na Push-to-Connect na 1/4 na na Male Pipe
A5TMC6 Connector Tube Stem to Pipe Acetal 5/16 na Push-to-Connect na 3/8 na na Male Pipe
A5TU5-MG Tee Tube to Tube Acetal 5/16 na Push-to-Connect 5/16 na na na Push-to-Connect
A5UC4-MG Union Tube to Tube Acetal 5/16 na Push-to-Connect 1/4 na na na Push-to-Connect
A5UC5-MG Union Tube to Tube Acetal 5/16 na Push-to-Connect 5/16 na na na Push-to-Connect
A5WY5-MG Y Union Tube to Tube Acetal 5/16 na Push-to-Connect 5/16 na na na Push-to-Connect
A6BU4-MG Bulkhead Tube to Tube Acetal 3/8 na Push-to-Connect 1/4 na na na Push-to-Connect
A6BU6-MG Bulkhead Tube to Tube Acetal 3/8 na Push-to-Connect 3/8 na na na Push-to-Connect
A6CAP-MG Cap Tube Acetal 3/8 na Push-to-Connect na na na na na
A6CU6-MG Cross Tube to Tube Acetal 3/8 na Push-to-Connect 3/8 na na na Push-to-Connect
A6EU4-MG 90° Elbow Tube to Tube Acetal 3/8 na Push-to-Connect 1/4 na na na Push-to-Connect
A6EU5-MG 90° Elbow Tube to Tube Acetal 3/8 na Push-to-Connect 5/16 na na na Push-to-Connect
A6EU6-MG 90° Elbow Tube to Tube Acetal 3/8 na Push-to-Connect 3/8 na na na Push-to-Connect
A6FA7-MG Faucet Adapter Tube to Female Pipe Acetal 3/8 na Push-to-Connect na 7/16-24 na na Straight Thread
A6FC4-MG Connector Tube to Female Pipe Acetal 3/8 na Push-to-Connect na 1/4 na na Female Pipe
A6FC6-MG Connector Tube to Female Pipe Acetal 3/8 na Push-to-Connect na 3/8 na na Female Pipe
A6FC8-MG Connector Tube to Female Pipe Acetal 3/8 na Push-to-Connect na 1/2 na na Female Pipe
A6FE4-MG 90° Elbow Tube to Female Pipe Acetal 3/8 na Push-to-Connect na 1/4 na na Female Pipe
A6FE6-MG 90° Elbow Tube to Female Pipe Acetal 3/8 na Push-to-Connect na 3/8 na na Female Pipe
A6FF4-MG Connector Tube to Female Flare Acetal 3/8 na Push-to-Connect na 1/4 na na Female Flare
A6FF6-MG Connector Tube to Female Flare Acetal 3/8 na Push-to-Connect na 3/8 na na Female Flare
A6MC2-MG Connector Tube to Pipe Acetal 3/8 na Push-to-Connect na 1/8 na na Male Pipe
A6MC4-MG Connector Tube to Pipe Acetal 3/8 na Push-to-Connect na 1/4 na na Male Pipe
A6MC6-MG Connector Tube to Pipe Acetal 3/8 na Push-to-Connect na 3/8 na na Male Pipe
A6MC8-MG Connector Tube to Pipe Acetal 3/8 na Push-to-Connect na 1/2 na na Male Pipe
A6ME4-MG 90° Elbow Tube to Pipe Acetal 3/8 na Push-to-Connect na 1/4 na na Male Pipe
A6ME6-MG 90° Elbow Tube to Pipe Acetal 3/8 na Push-to-Connect na 3/8 na na Male Pipe
A6MES2-MG 90° Swivel Elbow Tube to Pipe Acetal 3/8 na Push-to-Connect na 1/8 na na Male Pipe
A6MES4-MG 90° Swivel Elbow Tube to Pipe Acetal 3/8 na Push-to-Connect na 1/4 na na Male Pipe
A6MES6-MG 90° Swivel Elbow Tube to Pipe Acetal 3/8 na Push-to-Connect na 3/8 na na Male Pipe
A6MRS4-MG Run Tee Tube to Pipe Acetal 3/8 na Push-to-Connect na 1/4 na na Male Pipe
A6MRS6-MG Run Tee Tube to Pipe Acetal 3/8 na Push-to-Connect na 3/8 na na Male Pipe
A6MTS2-MG Branch Tee Tube to Pipe Acetal 3/8 na Push-to-Connect na 1/8 na na Male Pipe
A6MTS4-MG Branch Tee Tube to Pipe Acetal 3/8 na Push-to-Connect na 1/4 na na Male Pipe
A6MTS6-MG Branch Tee Tube to Pipe Acetal 3/8 na Push-to-Connect na 3/8 na na Male Pipe
A6RD8-MG Tube Reducer Tube to Tube Stem Acetal 3/8 na Push-to-Connect na na 1/2 na Tube Stem
A6ST9-MG Connector Tube to Straight Thread Acetal 3/8 na Push-to-Connect na 9/16-18 na na Straight Thread
A6TCB4 Connector Tube to Barb Acetal na 3/8 Tube Stem na na na 1/4 Barb
A6TCB6 Connector Tube to Barb Acetal na 3/8 Tube Stem na na na 3/8 Barb
A6TEB4 90° Elbow Tube to Barb Acetal na 3/8 Tube Stem na na na 1/4 Barb
A6TEB6 90° Elbow Tube to Barb Acetal na 3/8 Tube Stem na na na 3/8 Barb
A6TEU4-MG 90° Elbow Tube to Tube Stem Acetal 3/8 na Push-to-Connect na na 1/4 na Tube Stem
A6TEU6-MG 90° Elbow Tube to Tube Stem Acetal 3/8 na Push-to-Connect na na 3/8 na Tube Stem
A6TMC4 Connector Tube Stem to Pipe Acetal 3/8 na Push-to-Connect na 1/4 na na Male Pipe
A6TMC6 Connector Tube Stem to Pipe Acetal 3/8 na Push-to-Connect na 3/8 na na Male Pipe
A6TMC8 Connector Tube Stem to Pipe Acetal 3/8 na Push-to-Connect na 1/2 na na Male Pipe
A6TPL Plug Tube Stem Acetal 3/8 na Push-to-Connect na na na na na
A6TU4-MG Tee Tube to Tube Acetal 3/8 na Push-to-Connect 1/4 na na na Push-to-Connect
A6TU6-MG Tee Tube to Tube Acetal 3/8 na Push-to-Connect 3/8 na na na Push-to-Connect
A6UC4-MG Union Tube to Tube Acetal 3/8 na Push-to-Connect 1/4 na na na Push-to-Connect
A6UC5-MG Union Tube to Tube Acetal 3/8 na Push-to-Connect 5/16 na na na Push-to-Connect
A6UC6-MG Union Tube to Tube Acetal 3/8 na Push-to-Connect 3/8 na na na Push-to-Connect
A6WY4-MG Y Union Tube to Tube Acetal 3/8 na Push-to-Connect 1/4 na na na Push-to-Connect
A6WY5-MG Y Union Tube to Tube Acetal 3/8 na Push-to-Connect 5/16 na na na Push-to-Connect
A6WY6-MG Y Union Tube to Tube Acetal 3/8 na Push-to-Connect 3/8 na na na Push-to-Connect
A8BU8-MG Bulkhead Tube to Tube Acetal 1/2 na Push-to-Connect 1/2 na na na Push-to-Connect
A8EU6-MG 90° Elbow Tube to Tube Acetal 1/2 na Push-to-Connect 3/8 na na na Push-to-Connect
A8EU8-MG 90° Elbow Tube to Tube Acetal 1/2 na Push-to-Connect 1/2 na na na Push-to-Connect
A8FC6-MG Connector Tube to Female Pipe Acetal 1/2 na Push-to-Connect na 3/8 na na Female Pipe
A8FC8-MG Connector Tube to Female Pipe Acetal 1/2 na Push-to-Connect na 1/2 na na Female Pipe
A8MC6-MG Connector Tube to Pipe Acetal 1/2 na Push-to-Connect na 3/8 na na Male Pipe
A8MC8-MG Connector Tube to Pipe Acetal 1/2 na Push-to-Connect na 1/2 na na Male Pipe
A8MES4-MG 90° Swivel Elbow Tube to Pipe Acetal 1/2 na Push-to-Connect na 1/4 na na Male Pipe
A8MES6-MG 90° Swivel Elbow Tube to Pipe Acetal 1/2 na Push-to-Connect na 3/8 na na Male Pipe
A8MES8-MG 90° Swivel Elbow Tube to Pipe Acetal 1/2 na Push-to-Connect na 1/2 na na Male Pipe
A8MRS4-MG Run Tee Tube to Pipe Acetal 1/2 na Push-to-Connect na 1/4 na na Male Pipe
A8MRS6-MG Run Tee Tube to Pipe Acetal 1/2 na Push-to-Connect na 3/8 na na Male Pipe
A8MRS8-MG Run Tee Tube to Pipe Acetal 1/2 na Push-to-Connect na 1/2 na na Male Pipe
A8MTS4-MG Branch Tee Tube to Pipe Acetal 1/2 na Push-to-Connect na 1/4 na na Male Pipe
A8MTS6-MG Branch Tee Tube to Pipe Acetal 1/2 na Push-to-Connect na 3/8 na na Male Pipe
A8MTS8-MG Branch Tee Tube to Pipe Acetal 1/2 na Push-to-Connect na 1/2 na na Male Pipe
A8TCB6 Connector Tube to Barb Acetal na 1/2 Tube Stem na na na 3/8 Barb
A8TCB8 Connector Tube to Barb Acetal na 1/2 Tube Stem na na na 1/2 Barb
A8TEB8 90° Elbow Tube to Barb Acetal na 1/2 Tube Stem na na na 1/2 Barb
A8TEU8-MG 90° Elbow Tube to Tube Stem Acetal 1/2 na Push-to-Connect na na 1/2 na Tube Stem
A8TMC4 Connector Tube Stem to Pipe Acetal 1/2 na Push-to-Connect na 1/4 na na Male Pipe
A8TMC6 Connector Tube Stem to Pipe Acetal 1/2 na Push-to-Connect na 3/8 na na Male Pipe
A8TMC8 Connector Tube Stem to Pipe Acetal 1/2 na Push-to-Connect na 1/2 na na Male Pipe
A8TPL Plug Tube Stem Acetal 1/2 na Push-to-Connect na na na na na
A8TU8-MG Tee Tube to Tube Acetal 1/2 na Push-to-Connect 1/2 na na na Push-to-Connect
A8UC5-MG Union Tube to Tube Acetal 1/2 na Push-to-Connect 5/16 na na na Push-to-Connect
A8UC6-MG Union Tube to Tube Acetal 1/2 na Push-to-Connect 3/8 na na na Push-to-Connect
A8UC8-MG Union Tube to Tube Acetal 1/2 na Push-to-Connect 1/2 na na na Push-to-Connect
AW6TAF7-MG Faucet Adapter Tube Stem to Pipe Acetal na 3/8 Tube Stem na 7/16-24 na na Straight Thread
AW6TAF8-MG Faucet Adapter Tube Stem to Pipe Acetal na 3/8 Tube Stem na 1/2-14 na na Straight Thread
AW6TAF9-MG Faucet Adapter Tube Stem to Pipe Acetal na 3/8 Tube Stem na 9/16-24 na na Straight Thread
AW6TFA7-MG Faucet Adapter Tube Stem to Female Pipe Acetal na 3/8 Tube Stem na 7/16-24 na na Straight Thread
AW6TFA8-MG Faucet Adapter Tube Stem to Female Pipe Acetal na 3/8 Tube Stem na 1/2-14 na na Straight Thread
AW6TFA9-MG Faucet Adapter Tube Stem to Female Pipe Acetal na 3/8 Tube Stem na 9/16-24 na na Straight Thread
F4BU4 Bulkhead Tube to Tube Kynar? 1/4 na Push-to-Connect 1/4 na na na Push-to-Connect
F4CAP Cap Tube Kynar? 1/4 na Push-to-Connect na na na na na
F4EU4 90° Elbow Tube to Tube Kynar? 1/4 na Push-to-Connect 1/4 na na na Push-to-Connect
F4FA7 Faucet Adapter Tube to Female Pipe Kynar? 1/4 na Push-to-Connect na 7/16-24 na na Straight Thread
F4FC2 Connector Tube to Female Pipe Kynar? 1/4 na Push-to-Connect na 1/8 na na Female Pipe
F4FC4 Connector Tube to Female Pipe Kynar? 1/4 na Push-to-Connect na 1/4 na na Female Pipe
F4FF4 Connector Tube to Female Flare Kynar? 1/4 na Push-to-Connect na 1/4 na na Female Flare
F4MC2 Connector Tube to Pipe Kynar? 1/4 na Push-to-Connect na 1/8 na na Male Pipe
F4MC4 Connector Tube to Pipe Kynar? 1/4 na Push-to-Connect na 1/4 na na Male Pipe
F4MC6 Connector Tube to Pipe Kynar? 1/4 na Push-to-Connect na 3/8 na na Male Pipe
F4ME2 90° Elbow Tube to Pipe Kynar? 1/4 na Push-to-Connect na 1/8 na na Male Pipe
F4ME4 90° Elbow Tube to Pipe Kynar? 1/4 na Push-to-Connect na 1/4 na na Male Pipe
F4ME6 90° Elbow Tube to Pipe Kynar? 1/4 na Push-to-Connect na 3/8 na na Male Pipe
F4MES2 90° Swivel Elbow Tube to Pipe Kynar? 1/4 na Push-to-Connect na 1/8 na na Male Pipe
F4MES4 90° Swivel Elbow Tube to Pipe Kynar? 1/4 na Push-to-Connect na 1/4 na na Male Pipe
F4MES6 90° Swivel Elbow Tube to Pipe Kynar? 1/4 na Push-to-Connect na 3/8 na na Male Pipe
F4MRS2 Run Tee Tube to Pipe Kynar? 1/4 na Push-to-Connect na 1/8 na na Male Pipe
F4MRS4 Run Tee Tube to Pipe Kynar? 1/4 na Push-to-Connect na 1/4 na na Male Pipe
F4MTS2 Branch Tee Tube to Pipe Kynar? 1/4 na Push-to-Connect na 1/8 na na Male Pipe
F4MTS4 Branch Tee Tube to Pipe Kynar? 1/4 na Push-to-Connect na 1/4 na na Male Pipe
F4TCB4 Connector Tube to Barb Kynar? na 1/4 Tube Stem na na na 1/4 Barb
F4TEB4 90° Elbow Tube to Barb Kynar? na 1/4 Tube Stem na na na 1/4 Barb
F4TEU4 90° Elbow Tube to Tube Stem Kynar? 1/4 na Push-to-Connect na na 1/4 na Barb
F4TEU6 90° Elbow Tube to Tube Stem Kynar? 1/4 na Push-to-Connect na na 3/8 na Tube Stem
F4TMC2 Connector Tube Stem to Pipe Kynar? na 1/4 Tube Stem na 1/8 na na Male Pipe
F4TMC4 Connector Tube Stem to Pipe Kynar? na 1/4 Tube Stem na 1/4 na na Male Pipe
F4TPL Plug Tube Stem Kynar? na 1/4 Tube Stem na na na na na
F4TU4 Tee Tube to Tube Kynar? 1/4 na Push-to-Connect 1/4 na na na Push-to-Connect
F4UC4 Union Tube to Tube Kynar? 1/4 na Push-to-Connect 1/4 na na na Push-to-Connect
F6BU6 Bulkhead Tube to Tube Kynar? 3/8 na Push-to-Connect 3/8 na na na Push-to-Connect
F6EU4 90° Elbow Tube to Tube Kynar? 3/8 na Push-to-Connect 1/4 na na na Push-to-Connect
F6EU6 90° Elbow Tube to Tube Kynar? 3/8 na Push-to-Connect 3/8 na na na Push-to-Connect
F6FA7 Faucet Adapter Tube to Female Pipe Kynar? 3/8 na Push-to-Connect na 7/16-24 na na Straight Thread
F6FC4 Connector Tube to Female Pipe Kynar? 3/8 na Push-to-Connect na 1/4 na na Female Pipe
F6FC6 Connector Tube to Female Pipe Kynar? 3/8 na Push-to-Connect na 3/8 na na Female Pipe
F6FF4 Connector Tube to Female Flare Kynar? 3/8 na Push-to-Connect na 1/4 na na Female Flare
F6FF6 Connector Tube to Female Flare Kynar? 3/8 na Push-to-Connect na 3/8 na na Female Flare
F6MC2 Connector Tube to Pipe Kynar? 3/8 na Push-to-Connect na 1/8 na na Male Pipe
F6MC4 Connector Tube to Pipe Kynar? 3/8 na Push-to-Connect na 1/4 na na Male Pipe
F6MC6 Connector Tube to Pipe Kynar? 3/8 na Push-to-Connect na 3/8 na na Male Pipe
F6MC8 Connector Tube to Pipe Kynar? 3/8 na Push-to-Connect na 1/2 na na Male Pipe
F6ME4 90° Elbow Tube to Pipe Kynar? 3/8 na Push-to-Connect na 1/4 na na Male Pipe
F6ME6 90° Elbow Tube to Pipe Kynar? 3/8 na Push-to-Connect na 3/8 na na Male Pipe
F6MES2 90° Swivel Elbow Tube to Pipe Kynar? 3/8 na Push-to-Connect na 1/8 na na Male Pipe
F6MES4 90° Swivel Elbow Tube to Pipe Kynar? 3/8 na Push-to-Connect na 1/4 na na Male Pipe
F6MES6 90° Swivel Elbow Tube to Pipe Kynar? 3/8 na Push-to-Connect na 3/8 na na Male Pipe
F6MRS4 Run Tee Tube to Pipe Kynar? 3/8 na Push-to-Connect na 1/4 na na Male Pipe
F6MRS6 Run Tee Tube to Pipe Kynar? 3/8 na Push-to-Connect na 3/8 na na Male Pipe
F6MTS2 Branch Tee Tube to Pipe Kynar? 3/8 na Push-to-Connect na 1/8 na na Male Pipe
F6MTS4 Branch Tee Tube to Pipe Kynar? 3/8 na Push-to-Connect na 1/4 na na Male Pipe
F6MTS6 Branch Tee Tube to Pipe Kynar? 3/8 na Push-to-Connect na 3/8 na na Male Pipe
F6ST9 Connector Tube to Pipe Kynar? 3/8 na Push-to-Connect na 9/16-18 na na Straight Thread
F6TCB4 Connector Tube to Barb Kynar? na 3/8 Tube Stem na na na 1/4 Barb
F6TCB6 Connector Tube to Barb Kynar? na 3/8 Tube Stem na na na 3/8 Barb
F6TEB6 90° Elbow Tube to Barb Kynar? na 3/8 Tube Stem na na na 3/8 Barb
F6TEU4 90° Elbow Tube to Tube Stem Kynar? 3/8 na Push-to-Connect na na 1/4 na Tube Stem
F6TEU6 90° Elbow Tube to Tube Stem Kynar? 3/8 na Push-to-Connect na na 3/8 na Tube Stem
F6TMC4 Connector Tube Stem to Pipe Kynar? na 3/8 Tube Stem na 1/4 na na Male Pipe
F6TMC6 Connector Tube Stem to Pipe Kynar? na 3/8 Tube Stem na 3/8 na na Male Pipe
F6TPL Plug Tube Stem Kynar? na 3/8 Tube Stem na na na na na
F6TU4 Tee Tube to Tube Kynar? 3/8 na Push-to-Connect 1/4 na na na Push-to-Connect
F6TU6 Tee Tube to Tube Kynar? 3/8 na Push-to-Connect 3/8 na na na Push-to-Connect
F6UC4 Union Tube to Tube Kynar? 3/8 na Push-to-Connect 1/4 na na na Push-to-Connect
F6UC6 Union Tube to Tube Kynar? 3/8 na Push-to-Connect 3/8 na na na Push-to-Connect
PP4BU4 Bulkhead Tube to Tube White Polypropylene 1/4 na Push-to-Connect 1/4 na na na Push-to-Connect
PP4CAP Cap Tube White Polypropylene 1/4 na Push-to-Connect na na na na na
PP4EU4 90° Elbow Tube to Tube White Polypropylene 1/4 na Push-to-Connect 1/4 na na na Push-to-Connect
PP4FA7 Faucet Adapter Tube to Female Pipe White Polypropylene 1/4 na Push-to-Connect na 7/16-24 na na Straight Thread
PP4FC2 Connector Tube to Female Pipe White Polypropylene 1/4 na Push-to-Connect na 1/8 na na Female Pipe
PP4FC4 Connector Tube to Female Pipe White Polypropylene 1/4 na Push-to-Connect na 1/4 na na Female Pipe
PP4FF4 Connector Tube to Female Flare White Polypropylene 1/4 na Push-to-Connect na 1/4 na na Female Flare
PP4MC2 Connector Tube to Pipe White Polypropylene 1/4 na Push-to-Connect na 1/8 na na Male Pipe
PP4MC4 Connector Tube to Pipe White Polypropylene 1/4 na Push-to-Connect na 1/4 na na Male Pipe
PP4MC6 Connector Tube to Pipe White Polypropylene 1/4 na Push-to-Connect na 3/8 na na Male Pipe
PP4ME2 90° Elbow Tube to Pipe White Polypropylene 1/4 na Push-to-Connect na 1/8 na na Male Pipe
PP4ME4 90° Elbow Tube to Pipe White Polypropylene 1/4 na Push-to-Connect na 1/4 na na Male Pipe
PP4ME6 90° Elbow Tube to Pipe White Polypropylene 1/4 na Push-to-Connect na 3/8 na na Male Pipe
PP4MES2 90° Swivel Elbow Tube to Pipe White Polypropylene 1/4 na Push-to-Connect na 1/8 na na Male Pipe
PP4MES4 90° Swivel Elbow Tube to Pipe White Polypropylene 1/4 na Push-to-Connect na 1/4 na na Male Pipe
PP4MES6 90° Swivel Elbow Tube to Pipe White Polypropylene 1/4 na Push-to-Connect na 3/8 na na Male Pipe
PP4MRS2 Run Tee Tube to Pipe White Polypropylene 1/4 na Push-to-Connect na 1/8 na na Male Pipe
PP4MRS4 Run Tee Tube to Pipe White Polypropylene 1/4 na Push-to-Connect na 1/4 na na Male Pipe
PP4MTS2 Branch Tee Tube to Pipe White Polypropylene 1/4 na Push-to-Connect na 1/8 na na Male Pipe
PP4MTS4 Branch Tee Tube to Pipe White Polypropylene 1/4 na Push-to-Connect na 1/4 na na Male Pipe
PP4RD5 Tube Reducer Tube to Tube Stem White Polypropylene 1/4 na Push-to-Connect na na 5/16 na Tube Stem
PP4RD6 Tube Reducer Tube to Tube Stem White Polypropylene 1/4 na Push-to-Connect na na 3/8 na Tube Stem
PP4TCB4 Connector Tube to Barb White Polypropylene na 1/4 Tube Stem na na na 1/4 Barb
PP4TEB4 90° Elbow Tube to Barb White Polypropylene na 1/4 Tube Stem na na na 1/4 Barb
PP4TEU4 90° Elbow Tube to Tube Stem White Polypropylene 1/4 na Push-to-Connect na na 1/4 na Tube Stem
PP4TMC2 Connector Tube Stem to Pipe White Polypropylene na 1/4 Tube Stem na 1/8 na na Male Pipe
PP4TMC4 Connector Tube Stem to Pipe White Polypropylene na 1/4 Tube Stem na 1/4 na na Male Pipe
PP4TPL Plug Tube Stem White Polypropylene na 1/4 Tube Stem na na na na na
PP4TU4 Tee Tube to Tube White Polypropylene 1/4 na Push-to-Connect 1/4 na na na Push-to-Connect
PP4UC4 Union Tube to Tube White Polypropylene 1/4 na Push-to-Connect 1/4 na na na Push-to-Connect
PP6BU4 Bulkhead Tube to Tube White Polypropylene 3/8 na Push-to-Connect 1/4 na na na Push-to-Connect
PP6BU6 Bulkhead Tube to Tube White Polypropylene 3/8 na Push-to-Connect 3/8 na na na Push-to-Connect
PP6CAP Cap Tube White Polypropylene 3/8 na Push-to-Connect na na na na na
PP6EU4 90° Elbow Tube to Tube White Polypropylene 3/8 na Push-to-Connect 1/4 na na na Push-to-Connect
PP6EU4-MG 90° elbow metal gripper Polypropylene 3/8 3/8 Push-to-Connect 1/4 na 1/4 na Push-to-Connect
PP6EU6 90° Elbow Tube to Tube White Polypropylene 3/8 na Push-to-Connect 3/8 na na na Push-to-Connect
PP6FA7 Faucet Adapter Tube to Female Pipe White Polypropylene 3/8 na Push-to-Connect na 7/16-24 na na Straight Thread
PP6FC4 Connector Tube to Female Pipe White Polypropylene 3/8 na Push-to-Connect na 1/4 na na Female Pipe
PP6FC6 Connector Tube to Female Pipe White Polypropylene 3/8 na Push-to-Connect na 3/8 na na Female Pipe
PP6FF6 Connector Tube to Female Flare White Polypropylene 3/8 na Push-to-Connect na 3/8 na na Female Pipe
PP6MC4 Connector Tube to Pipe White Polypropylene 3/8 na Push-to-Connect na 1/4 na na Male Pipe
PP6MC6 Connector Tube to Pipe White Polypropylene 3/8 na Push-to-Connect na 3/8 na na Male Pipe
PP6MC6-MG Male Connector metal gripper Polypropylene 3/8 3/8 Push-to-Connect 3/8 na 3/8 na Push-to-Connect
PP6ME4 90° Elbow Tube to Pipe White Polypropylene 3/8 na Push-to-Connect na 1/4 na na Male Pipe
PP6ME6 90° Elbow Tube to Pipe White Polypropylene 3/8 na Push-to-Connect na 3/8 na na Male Pipe
PP6MES4 90° Swivel Elbow Tube to Pipe White Polypropylene 3/8 na Push-to-Connect na 1/4 na na Male Pipe
PP6MES6 90° Swivel Elbow Tube to Pipe White Polypropylene 3/8 na Push-to-Connect na 3/8 na na Male Pipe
PP6MRS4 Run Tee Tube to Pipe White Polypropylene 3/8 na Push-to-Connect na 1/4 na na Male Pipe
PP6MRS6 Run Tee Tube to Pipe White Polypropylene 3/8 na Push-to-Connect na 3/8 na na Male Pipe
PP6MTS4 Branch Tee Tube to Pipe White Polypropylene 3/8 na Push-to-Connect na 1/4 na na Male Pipe
PP6MTS6 Branch Tee Tube to Pipe White Polypropylene 3/8 na Push-to-Connect na 3/8 na na Male Pipe
PP6TCB6 Connector Tube to Barb White Polypropylene na 3/8 Tube Stem na na na 3/8 Barb
PP6TEB6 90° Elbow Tube to Barb White Polypropylene na 3/8 Tube Stem na na na 3/8 Barb
PP6TEU6 90° Elbow Tube to Tube Stem White Polypropylene na 3/8 Tube Stem na na 3/8 na Tube Stem
PP6TMC4 Connector Tube Stem to Pipe White Polypropylene na 3/8 Tube Stem na 1/4 na na Male Pipe
PP6TMC6 Connector Tube Stem to Pipe White Polypropylene na 3/8 Tube Stem na 3/8 na na Male Pipe
PP6TPL Plug Tube Stem White Polypropylene na 3/8 Tube Stem na na na na na
PP6TU4 Tee Tube to Tube White Polypropylene 3/8 na Push-to-Connect 1/4 na na na Push-to-Connect
PP6TU6 Tee Tube to Tube White Polypropylene 3/8 na Push-to-Connect 3/8 na na na Push-to-Connect
PP6UC4 Union Tube to Tube White Polypropylene 3/8 na Push-to-Connect 1/4 na na na Push-to-Connect
PP6UC6 Union Tube to Tube White Polypropylene 3/8 na Push-to-Connect 3/8 na na na Push-to-Connect
PP8EU8 90° Elbow Tube to Tube White Polypropylene 1/2 na Push-to-Connect 1/2 na na na Push-to-Connect
PP8FC6 Connector Tube to Female Pipe White Polypropylene 1/2 na Push-to-Connect na 3/8 na na Female Pipe
PP8FC8 Connector Tube to Female Pipe White Polypropylene 1/2 na Push-to-Connect na 1/2 na na Female Pipe
PP8MC6 Connector Tube to Pipe White Polypropylene 1/2 na Push-to-Connect na 3/8 na na Male Pipe
PP8MC8 Connector Tube to Pipe White Polypropylene 1/2 na Push-to-Connect na 1/2 na na Male Pipe
PP8MES6 90° Swivel Elbow Tube to Pipe White Polypropylene 1/2 na Push-to-Connect na 3/8 na na Male Pipe
PP8MES8 90° Swivel Elbow Tube to Pipe White Polypropylene 1/2 na Push-to-Connect na 1/2 na na Male Pipe
PP8MRS6 Run Tee Tube to Pipe White Polypropylene 1/2 na Push-to-Connect na 3/8 na na Male Pipe
PP8MRS8 Run Tee Tube to Pipe White Polypropylene 1/2 na Push-to-Connect na 1/2 na na Male Pipe
PP8MTS6 Branch Tee Tube to Pipe White Polypropylene 1/2 na Push-to-Connect na 3/8 na na Male Pipe
PP8MTS8 Branch Tee Tube to Pipe White Polypropylene 1/2 na Push-to-Connect na 1/2 na na Male Pipe
PP8TEU8 90° Elbow Tube to Tube Stem White Polypropylene 1/2 na Push-to-Connect na na 1/2 na Tube Stem
PP8TMC6 Connector Tube Stem to Pipe White Polypropylene na 1/2 Tube Stem na 3/8 na na Male Pipe
PP8TMC8 Connector Tube Stem to Pipe White Polypropylene na 1/2 Tube Stem na 1/2 na na Male Pipe
PP8TPL Plug Tube Stem White Polypropylene na 1/2 Tube Stem na na na na na
PP8TU8 Tee Tube to Tube White Polypropylene 1/2 na Push-to-Connect 1/2 na na na Push-to-Connect
PP8UC6 Union Tube to Tube White Polypropylene 1/2 na Push-to-Connect 3/8 na na na Push-to-Connect
PP8UC8 Union Tube to Tube White Polypropylene 1/2 na Push-to-Connect 1/2 na na na Push-to-Connect
PPB4EU4-MG 90° Elbow Tube to Tube Black Polypropylene 1/4 na Push-to-Connect 1/4 na na na Push-to-Connect
PPB4FC2-MG Connector Tube to Female Pipe Black Polypropylene 1/4 na Push-to-Connect na 1/8 na na Female Pipe
PPB4FC4-MG Connector Tube to Female Pipe Black Polypropylene 1/4 na Push-to-Connect na 1/4 na na Female Pipe
PPB4MC2-MG Connector Tube to Pipe Black Polypropylene 1/4 na Push-to-Connect na 1/8 na na Male Pipe
PPB4MC4-MG Connector Tube to Pipe Black Polypropylene 1/4 na Push-to-Connect na 1/4 na na Male Pipe
PPB4MC6-MG Connector Tube to Pipe Black Polypropylene 1/4 na Push-to-Connect na 3/8 na na Male Pipe
PPB4ME2-MG 90° Elbow Tube to Pipe Black Polypropylene 1/4 na Push-to-Connect na 1/8 na na Male Pipe
PPB4ME4-MG 90° Elbow Tube to Pipe Black Polypropylene 1/4 na Push-to-Connect na 1/4 na na Male Pipe
PPB4ME6-MG 90° Elbow Tube to Pipe Black Polypropylene 1/4 na Push-to-Connect na 3/8 na na Male Pipe
PPB4TEU4-MG 90° Elbow Tube to Tube Stem Black Polypropylene 1/4 na Push-to-Connect na na 1/4 na Tube Stem
PPB4TMC2 Connector Tube Stem to Pipe Black Polypropylene na 1/4 Tube Stem na 1/8 na na Male Pipe
PPB4TMC4 Connector Tube Stem to Pipe Black Polypropylene na 1/4 Tube Stem na 1/4 na na Male Pipe
PPB6EU6-MG 90° Elbow Tube to Tube Black Polypropylene 3/8 na Push-to-Connect 3/8 na na na Push-to-Connect
PPB6FC4-MG Connector Tube to Female Pipe Black Polypropylene 3/8 na Push-to-Connect na 1/4 na na Female Pipe
PPB6FC6-MG Connector Tube to Female Pipe Black Polypropylene 3/8 na Push-to-Connect na 3/8 na na Female Pipe
PPB6MC4-MG Connector Tube to Pipe Black Polypropylene 3/8 na Push-to-Connect na 1/4 na na Male Pipe
PPB6MC6-MG Connector Tube to Pipe Black Polypropylene 3/8 na Push-to-Connect na 3/8 na na Male Pipe
PPB6ME6-MG 90° Elbow Tube to Pipe Black Polypropylene 3/8 na Push-to-Connect na 3/8 na na Male Pipe
PPB6TEU6 90° Elbow Tube to Tube Stem Black Polypropylene na 3/8 Tube Stem na na 3/8 na Tube Stem
PPB6TMC4 Connector Tube Stem to Pipe Black Polypropylene na 3/8 Tube Stem na 1/4 na na Male Pipe
PPB6TMC6 Connector Tube Stem to Pipe Black Polypropylene na 3/8 Tube Stem na 3/8 na na Male Pipe
PPB8EU6-MG 90° Elbow Tube to Tube Black Polypropylene 1/2 na Push-to-Connect 3/8 na na na Push-to-Connect
PPB8EU8-MG 90° Elbow Tube to Tube Black Polypropylene 1/2 na Push-to-Connect 1/2 na na na Push-to-Connect
PPB8MC6-MG Connector Tube to Pipe Black Polypropylene 1/2 na Push-to-Connect na 3/8 na na Male Pipe
PPB8MC8-MG Connector Tube to Pipe Black Polypropylene 1/2 na Push-to-Connect na 1/2 na na Male Pipe
PPB8TEU8-MG 90° Elbow Tube to Tube Stem Black Polypropylene 1/2 na Push-to-Connect na na 1/2 na Tube Stem
|
fcg.cnmec@parkerdistribution.com.cn
