氣動塑料快換接頭 Pneumatic Snap Fittings
Parker Fittings接頭 - Push to Connect Fittings
快換接頭無需排空整個系統即可隔離回路。它們便于反復連接和斷開，確保絕對安全。塑料快換接頭無需排空整個系統即可隔離回路。它們便于反復連接和斷開，有效提高安全性。這些接頭的設計是為了保障在系統需要頻繁地斷開與連接操作時，保護整個系統的安全性。The snap fittings enable a circuit to be isolated without the need to vent the complete system.
They are designed to facilitate repeated connections and disconnections in total safety. The snap fittings enable a circuit to be isolated without the need to vent the complete system.
They are designed to facilitate repeated connections and disconnections in total safety.
Features/Benefits:
特征/優勢：
- 性能和安全
- 在執行工作過程中，實現系統的部分排氣
- 在維護操作過程中，節省能源和時間
- 根據需要，通過保持壓力，保護人員安全
- 可聽見的咔噠聲，表明連接成功
- 通過彩色環進行回路識別（根據要求）
市場：
- 工廠自動化
- 紡織機械
- 半導體
- 包裝
應用
- 氣動控制面板上管路多次重復的連接以及斷開
- 不需要徹底排氣，氣動系統即可實現分離
技術：
- 快速連接
- 快速接頭
- 氣動接頭
- 空氣接頭
- 功能接頭
- 氣動系統
技術參數：
- 介質：壓縮空氣
- 材料：銅鍍鎳，工程塑料，丁腈橡膠，不含硅
- 壓力：0至10bar
- 溫度：-20°C 到 +80°C
符合規范:
- DI: 2002/95/EC (RoHS)
- RG: 1907/2006 (REACH)
- DI: 97/23/EC (PED)
產品類型：
- 接頭體，帶快插式接頭
- 接頭體，BSPP外螺紋
- 插頭體，帶快插式接頭
- 插頭體，BSPP外螺紋
- Performance & Safety
- Partial venting of systems while work is carried out
- Energy and time saving during maintenance operations
- Protection of individuals by maintaining pressure if necessary
- Audible click indicates connection
- Circuit identification by coloured rings (on request)
Markets:
- Factory Automation
- Wearing Apparel
- Semiconductor
- Packaging
Application:
- Repeated Connections and Disconnections on Pneumatic Control Panels
- Pneumatic Circuits Isolation without Fully Venting
Technologies:
- Snap connectors
- Snap fitting
- Pneumatic fittings
- Air fittings
- Function fitting
- Pneumatic system
Technical Characteristics:
- Fluids: Compressed air
- Materials: nickel-plated brass, technical polymer, NBR, silicone free
- Pressure: 0 to 10 bar
- Temperature: -20°C to +80°C
Regulations:
- DI: 2002/95/EC (RoHS)
- RG: 1907/2006 (REACH)
- DI: 97/23/EC (PED)
Product Types:
- Body with Push-In Connection
- Body with Male BSPP Thread
- Straight Probe, Push-In Connection
- Straight Probe, Male BSPP Thread
技術規格：
- 連接1螺紋尺寸（公制）： G1/8
- 夾持圈： na
- 名義直徑（DN)： 5
- 連接1螺紋形式： BSPP
- 套管材料： TECHNICAL POLYMER
- 連接2管件外徑（毫米）： na
- 形狀： Snap fitting body straight male
- O 型圈材料： 橡膠
- 最大運行壓力： 10 barg
- 最低運行溫度： -20 °C
- 最高運行溫度： 70 °C
- 數量/箱： 10
- 重量： 0.022 kg
- 應用： 控制面板，機器人，半導體，包裝，氣動，過程自動化
- 介質： 壓縮空氣
- 符合規格： DI: 2002/95/EC (RoHS), RG: 1907/2006 (REACH), DI: 97/23/EC (PED)
Technical Specifications
| Maximum Operating Temperature: |
80 °C, 176 °F |
| Application: |
Compressed Air/Inert Gas, Automotive Process, Pneumatics, Semiconductors, Packaging, Manufacturing equipment |
| Minimum Operating Temperature: |
-20 °C, -4 °F |
| Maximum Operating Pressure: |
1 MPa, 10 bar, 145 psi |
| Tube Outside Diameter: |
6 to 10 mm |
| Specifications Met: |
DI: 97/23/EC (PED) - DI: 2002/95/EC (RoHs) - DI: 1907/2006 (REACH), DI: 2002/95/EC (RoHS), RG: 1907/2006 (REACH), DI: 97/23/EC (PED) |
| Connection Type: |
Push-to-Connect, Push-to-Connect/Plug-in, Push-to-Connect/Thread |
| Shape: |
Straight |
| Materials of Construction: |
Technical Polymer, Nickel Plated Brass, Rubber |
| O-Ring Material: |
NBR |
| Quantity per Box: |
10 |
| Weight: |
0,003 to 0,034 kg |
| Media: |
Compressed air |

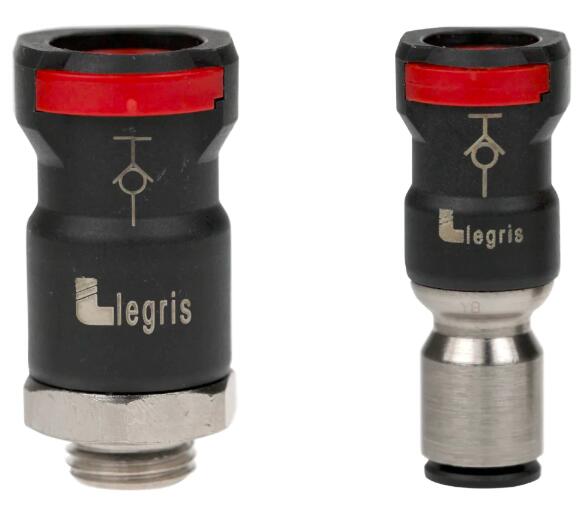

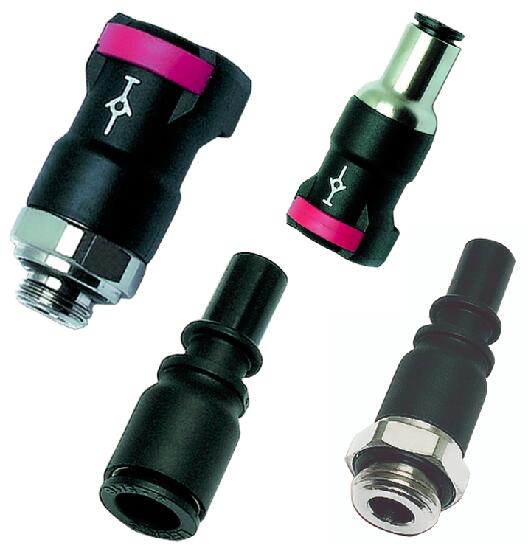

Pneumatic Snap Fittings 型號
| Part |
Shape |
Gripping Ring |
Sleeve Material |
Diameter Nominal (DN) |
Connection 1 Thread Style |
Connection 1 Thread Size (metric) |
Connection 2 Tube O.D. (mm) |
| 7921 05 10 |
Snap fitting body straight male |
na |
TECHNICAL POLYMER |
5 |
BSPP |
G1/8 |
na |
| 7921 05 13 |
Snap fitting body straight male |
na |
TECHNICAL POLYMER |
5 |
BSPP |
G1/4 |
na |
| 7921 07 13 |
Snap fitting body straight male |
na |
TECHNICAL POLYMER |
7,3 |
BSPP |
G1/4 |
na |
| 7921 07 17 |
Snap fitting body straight male |
na |
TECHNICAL POLYMER |
7,3 |
BSPP |
G3/8 |
na |
| 7926 05 06 |
Snap fitting body straight |
STAINLESS STEEL |
TECHNICAL POLYMER |
5 |
na |
na |
6 |
| 7926 05 08 |
Snap fitting body straight |
STAINLESS STEEL |
TECHNICAL POLYMER |
5 |
na |
na |
8 |
| 7926 07 10 |
Snap fitting body straight |
STAINLESS STEEL |
TECHNICAL POLYMER |
7,3 |
na |
na |
10 |
| 7960 05 06 |
Snap fitting straight probe |
STAINLESS STEEL |
na |
5 |
na |
na |
6 |
| 7960 05 08 |
Snap fitting straight probe |
STAINLESS STEEL |
na |
5 |
na |
na |
8 |
| 7960 07 10 |
Snap fitting straight probe |
STAINLESS STEEL |
na |
7,3 |
na |
na |
10 |
| 7961 05 10 |
Snap fitting straight probe male |
na |
na |
5 |
BSPP |
G1/8 |
na |
| 7961 05 13 |
Snap fitting straight probe male |
na |
na |
5 |
BSPP |
G1/4 |
na |
| 7961 07 13 |
Snap fitting straight probe male |
na |
na |
7,3 |
BSPP |
G1/4 |
na |
| 7961 07 17 |
Snap fitting straight probe male |
na |
na |
7,3 |
BSPP |
G3/8 |
na |
|
